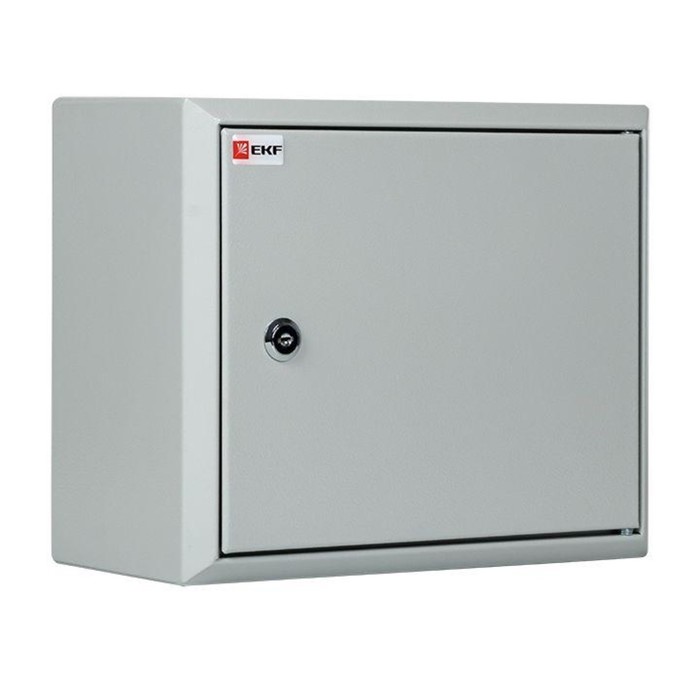

Shield EKF MB22-00, IP31

Purpose of the

shields with the mounting panel of the SMP series (EKF production) are designed for the manufacture of various electrical panels, control panels and shields of automation of technological processes, installation of power equipment.

Scope

are used for electrical installation in residential, administrative, retail and industrial buildings.

The principle of action

shields of the series of the SCMP are made of high -quality steel method. A galvanized mounting panel, 1.5 mm thick, is removable. This solution greatly facilitates the installation of power electrical equipment. Allows to fix the massive elements of the equipment. Reliable protection against corrosion and the aesthetics of the surface is achieved by phosphotics and subsequent application of powder paint RAL 7035.

The standard configuration contains:

1. Galled installation panel for installing power equipment;

2. The grounding leash fixed to a diameter of 6 mm;

3. The reinforced castle is trihedral, with two keys;

4. Reinforced loops;

5. Electric safety signs with a marking table;

6. Quality passport.
