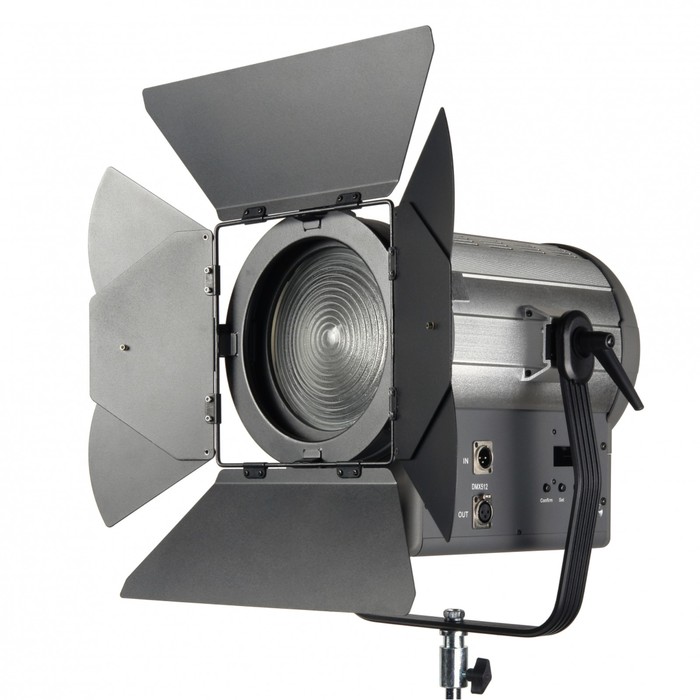

Studios Light Greenbean Fresnel 300 LED X3 DMX

The lighting lighting with the Freen Freen FresNel 300 LED X3 DMX Linze allows you to get a directed uniform light flow with the ability to focus, electronic power control and DMX control. It is used as a source of the main drawing and contour light, light lighting, the creation of glare, the emphasis of parts in studio video, shooting films or TV programs. The high value of the color rendering coefficient (CRI> 93) allows you to use these illuminators in professional video shooting, film production and stage lighting.

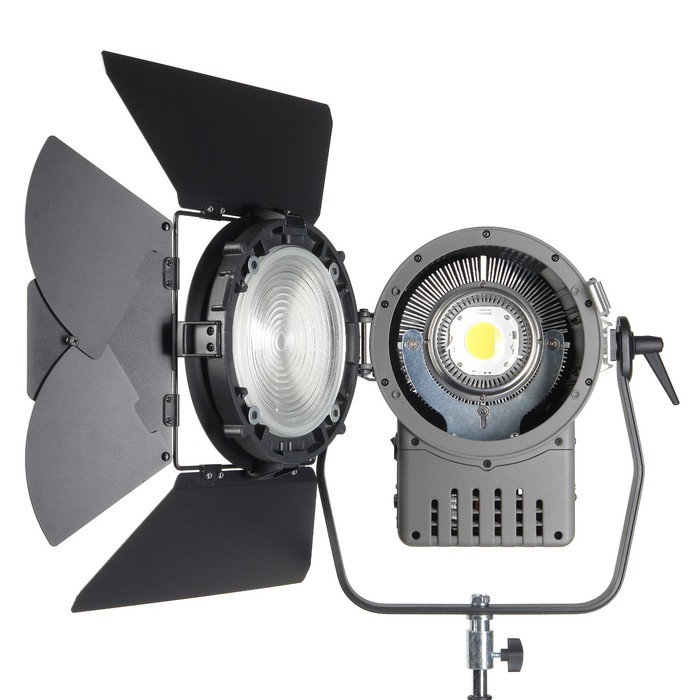

Optical scheme with a frane lens and condenser

A feature of this model is a new optical scheme, an additional asperic-condenser lens is installed on the LED, which directs Frelene lens to 97% of the light flux emergency and increases the efficiency of the lighter. Also, the clinza lens protects the LED from dirt, dust and moisture, which helps to increase the life of the device. Frenel's lens provides refractive and concentration of light flow.

DMX512 technology

This lighting device supports DMX control technology. The main advantage of light control by DMX technology is the possibility of programming any complexity of lighting scenarios and signal transmission over long distances (up to 100 m) without power loss. The illuminator is equipped with a DMX with a decoder, the channel address is set by the buttons on the control panel and is displayed on the LCD display.

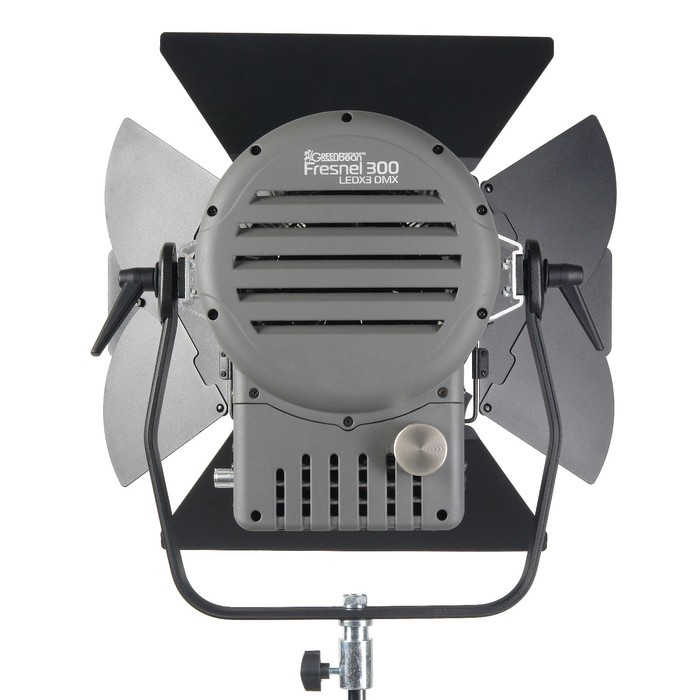

Focusing light bundle

At the back of the device, there is a handle of focusing light bundle, which moves the LED with an aspfer lens along the optical axis of the Frell lens, which regulates the width of the light beam. The exact focus from the position of the scattered beam ("flood") to the position of the narrow beam ("spot") - 12 full speed of the handle.

5 dynamic light modes

GreenBean Fresnel 300 LED X3 DMX illumination has 5 pre -installed dynamic light modes

• SOS - light imitation of the SOS
• Watch TV signal - imitation of the glow of the television screen
• Lightning - imitation of lightning flash
• Photo - imitation of the outbreak of the camera
• flash - a light flash with an adjustable flicker speed.

Intellectual cooling system

LED illuminators, unlike halogen, do not radiate excessive thermal energy. The absence of direct heat significantly reduces the expenses of the studio for air conditioning and allows you to reduce the temperature of the working environment.

The illuminator has a built -in intelligent protection against overheating, the LED will automatically turn off when the internal temperature exceeds the maximum value, while the digital display and the fan will continue to work. The LED will turn on automatically when its temperature decreases.

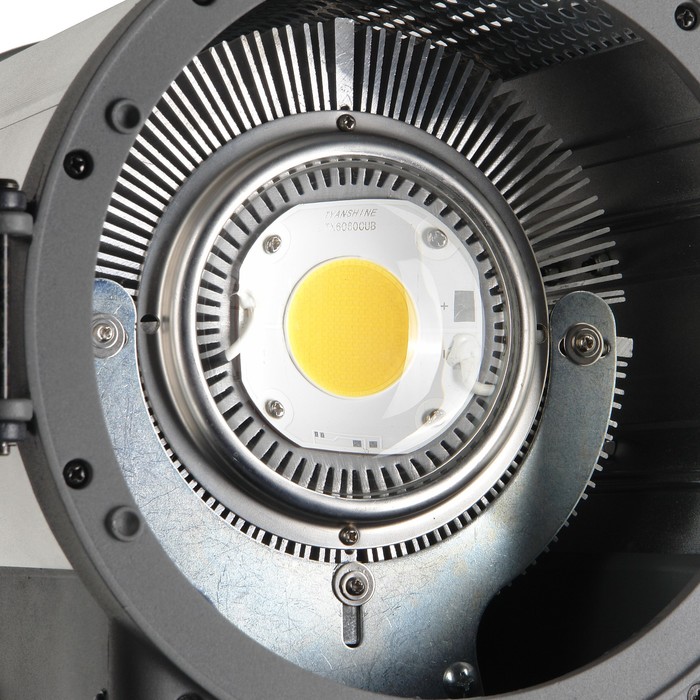

LED power 300 W

The light source is a 300 W LED (analogue of the halogen 3000 W). In the Fresnel Led X3 DMX series, a new LED is installed with a color temperature of 5600K ± 200K and a high CRI color transmission index, which provides the correct transmission of color shades and brings this source in its properties to a natural light source. LED illuminators are reliable and a long lamp service. Electricity saving is up to 90%.

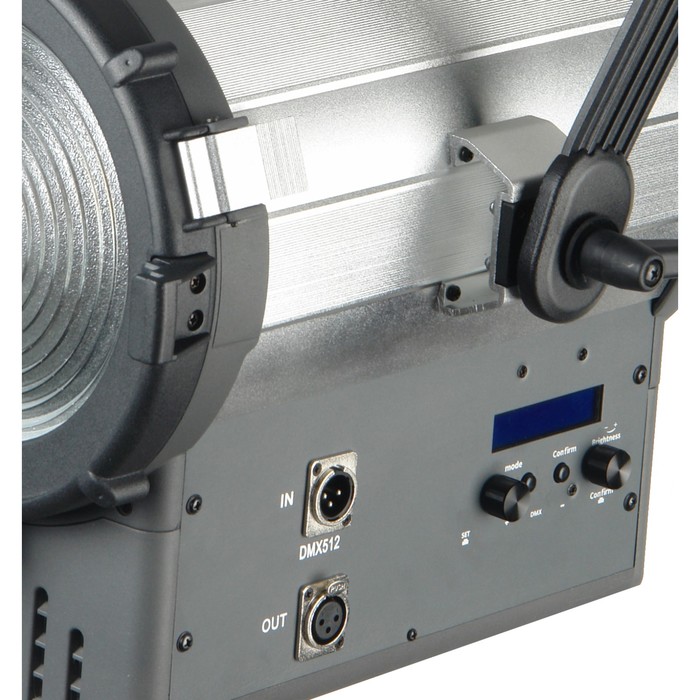

LCD display and digital control

The current power value and the DMX channel number are displayed on the LCD display. The device allows you to smoothly adjust brightness from 0 to 100% (power indication from 0 to 255) without color distortion. The digital display will help to accurately set the lighter power and quickly return to the necessary settings.

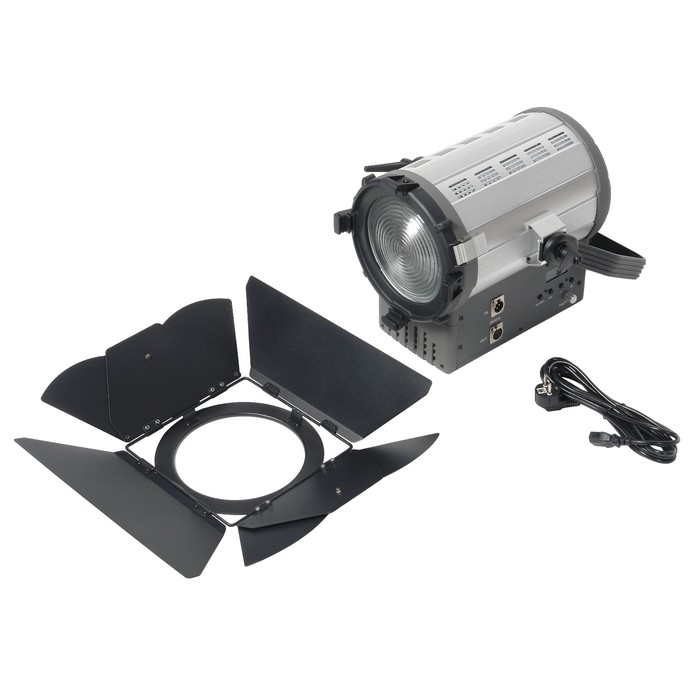

Metal curtains

Right -open metal eight -packed curtains will help limit the light beam, this will help to get light accent on the object of shooting or avoid unwanted lighting up the camera lens.

durable aluminum corps

Thanks to the use of a strong aluminum case, the illuminator is resistant to mechanical stress. Special ventilation holes are used for effective convection cooling. The bracket is also made of light and durable aluminum alloy. The design of the bracket allows you to suspend the lighter to mounting farms, panoraming and tilt it, including vertically down.
