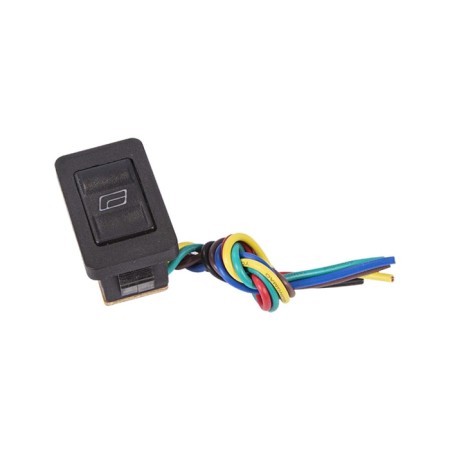

Switch (windshield) key 12V 20A (6C) (ON) -Off- (ON) black with backlight and wire
Switch (windows) keyboard 12V 20A (6C) (ON) -OFF- (ON) Black with backlight and wire is designed to switch electrical circuits with a voltage of 12V. Such a keyboards are used as components of vehicles of vehicle electrical equipment (in cars and trucks, buses and other vehicles). The windshield key has three positions and backlight (to facilitate the search in the absence of lighting). The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8mm to 3mm. The key is connected using wires (15cm), by twisting or soldering, or using connecting terminals.
| Characteristics | |
| A country | China |
| Color | Black |
| Degree of protection | IP30 |
| Fixation | No |
| Form | Rectangular |
| Indication | Yes |
| Nominal current, and | 20 |
| Operation temperature, ° C. | From -25 to 85 ° C |
| Tension, c | 12 |
| The number of keys | 1 |
| Type of voltage | DC |
