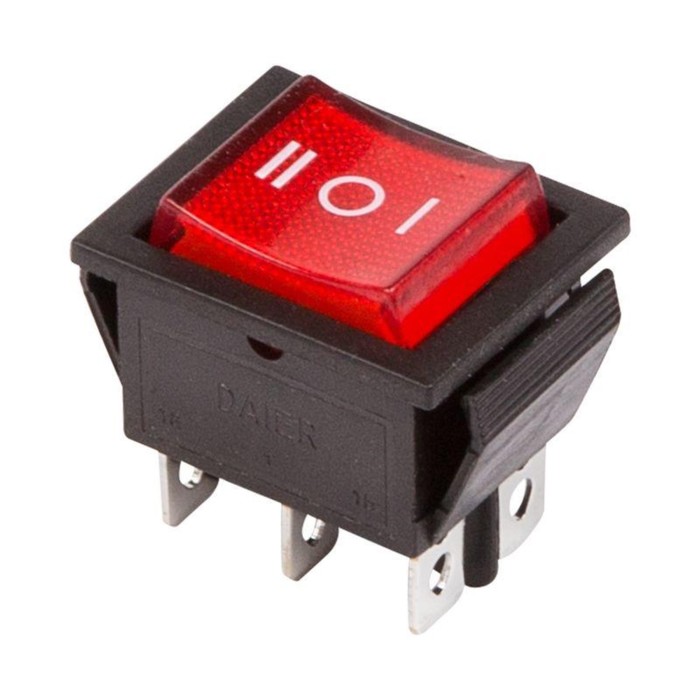

The Klavic switch Rexant 36-2390, 250 V, 15 A, On-OFF-ON, 6C, Red, with backlight

The keyboard is 250V 15A (6C) On -OFF - ON Red with backlight and neutral is designed to switch electrical alternating currents with a voltage up to 250V. The keyboards (rocker) switches are used as components of various electrical equipment (in network filters and extension cords, audio equipment, power supply, electrical installations in various industries, cars, and many other places). Such a keyboard switch has three positions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Contact connection is carried out by a flat terminal of 6.6 mm, or using soldering.

The main characteristics

- the nominal voltage: 250v.

- maximum voltage: 1500vs no more than 1 minute.

- Nominal current: 15a (250vac).

- Contact resistance: no more than 35 MOM.

- Type of switching: on-off- on.

- number of contact groups: 2.

- the number of contacts in the contact group: 3.

- Fixation of the provisions: yes.

- indicator of switching positions: red.

- resource: 10,000 cycles.
