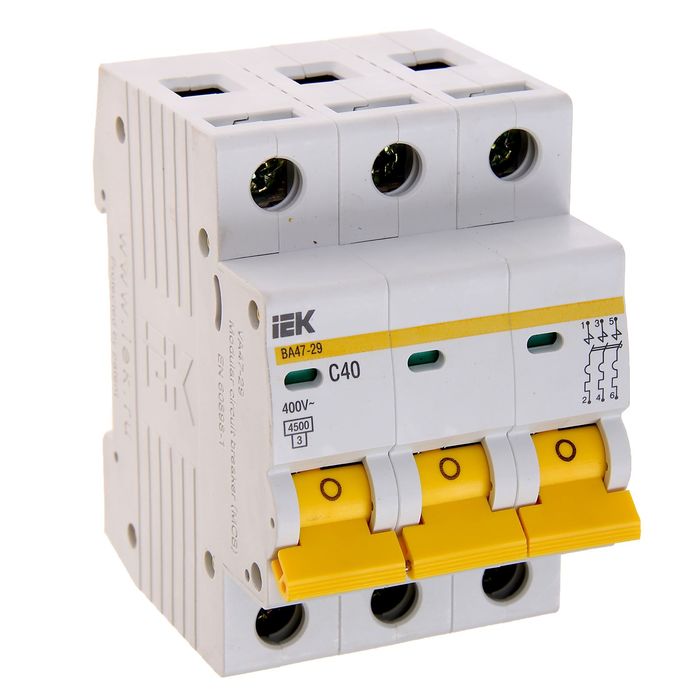

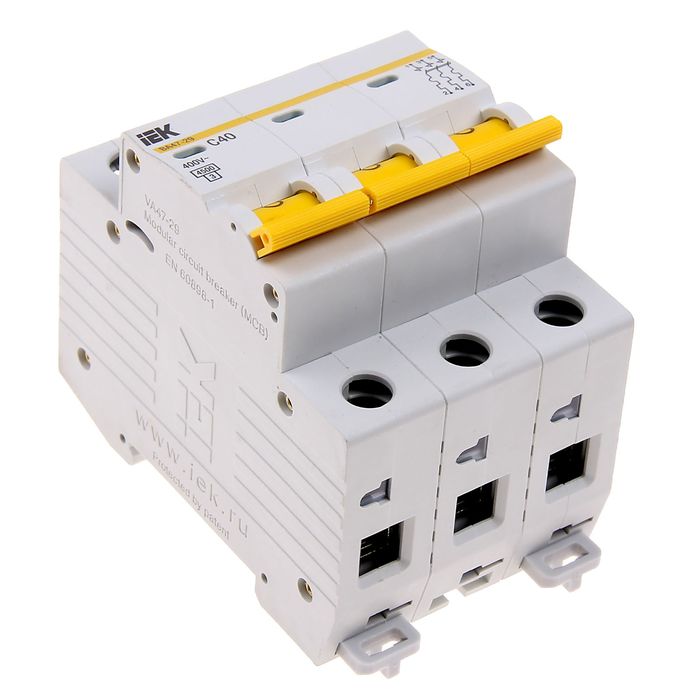

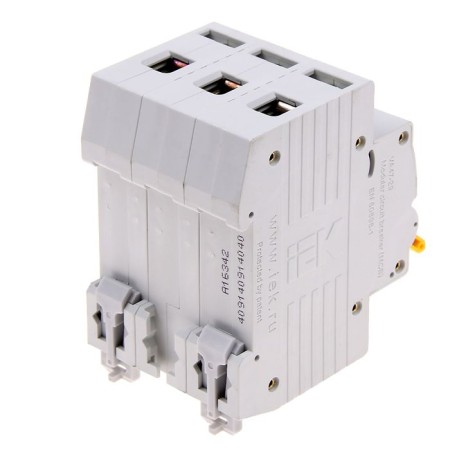

The switch is automatic, three -pole, 40a
$28.81
In Stock
Characteristics
A country
China
Disabled ability
4.5 ka
Method of installation
On a DIN-rack
Nominal current, and
40
Rated voltage
400 century
- The number of power poles: 3.
- Nominal voltage, B: 400.
- Characterization of email. Magnetic release: C.
- Nominal disconnecting ability, ka (AC) (IEC/EN 60898): 4.5.
- Nominal current, A: 40. < LI> Type of product: automatic switch in modular version.
- Execution: stationary.
- Method of installation: din-rake.
- Number of modules DIN: 3. < /li>
- Degree: IP20.
- Height, mm: 80.
- Width, mm: 54.
- depth, mm: 75.
- type of release: thermal, electromagnetic.
- genus: variable.
- Name (type): VA47-29 3P 4.5KA X.
- Scope: industrial and domestic.
- Section name: Curve of the J.
- Name in the NKU: VA47-29 3R 4.5K -ka p.
- Normative document: GOST R 50345-99, TU 2000 Agio. 641.235.276.
- The presence of a thermal unit: Yes.
- The presence of electromagnetic LEADER: Yes.
- The presence of an electronic processor: not. >
- Electrodynamic resistance ICM, KA: 4.5.
- Active resistance of the pole R, MOM: 7.56. /C/d...).
- The factor of guaranteed non -work, O.E.: 0.8.
- The guaranteed operation coefficient, O.E.: 1.2.
- Availability of current times for TM time (for function i2T): NO.
- Method of setting the settings of instant lifting: by multiplicity (KI).
- The presence of explosion protection: without explosion protection.
- maximum section of the connected cable, mm 2: 25.
- mass, kg: 0.3.
- type of installation rail: 27x15.
- Modular : yes.
- Climate performance: UHL4.
- The elaboration time in the KZ zone TM, C: 0.1. and group chains.
| Characteristics | |
| A country | China |
| Disabled ability | 4.5 ka |
| Method of installation | On a DIN-rack |
| Nominal current, and | 40 |
| Rated voltage | 400 century |
| The characteristic of the operation | C |
| The number of poles | 3 |
| Type of protection device | Circuit breaker |
