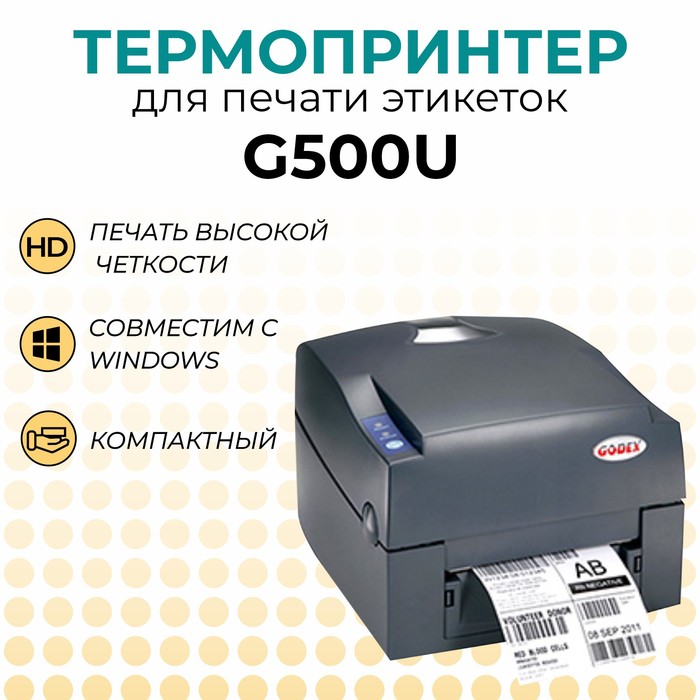

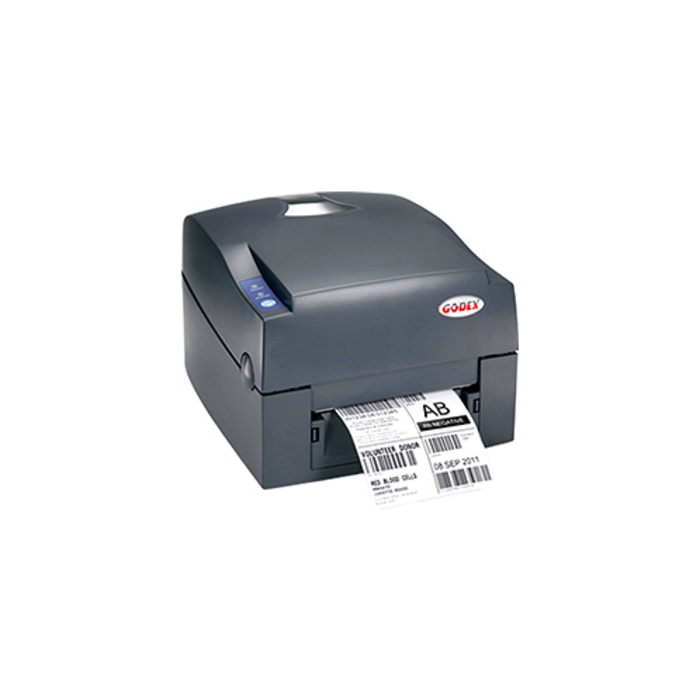

Thermalrotransfer printer G500U, 203 DPI, USB

The characteristics of the power supply (charger) Automobile voltage 100/240VAC, 50/60 Hz, 24V/2.5a

Operation Conditions +5 ° C ~ 40 ° C

Conditions conditions storage -20 ° C ~ 50 ° C

moisture during operation 30-85% (without condensation)

humidity in storage of 10-90% (without condensation)

The hull shockproof plastic

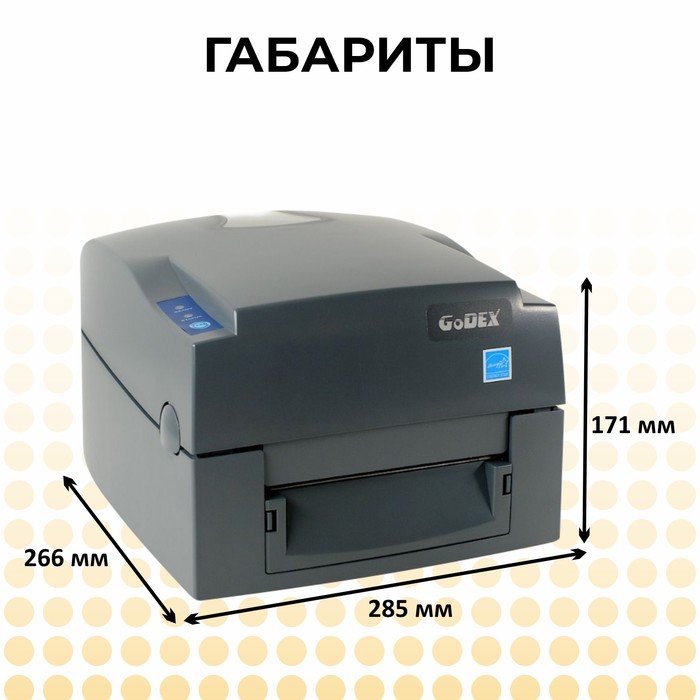

dimensions Length: 285mm; Height: 171mm; Width: 226mm

The color is light-black

Warranty period of 3 years

security standards FCC Class a

CPU ARM7 (166 MHz)

Print length min 4mm (0.16 ”) ~ max. 1727mm (68 ”)

Indication, control status;

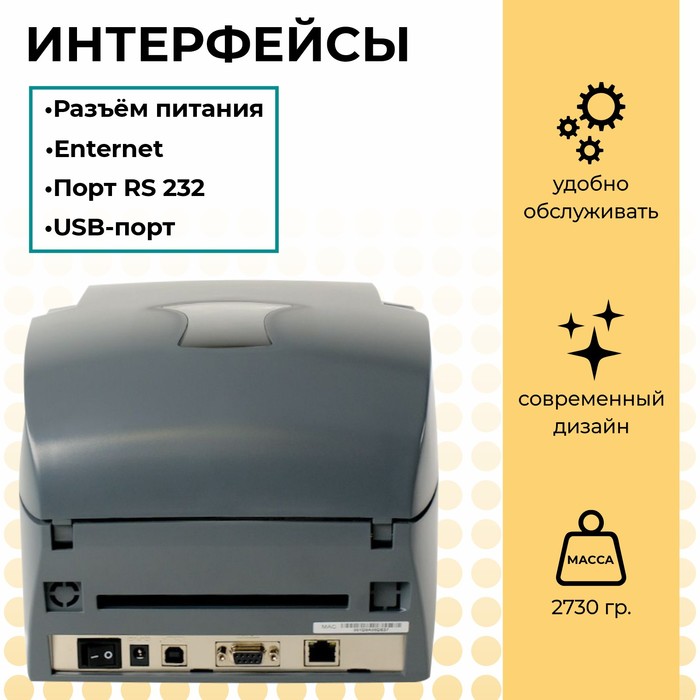

interfaces RS232

Built -in memory 8MB Flash

Press permission 203 dpi (8 DOT/MM)

Print speed 5 IPS (12.7 cm/s)

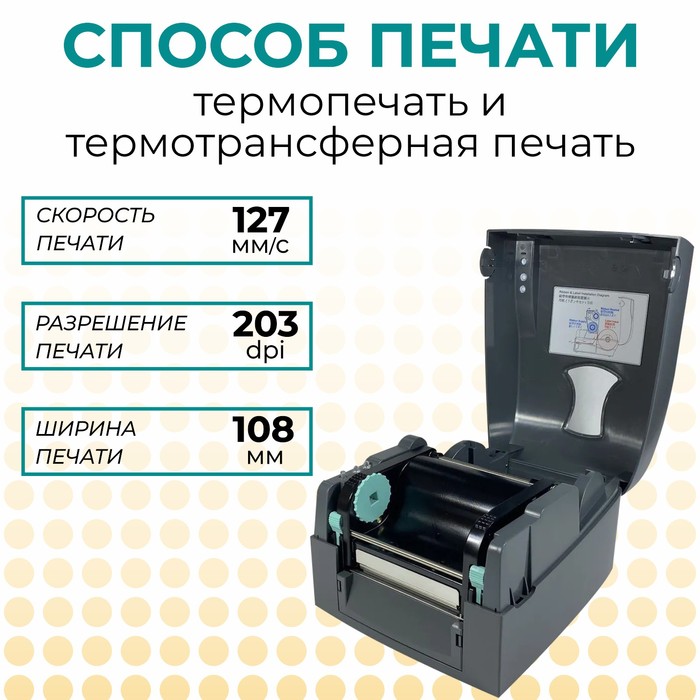

the printing method of thermo or thermo-transferial

maximum print width 108 mm (4.25 " )

programming language GEPL

the touch of the edge of the label moved the sensor to reflect;

material for printing paper, fabric, polymer media, cardboard and other media in rolls ( Black label etiquette, labels with black label, labels with a hole, continuous ribbon)

thermaline ribbon (maximum length) 300 meters (981 \ ")"

software powerful free free free GOLABEL editor (RUS) for creating and printing labels for Windows (only for EZPL), DLL and drivers for various versions of Windows (NT 4.0, 2000, XP, Vista, Win7), component and DLL for 1C 7.7/8.0/8.1/8.2 To print labels on EZPL printers. All software is included in the set of delivery.

built -in fonts raster fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16x26, OCR A & B with the possibility of rotation by 90 °, 180 °, 270 °, with 8 times changing horizontally and vertically in size. Scalable barn with the ability to turn 90 °, 180 °, 270 °.

loaded fonts is possible to load any raster or scalable fonts, including Russian Windows Bit-Map fonts (8 orientation angles) and Russians True True True TYPE Fonts Ver. 2.xx (4 orientation angles). Fonts can be rotated by 90 °, 180 °, 270 °.

Image processing loading into a printer of graphic files type BMP, PCX. Supporting software downloading of type: ICO, WMF, JPG, JPEG, EMF

supported barcodes 1d barcodes: Code39, Code93, Code128 (Group A, B, C), UCC/EAN-128 K -Mart, UCC/EAN128, UPC A/E (C supplements 2 out of 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8/13 (C complement 2 of 5), Codabar, Post Net EAN128, DUN14, HIBC, MSI, arbitrary weight, Telepen, Pressey, ITF14, FIM, China Postal Code, RPS128, GS1 Databar. 2D штрих коды: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, MicroQR code, Aztec code.

Комплектация Блок питания, шнур блока питания, USB интерфейсный кабель, кабель RS232 (для варианта G5x0/US UES), LPT cable (for the G5X0/UP option), an axis for a coloring tape (for a sleeve with a diameter of 1 ”), a sleeve of a roll holder with labels, 2 restrictive plates for a roll with labels, instructions for a quick start

Thermalrinospheric tape (used types) WAX, Wax/Resin, Resin

Thermaline tape (width) min.30 mm (1.18 \ ") ~ max. 110 mm (4.33") "

thermaline tape (sleeve diameter) 25.4 mm (1 \ ")"

lane etiquette (width with a substrate) 25.4mm (1 \ ") ~ 118mm (4.64 \" "") "

etiquette of the tape (thickness) min.06 mm (0.003") ~ max.0.25 mm (0.01 ")

etiquette of the tape (max. Diameter of the roll) 127 mm (5 \ ")"

etiquette of the tape (diameter of the sleeve) 25.4 mm, 38.1 mm, 76.2 mm (1 ", 1.5", 3 ”)

possible options and extensions of the extension of the etiquette separator, cutting (rotor), external holder of large rolls up to 250mm (10 \") "

support code pages of characters Codepage: 437, 850 851, 852, 855, 857, 860, 861, 862, 863,865, 866, 869, 737. Windows: 1250,1251,1252,1253,1254,1255, 1257. Unicode: (UTF8, UTF16)

The ability to expand memory is the ability to expand memory

the resource of the print head (km) 50
