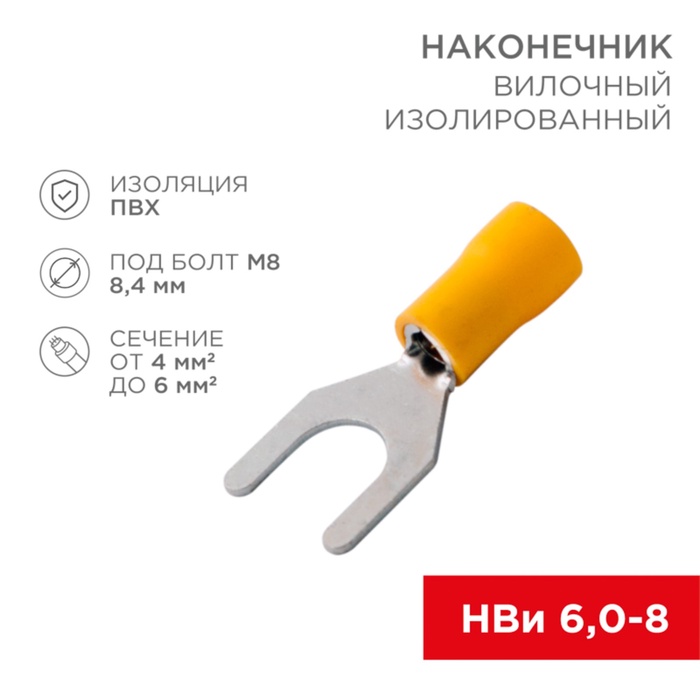

Tip isolated 8.4 mm 4-6 mm² (NVI 6.0-8) Yellow Rexant
The isolated insulated tip is designed to connect electrical equipment. Allows you to disconnect the connection without completely unscrewing the fastener, just weakening the screw fixation.
The tip is used to finish multi -core copper wires when installing mobile electrical contact connections or in other places where the reliability of the connection is important.
The use of the tip accelerates electrical work and allows you to repeatedly disconnect and connect the wires to the equipment.
The tip consists of two components: a metal connector (fork) and a protective insulator that closes the place of compression.
The metal connector is made of copper with surface electrolytic poking, therefore it can be used in conditions of high humidity. The terminal of the terminal is made of PVC.
squeezing is carried out by special press rolls on top of the protective insulator (ht-301 h art. 12-3014, 12-3014-4; ht-301 n art. 12-3116; ht -301 w art

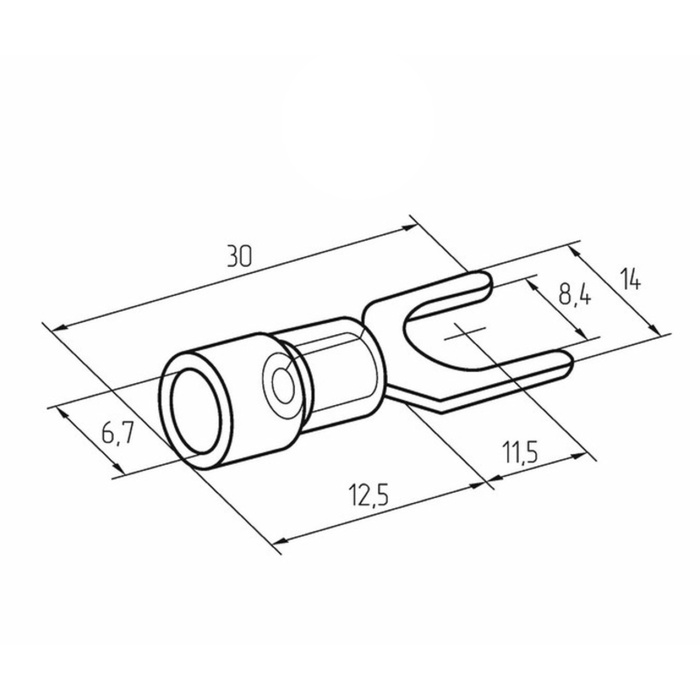

| Characteristics | |
| A country | China |
| Height, see | 1.4 |
| Length, see | 3 |
| Material | Copper |
| Operation temperature, ° C. | From -40 to 80 ° C |
| Section, mm | 4 - 6 |
| Tip of the tip | Wheel |
| Width, see | 1.4 |
