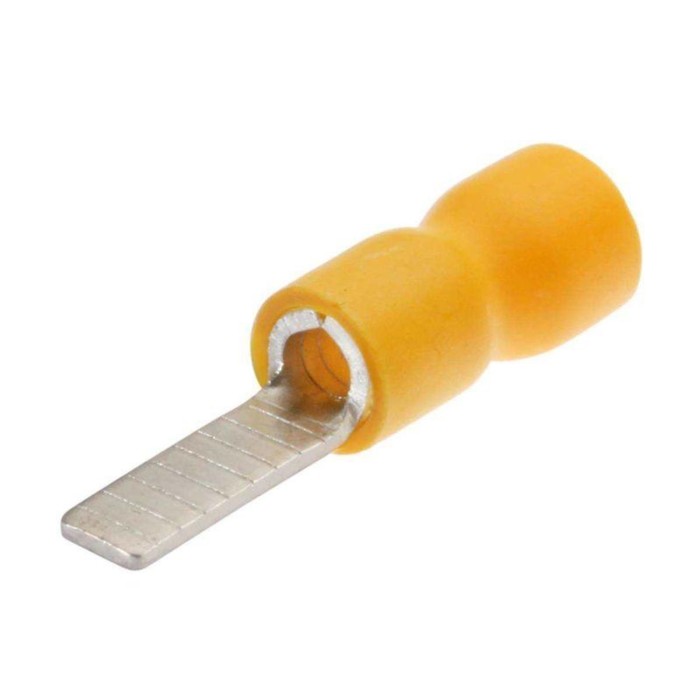

Tip of Stiftova NSHPI 6.0-14 kW 66657,

- designed for giving a pressure testing of multi -wire copper wires and subsequent fasteners of the tips to the terminals of electrical equipment

- multidiapasic alternative to the sleeve tips

- only 3 sizes of the pin tips are replaced by 9 sizes of bushings

- isolation material: self -replacing PVC. Class V -0 according to UL94

- heat resistance of insulation: 75 ° C

- Tip material: copper of the brand M1

- coating of the tip: electrolytic puddle

- maximum voltage: 690 V

Design features:

- Easy Entry execution: The vinyl cuff is formed in the form of a bell to facilitate the installation of multi -core copper veins

- a wagoning butt on the tube contact part of the tips

- the transverse cuts on the inner surface of the tube part of the tips increase the mechanical strength of the connection with the residential

extended multi -sized pressure settings

Stressing the conductor over the insulating cuff
