Universal adapter ash.2023PK with rolling bearings, d = 20/23 mm T -sh-2023-PK

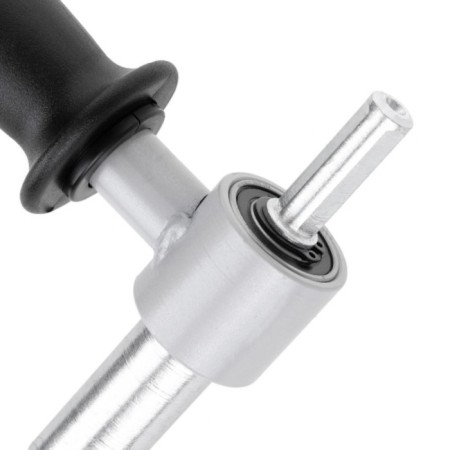

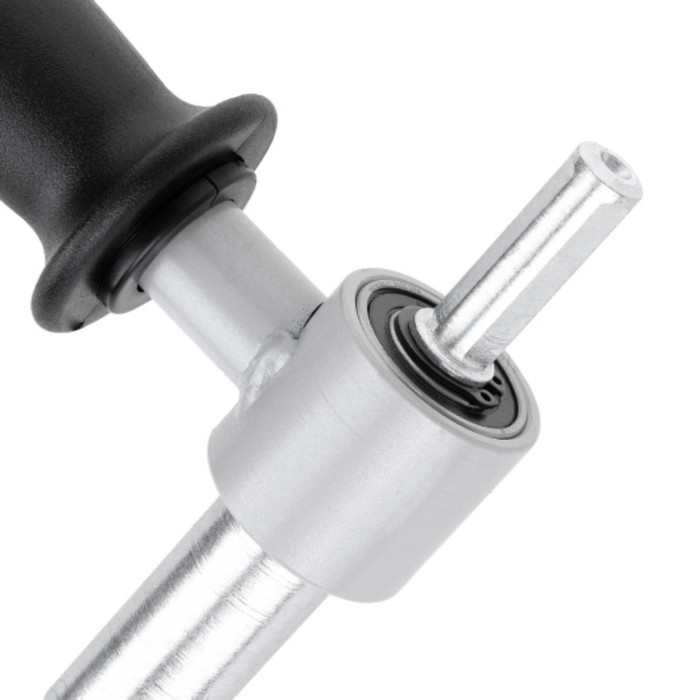

The universal adapter “ASh.2023.pk” (with rolling bearings) is designed to use a battery screwdriver for baking holes in ice when fishing. Thanks to the two rolling bearings, the adapter resource increases and the process of shaking the metal decreases. With the help of a scorch, this adapter and a screw can be easily drilled with holes, spending a minimum of effort and time on this.

can be attached directly to the screw or with the help of an extension cord (option). When using the UA-400.20 adapter extension cord (option), this adapter can be attached to the racers of the ice billets Tonar, Helios and Helios Long.

A convenient warm handle is designed to remove a hole from the hole. The improved two -stage design of the adapter output shaft has diameters of 20 and 22.8 mm (the changed dimensions allowed to minimize the gaps in the shaft/sleeve in the screw, adapter and extension cords). 12 mm) and a restrictive bourt for protection against falling out when weakening the cartridge tightening. The adapter shank is fixed in the cartridge of the screwdriver. The planting diameter of the screwdriver cartridge is 1/2 inch (13 mm). It is permissible to operate the adapter with a screwdriver with a voltage of 18V and a maximum torque of not more than 120 nm.

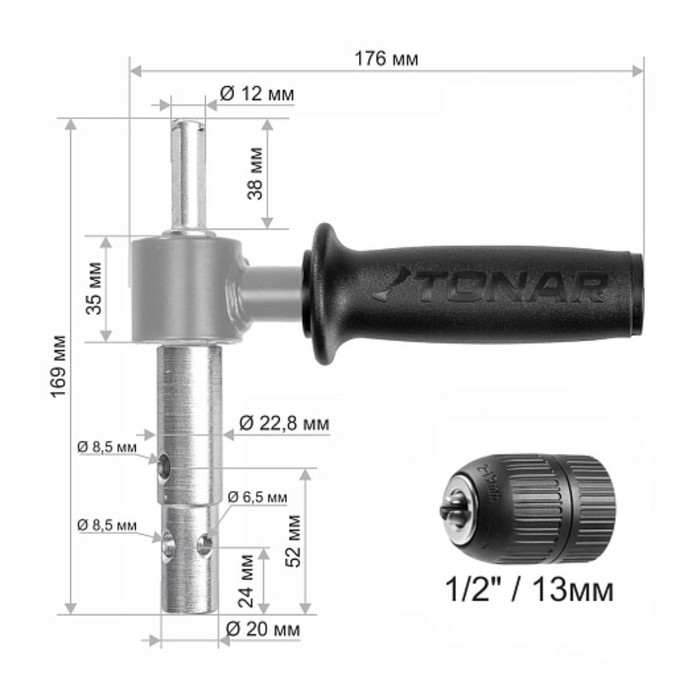

characteristics:

• Gabarit dimensions: 176 x 169 x 50 mm. (On adapters released from 01.30.2023 g, the length of the handle frame is increased. The total length of the adapter has become 209 mm).
• The diameters of the output shaft of the adapter: 20/22.8 mm.
• The diameter of the adapter shank: 12.0 mm.
• Landing diameter of the screwdriver cartridge: 1/2 inch (maximum clip diameter - 13 mm).
• The diameter of the hole for fixing the barashop: 6 , 5/8.5 mm.
• rolling bearing: 2 pcs.
• Product weight: 0.6 (± 0.1) kg.
• Material Saar and adapter case: steel.
• Hand: plastic with a rubberized coating.

The adapter can be used:

• for the ice block tonar, Helios with an extension cord of the UA-400.20 adapter;
• for the ice discovery tornado-m2, Buran with an extension cord UA-800.20/Ush-500.20 (or directly to the screw);
• for the Motoshtorm SHRO USh-250.20/ Ush-400.20/ Ushm-400.20 Telescopic (or directly to the screw);
• for icoburov iceberg with an extension cos-25500.23/ Usha-400.23 Telescopic (or directly to the screw).

To fix the adapter, it is necessary to use:

Complete:
