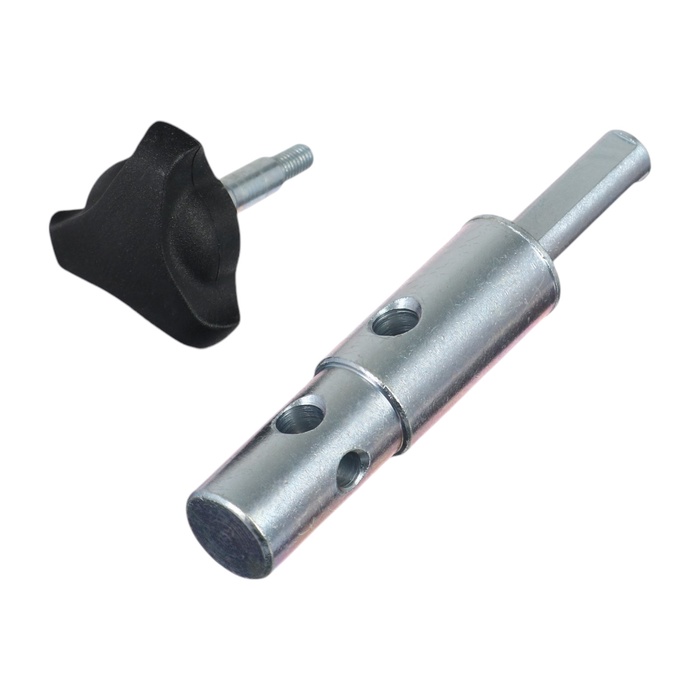

Universal adapter for screwdriver ash.2023, D output shaft 20/23 mm, T-G2023

The universal adapter ASh.2023 is suitable for screws for the screws of the ice discovers Tornado-M2, Buran (Buran), Iceberg (Iceberg), as well as the Motoshtorm (Motostorm) and Electroshtorm (electricushtorm). When using an extension cord UA-400.20 (*option), the adapter can be attached to the screws of the ice-block tonar, Helios, Helios Long.

Using a scorch, this adapter and a screw can be easily drilled with holes, spending a minimum of effort and time.

The improved two -stage design of the output shaft of the adapter has diameters of 20 and 22.8 mm (the changed dimensions made it possible to minimize the gaps in the shaft connection/sleeve in the screw, adapter and extension cords).

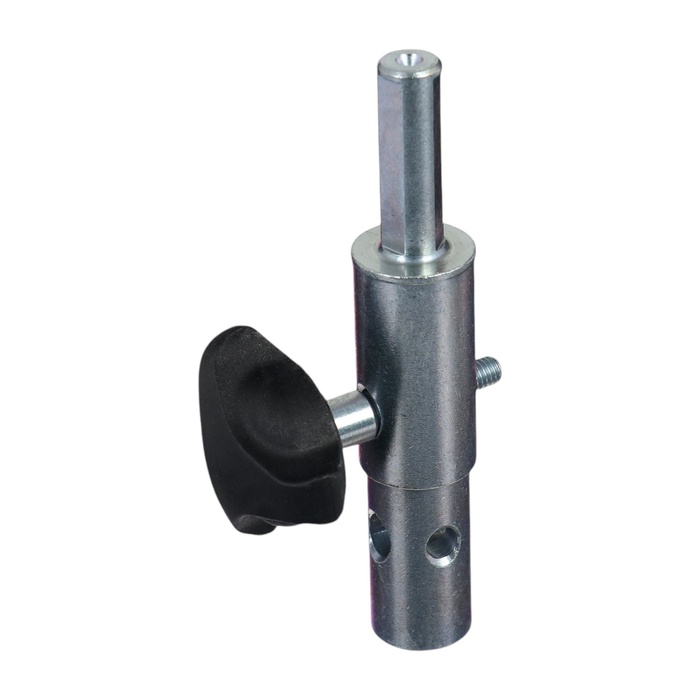

Sighter of the adapter It has a reinforced trihedral working surface (the diameter of the shank 12 mm) and the restrictive croching to protect against falling when the cartridge tightening is weakened. The adapter shank is fixed in the cartridge of the screwdriver. The planting diameter of the screwdriver cartridge is 1/2 inch (13 mm). It is permissible to operate the adapter with a screwdriver with a voltage of 18V and a maximum torque of not more than 120 nm.

We recommend that you make a limiter for an adapter, since without it is a very high risk of drowning a screw in the hole. The manufacturer is not responsible for the loss of the screw in this case.

The characteristics:

• Length: 122 mm.
• The diameters of the output shaft of the adapter: 20/22 , 8 mm.
• The diameter of the adapter shank: 12.0 mm.
• The planting diameter of the screwdriver of the screwdriver: 1/2 inch (maximum clip diameter - 13 mm).
< Li> The diameter of the holes for fixing the barashka screw: 6.5/8.5 mm.
• Product weight: 0.25 (± 0.05) kg.
• Material: Steel.

The adapter can be used:

• for the ice block tonar, Helios with an extension cord of the UA-400.20 adapter; , BURAN with an extension cord UA-800.20 / Ush-500.20 (or directly to the screw);
• for Motoshtorm screws with the Ush-400.20.20.20 / Ushm-400.20 extension cord, telescopic (or directly to the screw); /li>
• for icoburgov iceberg with an extension cush-2550.23/Ush-400.23/Usha-400.23 telescopic (or directly to the screw).

To fix the adapter, you must use:

• 1. The Barashka screw with M6 threads (special) (hole 8.5 mm (upper)) to join the icy workers iceberg and electroshtorm checkers;
• 2. The Barashka screw with a thread M6 (a hole of 6.5 mm) to join the Thornado-M2, Buran and to the UA-400.20 extension cord for ice shoes for the ice block tonar and Helios;
• 3. The Barashka screw with a thread M8 (a hole of 8.5mm (lower)) for joining the Motoshtorm 130-180R motor boots and a hole of 8.5 mm (upper) for MotostHorm 200r.
• 4. Scarlet Barashka with M6 thread (special) (8.5 mm Lower hole) to join the screws Electroshtorm 110-180r.

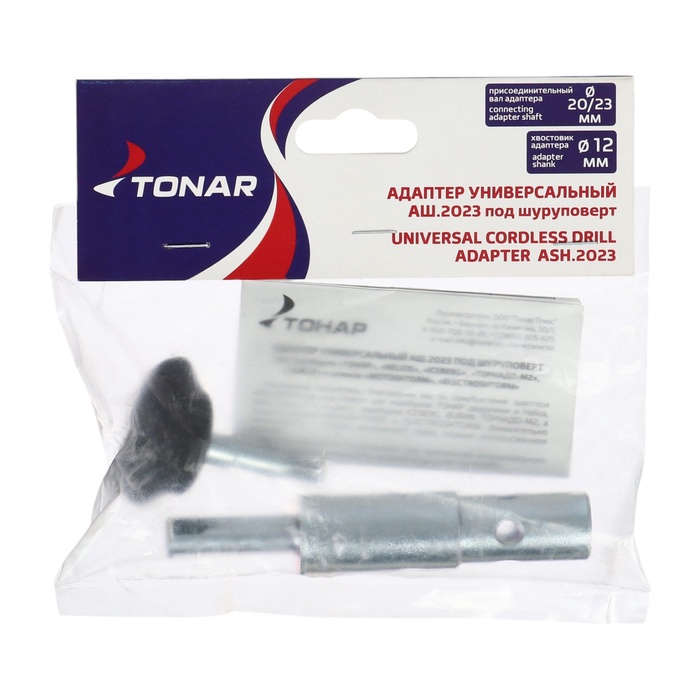

equipment:

• 1. Adapter - 1 pc.
• 2. Brand Barashka M6 (special) - 1 pc.
