Universal reinforced adapter Ash.2023.PS with brass bushings, D = 20/23 mm, T-YH-2023-PS

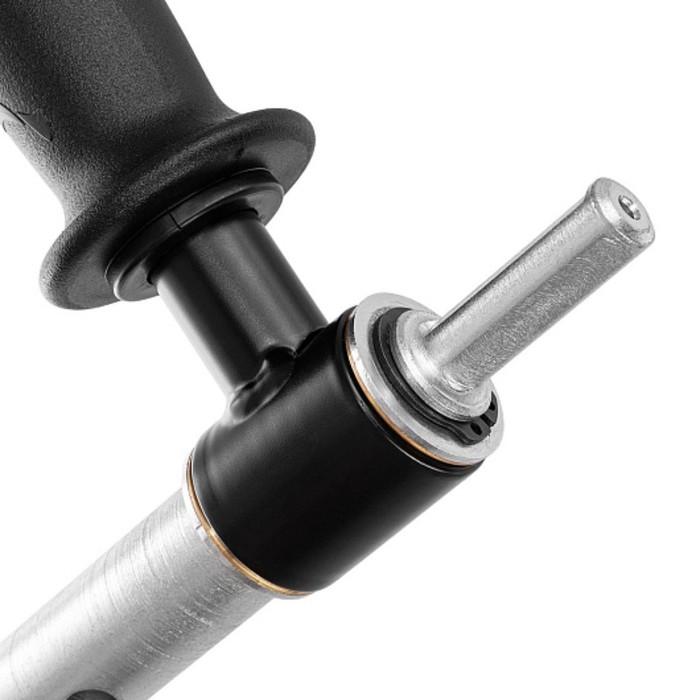

The universal adapter “ASh.2023.PS” (reinforced, with brass bushings) is designed to use a battery screwdriver for racing holes in ice when fishing. Brass bushings play the role of sliding bearings, they are more wear -resistant and durable compared to rolling bearings, have increased anti -corrosion properties. They take on the entire friction force and protect the adapter from wear, maximizing the service life of the product under high loads. Brass bushings reliably protect from moisture from entering the adapter case, excluding the process of corroding and biting the metal. They have high antifriction parameters and operate in a wide range of temperatures. With the help of a scuffle, this adapter and a screw can be easily drilled with holes, spending a minimum of effort and time on this.

The adapter has a convenient warm handle, which is designed to remove the screw from the hole. The improved two -stage design of the adapter output shaft has diameters of 20 and 22.8 mm (the changed dimensions allowed to minimize the gaps in the shaft/sleeve in the screw, the adapter and extension cords). 12 mm) and a restrictive bourt for protection against falling out when weakening the cartridge tightening. The adapter shank is fixed in the cartridge of the screwdriver. The planting diameter of the screwdriver cartridge is 1/2 inch (13 mm). It is permissible to operate the adapter with a screwdriver with a voltage of 18V and a maximum torque of not more than 120 nm.

characteristics:

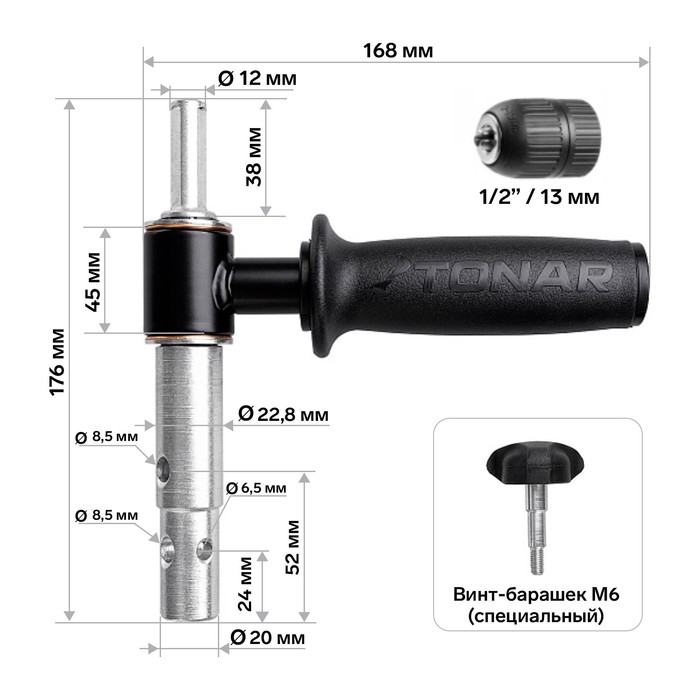

• Gabarit dimensions: 168 x 176 x 50 mm.

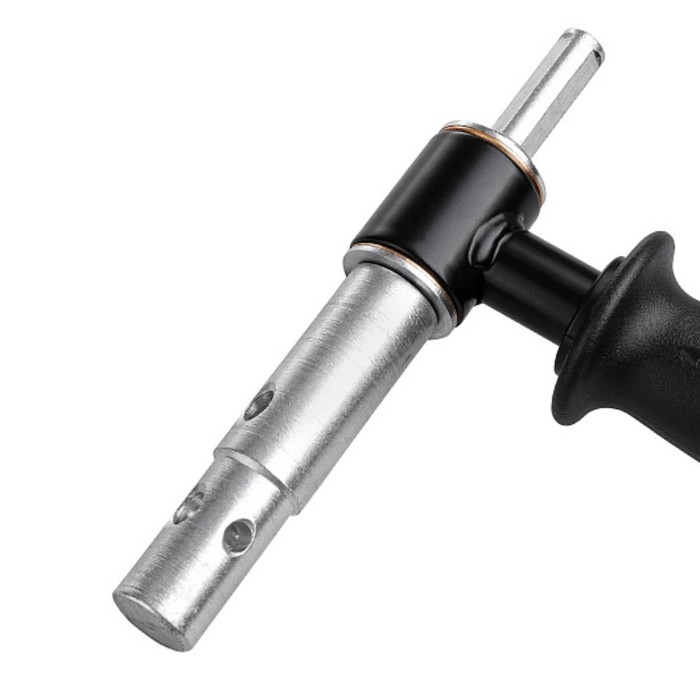

The diameters of the step -shaped adapter shaft: 20.0/22.8 mm.
• The diameter of the adapter shank: 12.0 mm.
• Landing diameter of the screwdriver of the screwdriver: 1/2 inch (The maximum clip diameter is 13 mm).
• The diameters of the hole for fixing the rifle -bar: 6.5/8.5 mm.
• Brass sleeve (sliding bearing): 2 pcs.
• Product weight: 0.7 ± 0.1 kg.
• Material: steel. UL>

  adapter can be used:

  • for the ice block tonar, Helios with an extension cord of the UA-400.20 adapter;
  • for the icyoburov Tornado-M2, Buran with the extension cord UA-800.20.20.20.20.20 / USh-500.20 (or directly to the screw);
  • for Motoshtorm screws with the Ush-250.20/ Ush-400.20/ Ushm-400.20 extension cord (or directly to the screw);
  • for ICEBERG ICEBERG with an extension cushor of USH-250.23/Ush-400.23/Usha-400.23 telescopic (or directly to the screw).

  To fix the adapter, it is necessary to use:

• vint-barack with a thread M6 (special) (a hole of 8.5 mm (upper)) to join the icy blocks Iceberg and Electroshtorm shows;
• Barashka screw with M6 thread (hole 6.5 mm) for joining ice Tornado-M2, Buran and to the UA-400.20 extension cord for the ice block tonar and Helios;
• Vint Barashki with M8 threads (lower) to join the Motoshtorm 130-180R motorcies and the hole 8.5mm (upper) for MotostHorm 200r.
• screw-bar with thread M6 (special) (8.5 mm Lower hole) to join the screws Electroshtorm 110-180r.

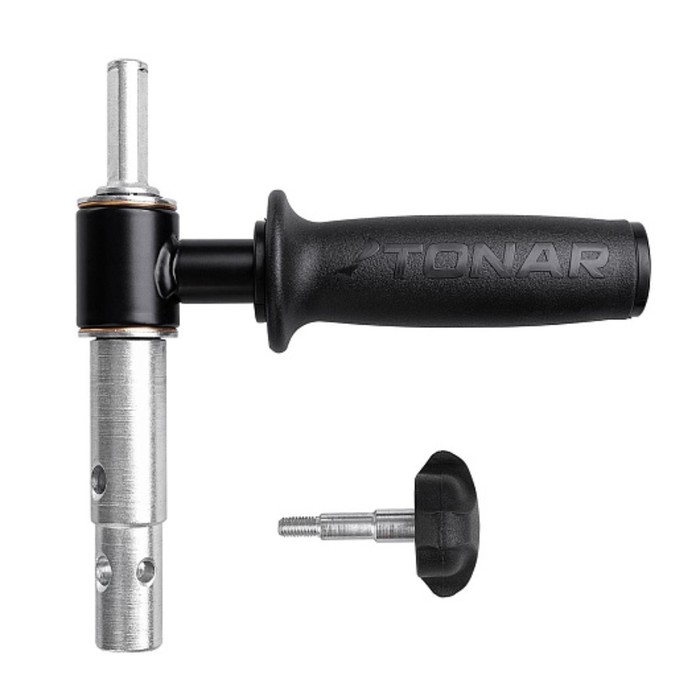

Completeup:

• adapter assembly - 1 pc.
