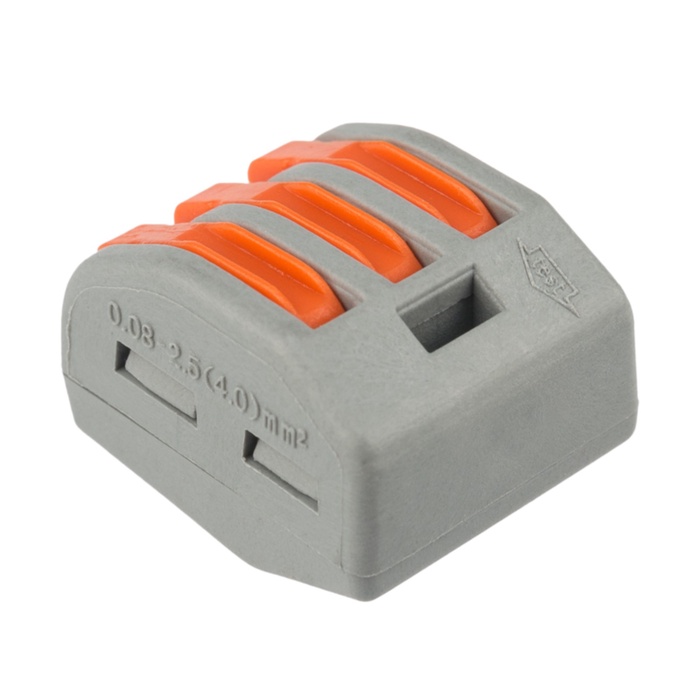

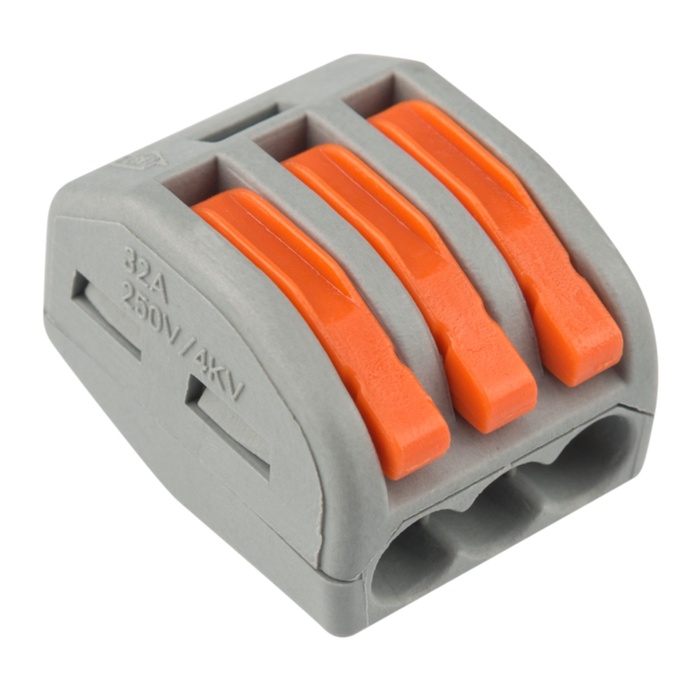

Universal terminal of QMS 222-413, 3-wire gray 0.08-2.5/4 mm² (50 pcs/union) rexant

The Rexant Connecting reusable terminal with a flat-free clamp is designed to connect copper and multi-core cleared thin cross-section conductors. Before installation with the connected conductor, it is necessary to remove the insulation in accordance with the designations on the terminal body. The cleaned area on the mounting side should not have strong bends. The conductor is introduced into the free nest of the terminal with a previously raised orange lever, after which the lever is lowered to its original position. Contact is carried out by clamping the conductor with a plate. The design prevents a random opening of the contact. A special technological hole on the terminal case is designed to check the connection by a tester-industrialist or probe of a multimeter. The plastic case makes contact isolated. The extraction of the conductor (dismantling) is carried out by the listed actions in the reverse order.
