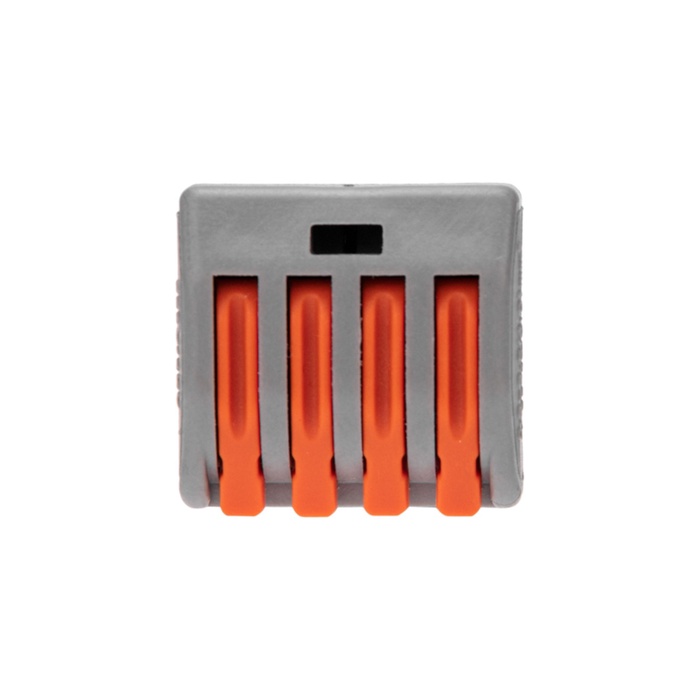

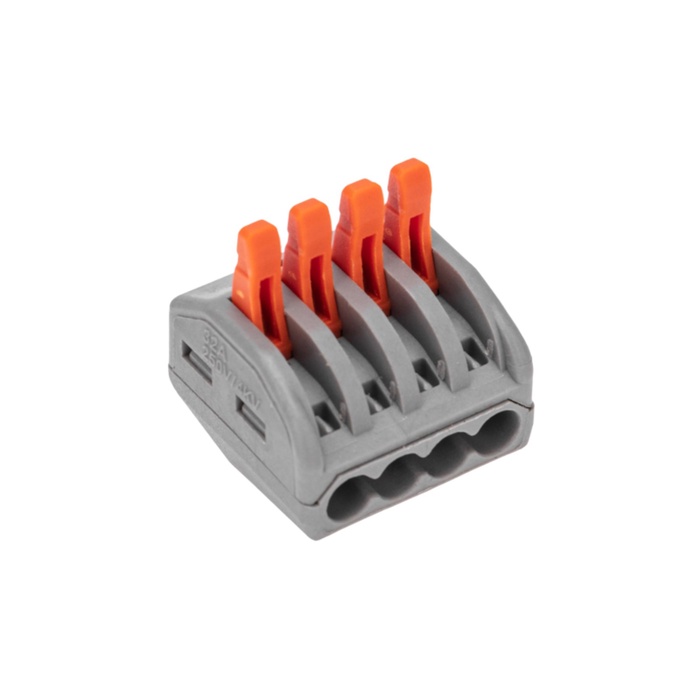

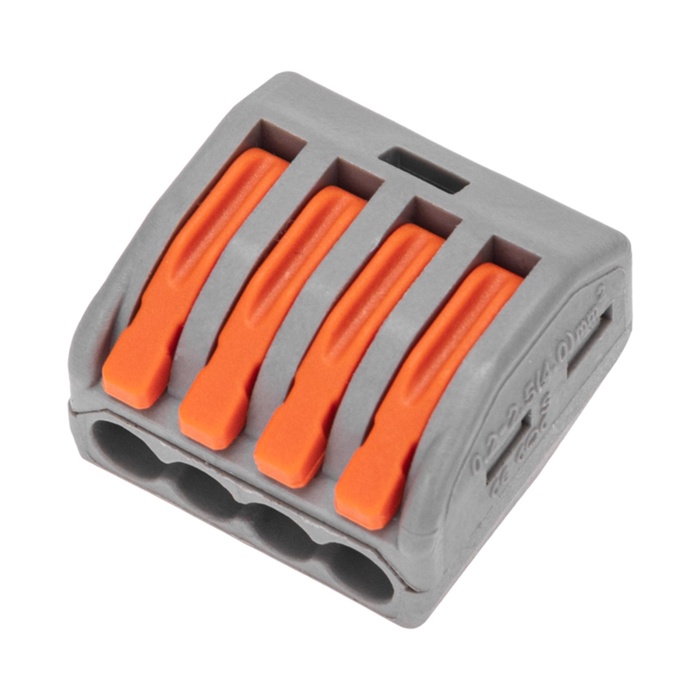

Universal terminal of QMS 222-414, 4-wire gray 0.08-2.5/4 mm² (50 pcs/union) rexant

Connecting reusable terminal of the QMS 22-414 TM REXANT on 4 conductor with a flat-free clamp is designed to connect copper and multi-core cleaned conductors of the thin section.

before installation from the connected conductors, it is necessary to remove the isolation in accordance with designations on the terminal case (9-12 mm). The cleaned area on the mounting side should not have strong bends. Insert it into the free nest of the terminal, having previously lifted the orange lever, then lower the lever to the original position. Contact is carried out by clamping the conductor with a plate. The design prevents the accidental opening of the contact.

A special technological hole on the terminal body is designed to check the connection by the tester-industrial or probe of the multimeter. The plastic case makes contact isolated.
