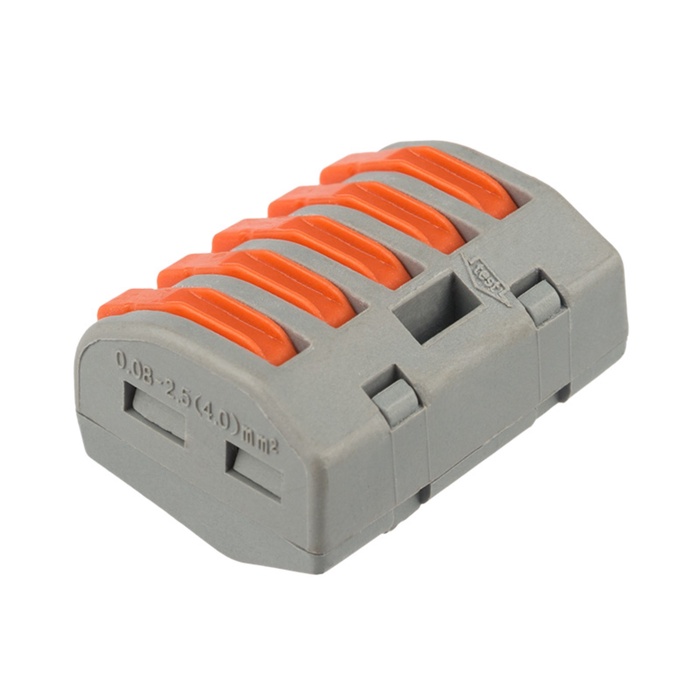

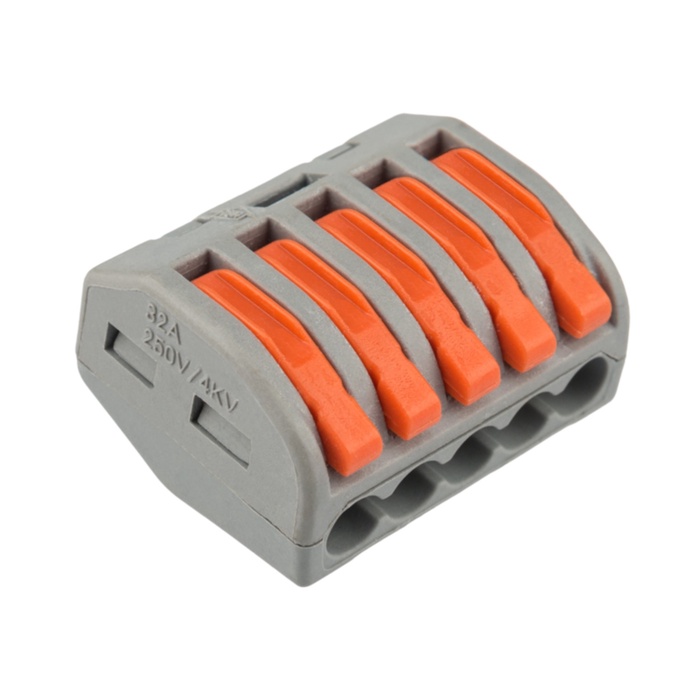

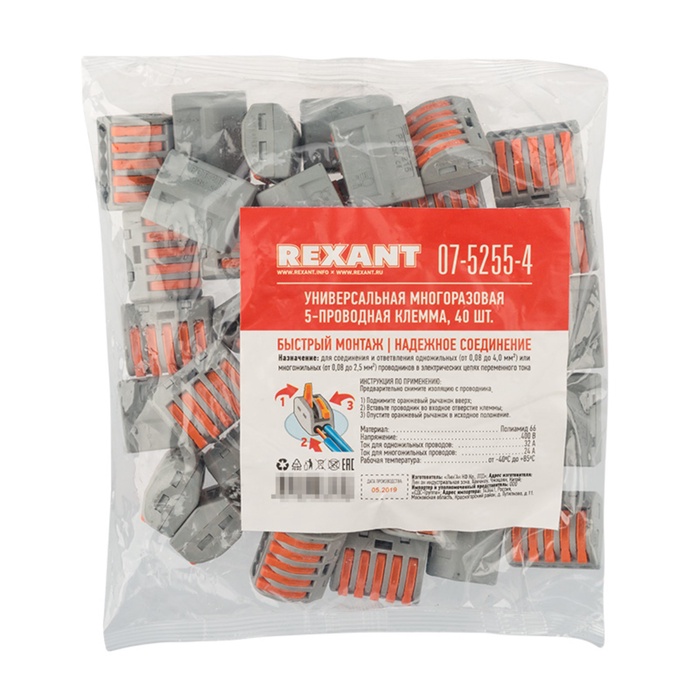

Universal terminal of QMS 222-415, 5-wire gray 0.08-2.5/4 mm² (40 pcs/union) rexant

The Rexant Rexant Connecting multi-ore terminal with a flat-free clamp is designed to connect copper and multi-core cleaned conductors of the thin section.

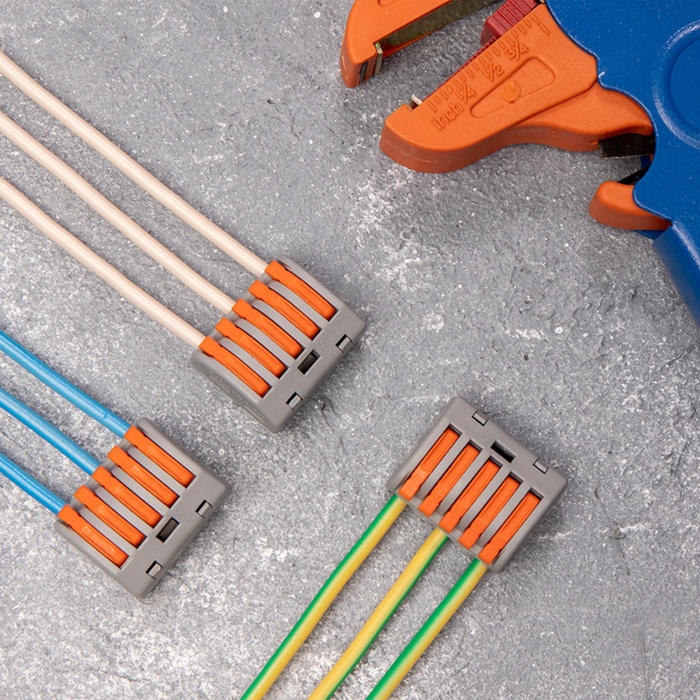

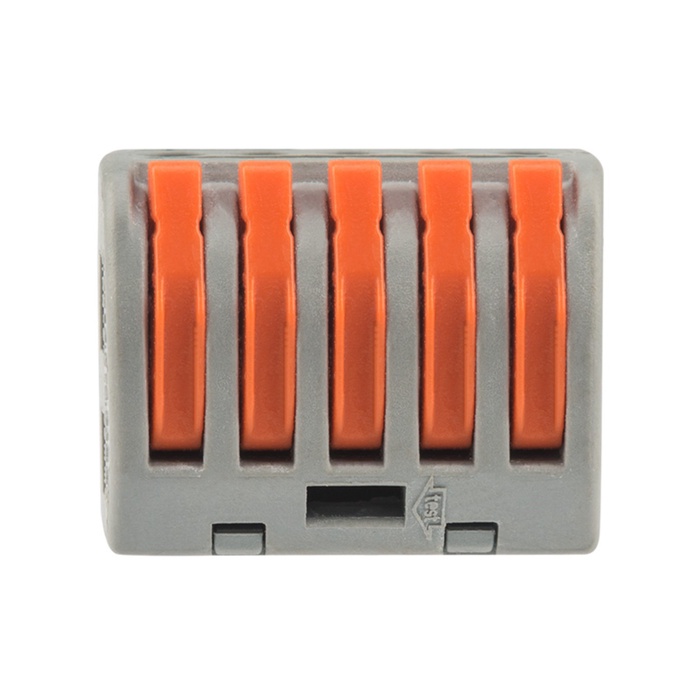

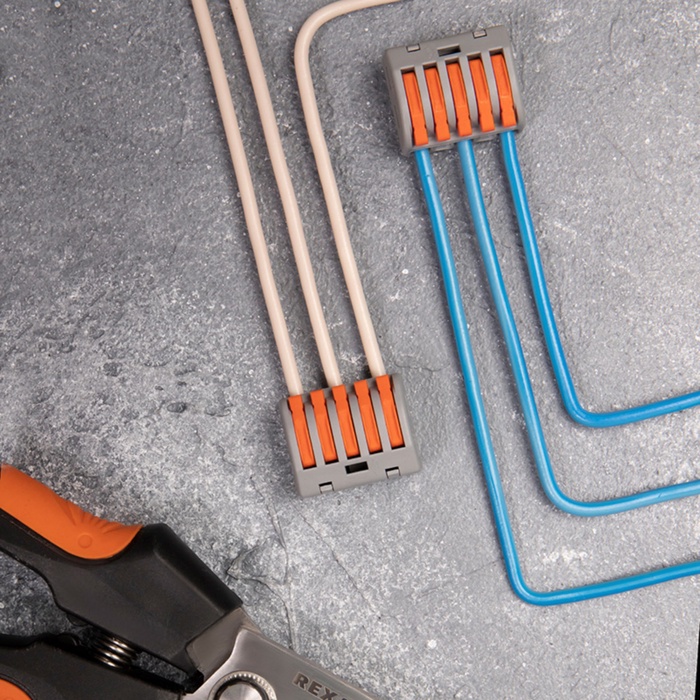

before installation from the connected conductors, it is necessary to remove insulation in accordance with the designations on the terminal of the terminal ( 9-12 mm). The cleaned area on the mounting side should not have strong bends. Insert it into the free nest of the terminal, having previously lifted the orange lever, then lower the lever to the original position. Contact is carried out by clamping the conductor with a plate. The design prevents a random opening of the contact. A special technological hole on the terminal case is designed to check the connection by a tester-industrialist or probe of a multimeter. The plastic body makes contact isolated.

the extraction of the conductor (dismantling) is carried out in the reverse order.
