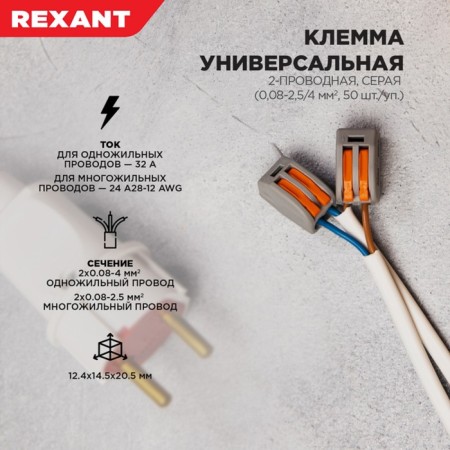

Universal terminal Rexant QMC 222-412, 2-wire, gray, 0.08-2.5/4 mm2, 50 pcs

Rexant universal terminals allow you to quickly and safely connect copper and multi -core conductors of thin cross -section. A thought-out flat-free clamp evenly presses on the entire contact surface, excluding high transition resistance.

the conductive part of the connector is made of copper. A special technological opening on the terminal case is designed to check the connection by a tester-industrial or probe with a multimeter. Previously, the wires are cleaned by about 9-12 mm.

Advantages:

• The two-wire terminal has a terminal place for each cable; tools;
• a large supply of power allows the use of terminals to connect any household appliances.

Characteristics:

• Size: 12.4x14.5x20.5 mm
• Material: polyamide
• Number of contacts: 2
• Material of contacts: puddled copper
• clamp: steel
• color: gray
• voltage: 400 V
• Material of the connected wires: Cu
• Types of connected wires: one -core, multi -dwelling
• TOK: for one-wire wires-32 A, for multi-core wires-24 A 28-12 AWG
• Supported section: 2x0.08-4 mm² (one-core wire), 2x0.08-2.5 mm² (multi-core wire)
• Working temperature: –40...+85 ºC.
