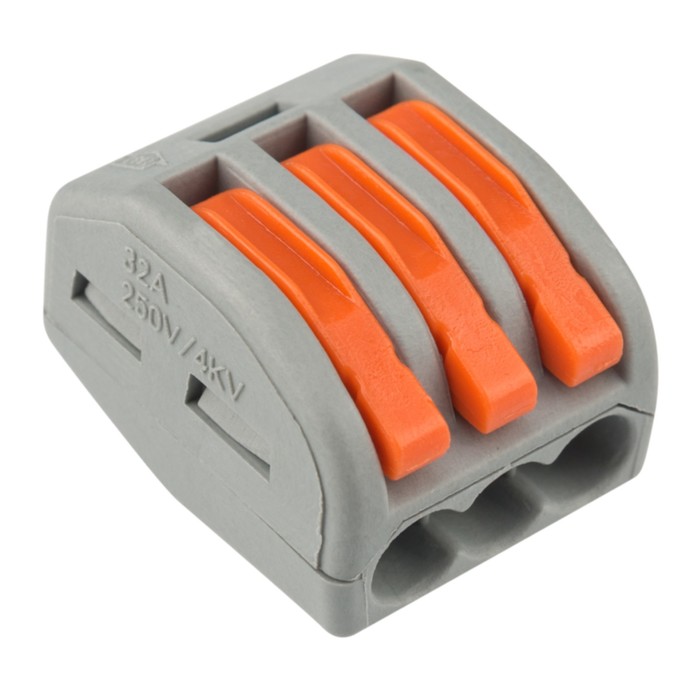

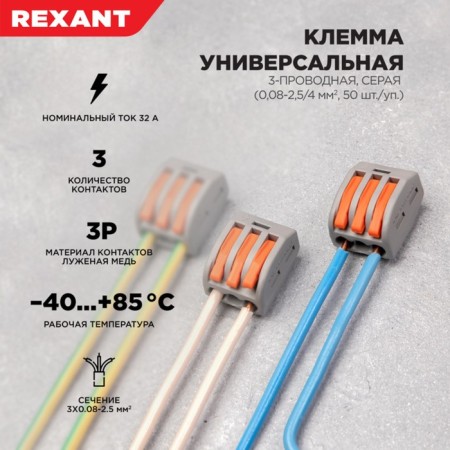

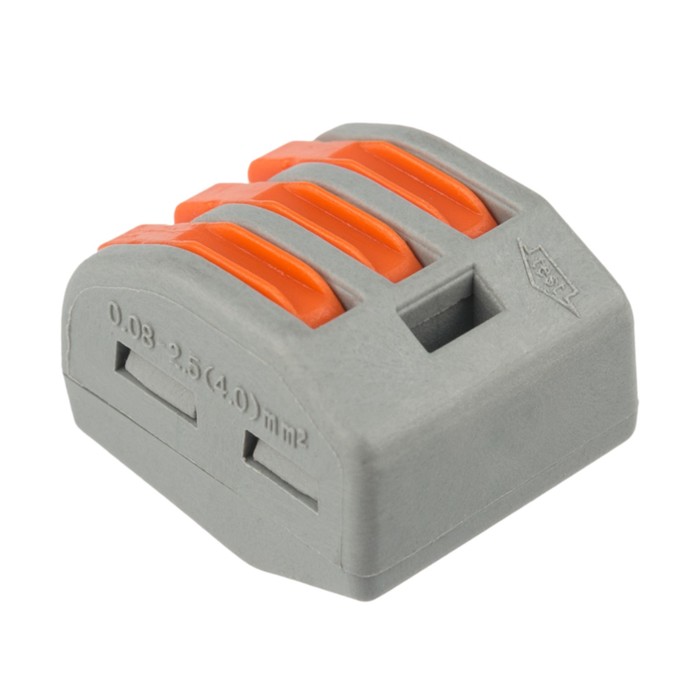

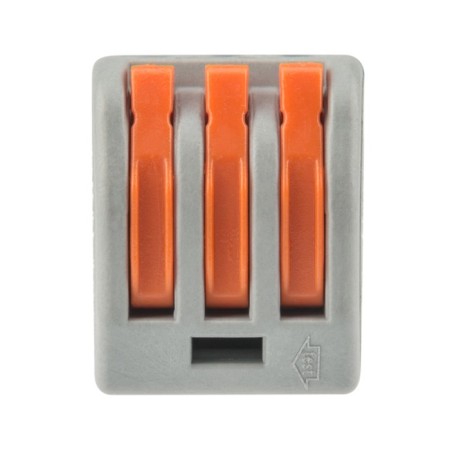

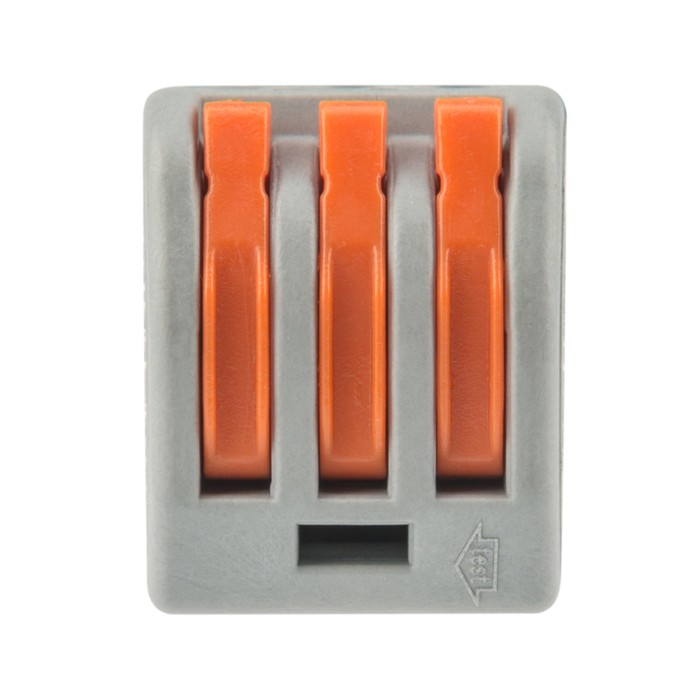

Universal terminal Rexant QMC 222-413, 3-wire, gray, 0.08-2.5/4 mm2, 50 pcs

The Rexant Connecting reusable terminal with a flat-free clamp is designed to connect copper and multi-core cleared thin cross-section conductors. Before installation with the connected conductor, it is necessary to remove the insulation in accordance with the designations on the terminal body. The cleaned area on the mounting side should not have strong bends. The conductor is introduced into the free nest of the terminal with a previously raised orange lever, after which the lever is lowered to its original position. Contact is carried out by clamping the conductor with a plate. The design prevents a random opening of the contact. A special technological opening on the terminal case is designed to check the connection by a tester-industrial or probe with a multimeter. The plastic case makes contact isolated. The extraction of the conductor (dismantling) is carried out by the listed actions in the reverse order.

characteristics:

• Size: 17x14.5x20.5 mm
• Material: polyamide < /li>
• Number of contacts: 3
• Material of contacts: puddled copper
• clamp: steel
• color: gray
• voltage : 400 V
• Material of connected wires: Cu (copper)
• Types of connected wires: one -core, multi -core
• current for one -wire wires: 32 a
a a a a a a a
• TOK for multi-core wires: 24 A
• Classification by AWG: 28-12
• Supported section for one-wire wire: 3x0.08-4 mm²
• Supported section for a multi -core wire: 3x0.08-2.5 mm²
• operating temperature: -40...+85 ºC
• Number in packaging: 50 pcs.

Advantages:

• simple and quick installation/dismantling of the connection;
• safe connection without using special tools;
• compact dimensions; < /li>
• convenient form;
• the presence of a nest for checking the connection.
