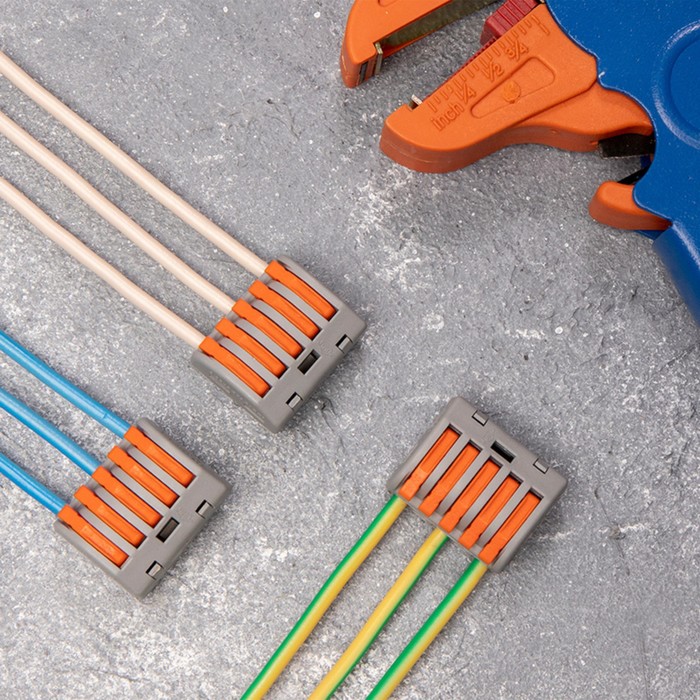

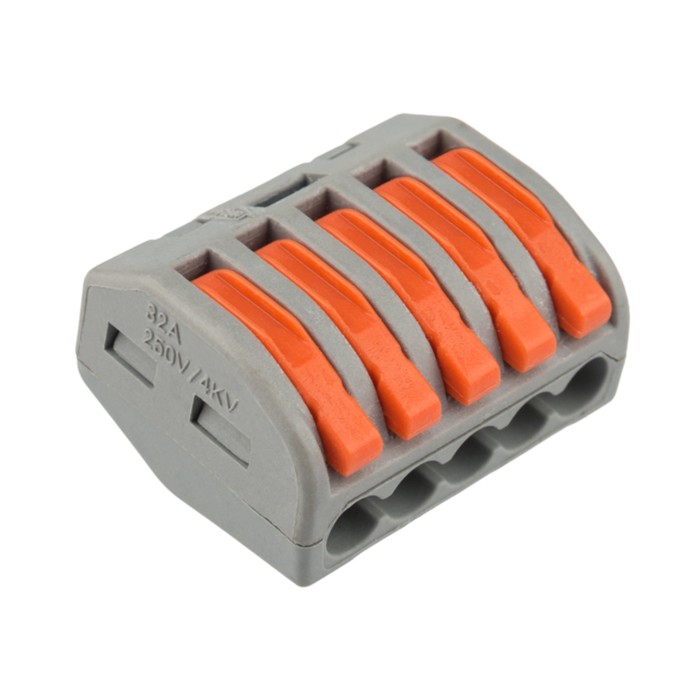

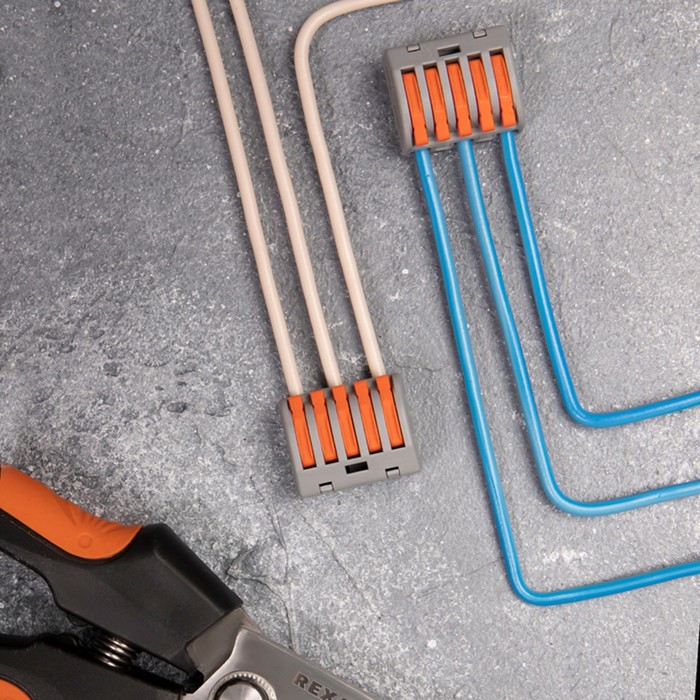

Universal terminal Rexant QMC 222-415, 5-wire, gray, 0.08-2.5/4 mm2, 40 pcs

The Rexant Rexant Connecting multi-ore terminal with a flat-free clamp is designed to connect copper and multi-core cleaned conductors of the thin section.

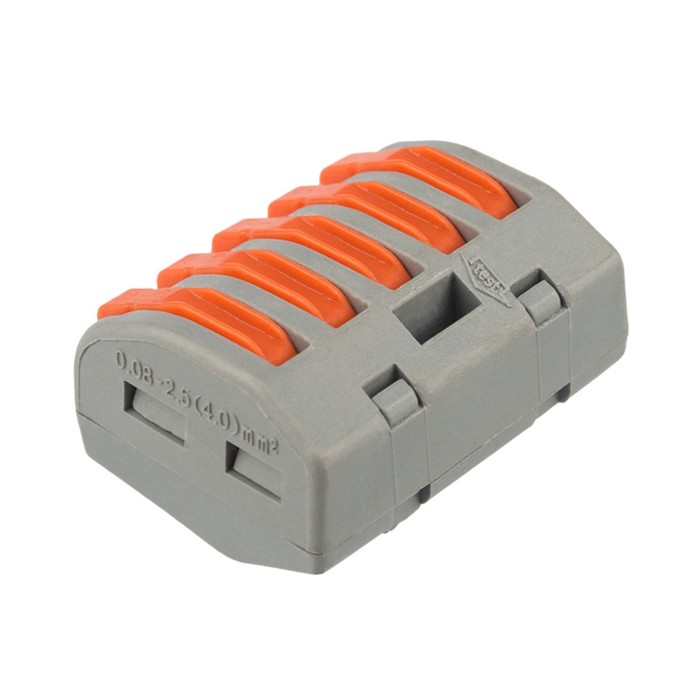

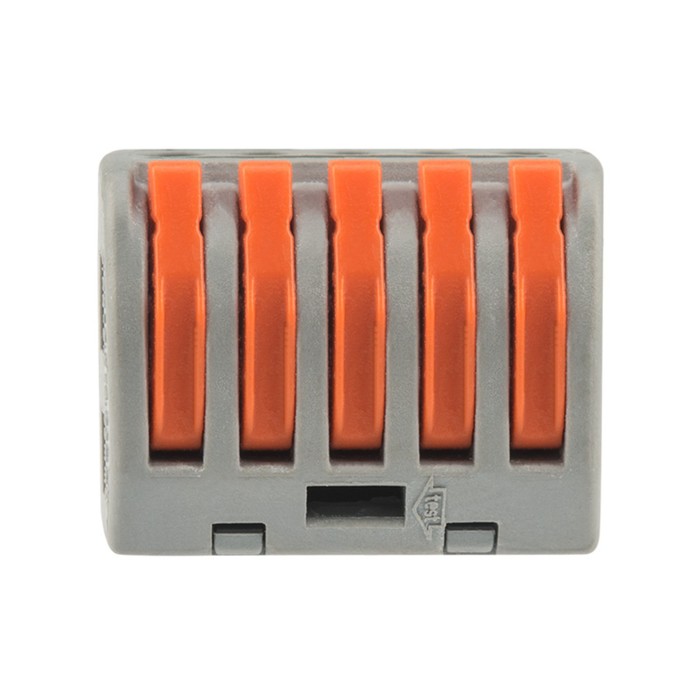

before installation from the connected conductors, it is necessary to remove insulation in accordance with the designations on the terminal of the terminal ( 9-12 mm). The cleaned area on the mounting side should not have strong bends. Insert it into the free nest of the terminal, having previously lifted the orange lever, then lower the lever to the original position. Contact is carried out by clamping the conductor with a plate. The design prevents a random opening of the contact. A special technological opening on the terminal case is designed to check the connection by a tester-industrial or probe with a multimeter. The plastic case makes contact isolated. The extraction of the conductor (dismantling) is carried out by actions in the reverse order.

characteristics:

• Size: 26.6x14.5x20.5 mm
• Material: polyamide 66
• Number of contacts: 5
• Material of contacts: tinned copper
• clamp: steel
• color: gray
• Voltage: 400 V
• Material of connected wires: Cu
• Types of connected wires: one -core, multi -lifetime
• current: for one -core wires - 32 a, for multi -core wires -24 A28-12 AWG
• Supported section: 5x0.2-4 mm² (one-core wire), 5x0.14-2.5 mm² (multi-core wire)
• operating temperature: -40...+85 ºC.
