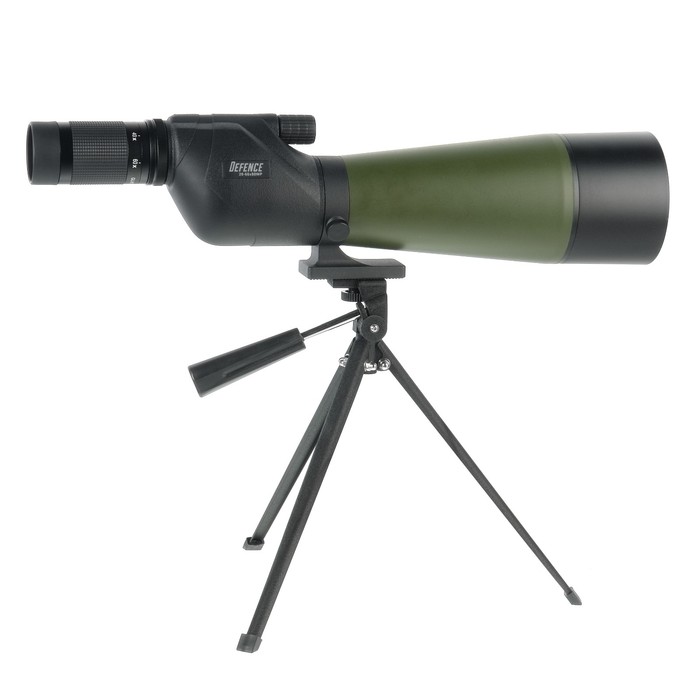

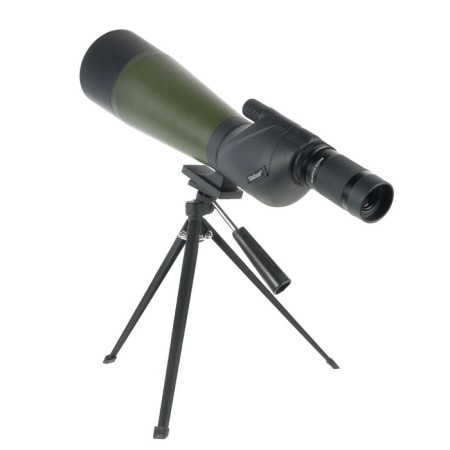

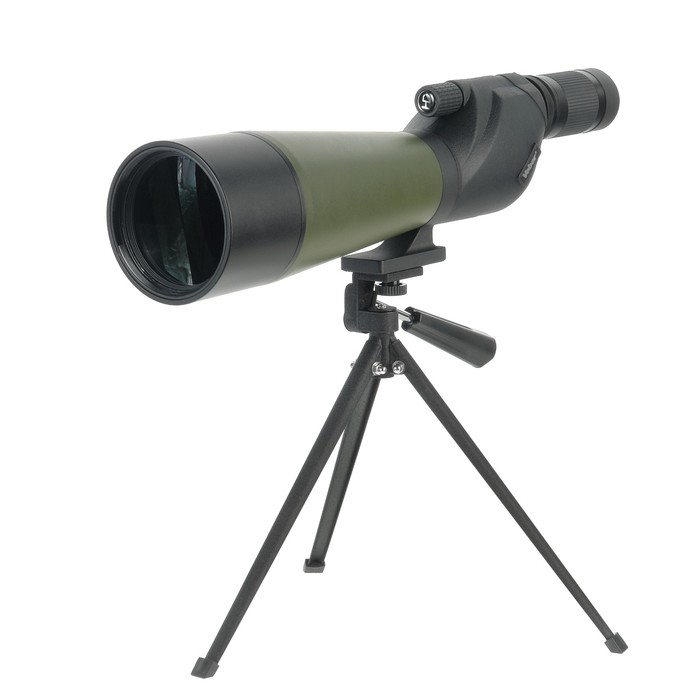

Vyber Defense visual pipe, 20-60 × 80 WP, with a grid

Veber Defense 20-60x80wp with a net-a visual pipe with a smooth variable increase of 20 to 60s, a diameter of the lens 80 mm and a direct eyepiece. Multilayer enlightenment of optics, a large diameter of the lens and a moisture -proof case will observe even in low light and in adverse weather conditions.

The visual pipe with a high increase in an increase in 20x-60x is designed for inpatient observations of heavily remote objects. Veber Defense 20-60x80WP will be a great solution for travelers, observers of wildlife, including huddles, as well as the protection of the perimeter or hunting from the tower.

Optical Enlightenment FMC

Multilayer optical enlightenment of the optical elements of the FMC (Fully Multi-Coated) provides a bright and contrasting image and allows observation even under conditions of insufficient illumination.

Thanks to the use of high-quality optical glass, the VAK-4 image in the eyepiece has the correct color rendering and without distortion along the edges of the field of view.

A wide viewing angle

Veber Defense 20-60x80WP provides a wide viewing angle at the expense of the optical scheme with zoom, while taking into account that at the maximum increase, the viewing angle will be 1.0 °, at the minimum-1.8 °. The near focusing distance is 8 m, which allows observation even at a small distance from the object.

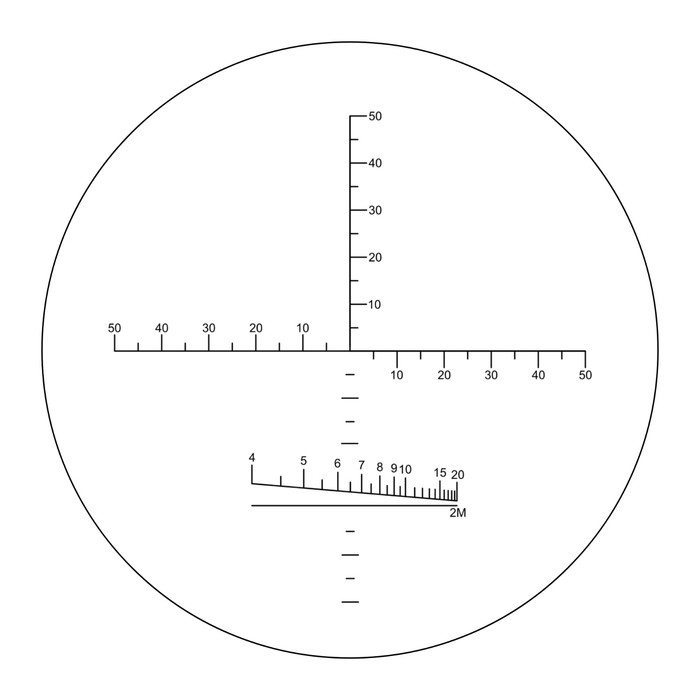

measuring mesh

Tactical measuring grid is visible in the eyepiece of the visual pipe and is a combination of corner and long -range measuring containers

The angular measuring grid has a horizontal and vertical scale marked in MIL with a 5mil division price (between long strokes with numbers - 10mil). Binding the scale in MIL means that 10 Mil corresponds to 1 m on the target remote per 100 meters. The angular dimensions of objects, determined on the scales, can be used to calculate the range to the target or its size.

A range -free mesh in the lower part of the eyepiece is even easier to use. With its help, you can quickly determine the distances to targets with a known height of 2 meters. To do this, it is necessary to place an object 2 meters high in the field of view so that it is precisely placed between the upper inclined and lower horizontal line, and count the value from the inclined scale. Multiplied by 100, it will give a distance to the target in meters.

The device is ready for testing

The degree of IP67 dust protection guarantees the safety of the device even with intense rain and immersion in water up to 1 meter for no more than 30 minutes. Filling the body with drained gas will prevent fogging of lenses with a sharp change in temperature.

The visual pipe is also equipped with a retractable blend for observation in bright sunlight and covers of an eyepiece and lens - to protect optics from damage.

Comfortable observation

A visual pipe with a sealed rubberized body and dimensions of 435x100x170 mm has an optimal weight of 1.55 kg.

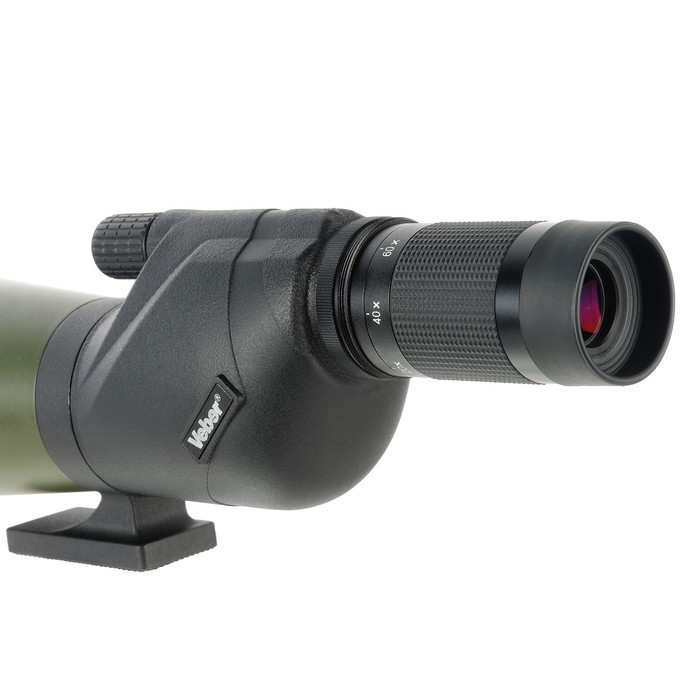

On the eyepiece part of the visual pipe, there is a focus drum with convenient control of the index finger, as well as the zooming wheel.

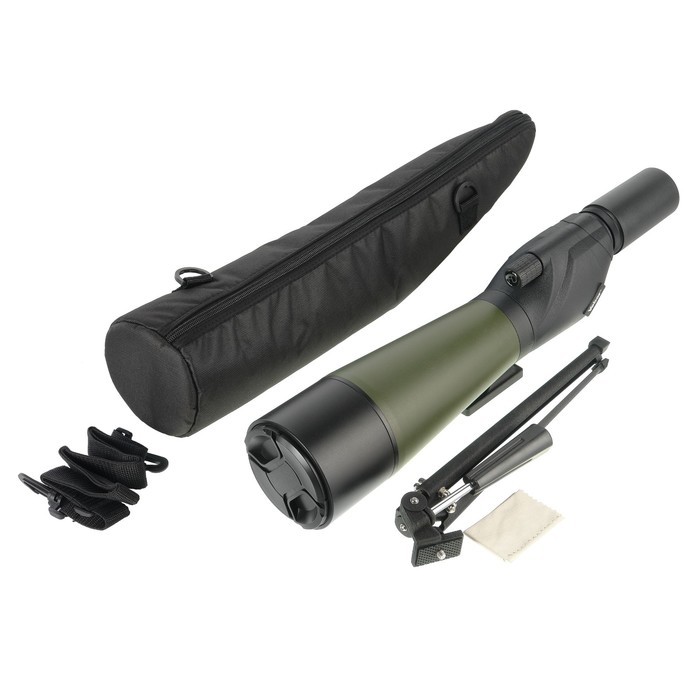

For the convenience of working with the device, the kit includes a desktop tripod 230 mm high with a 2D head, which will allow long -term inpatient observation.

Thanks to the ring tripod adapter, the pipe can rotate around the optical axis to any angle with tactile and by ear with distinguishable clicks.

The pipe is mounted on a tripod through a threaded hole ¼ ”on an mounting platform with a size of 7.5x3.5 cm. Thanks to the standard mounting, the tripod can be replaced with any other if necessary (for example, in order to observe a higher point - The tripod Falcon Eyes Travel Line 2400).

For photo-video shooting of observations, it is recommended to purchase an adapter for the smartphone VEBER EA 46 fucker.
