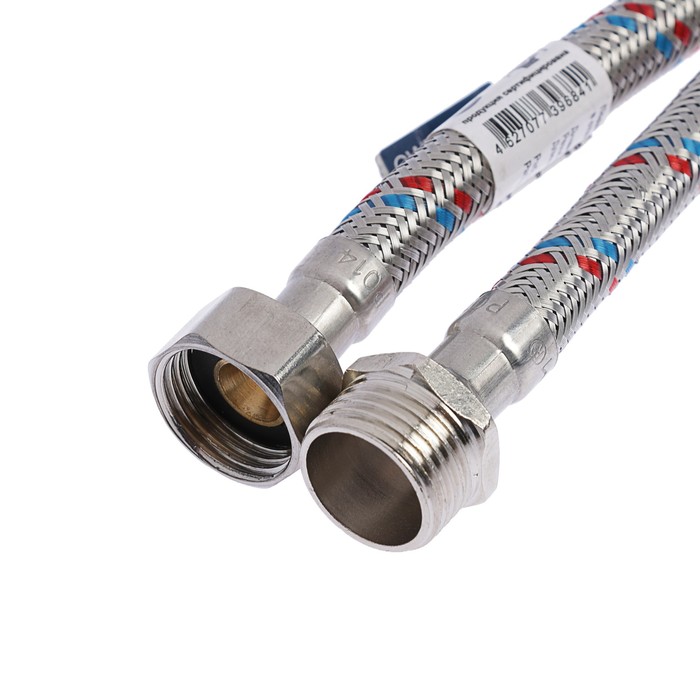

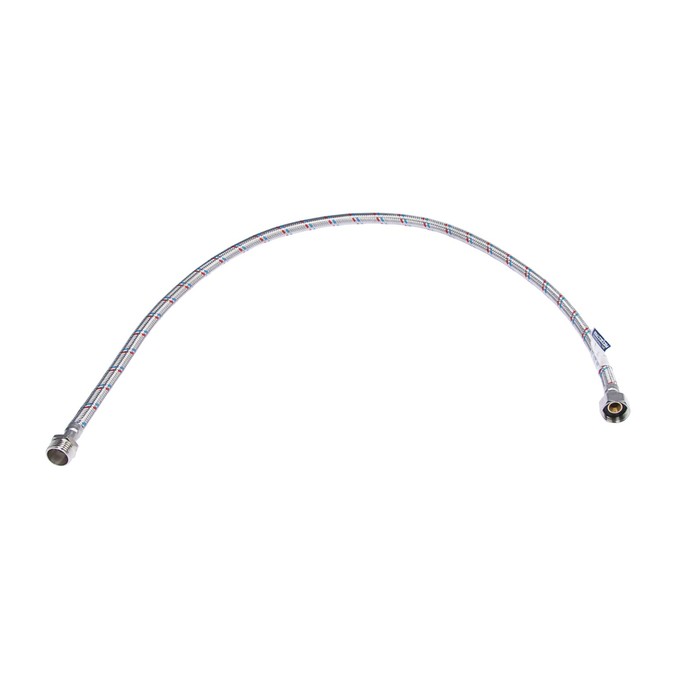

Water eyeliner "STM", internal/outer thread 1/2, 80 cm, steel
$8.10
In Stock
Characteristics
A country
China
Color
Silver
Connection diameter
1/2"
External diameter, mm
12.5
Inner diameter, mm
8.5
Water eyeliner with internal/external threads is designed to join the plumbing reinforcement and plumbing devices (mixers, shower cabins, bidets, toilets) and water eyelids to household units (water heating devices, washing and dishwasher, and dishwasher, and dishwasher pumps, etc.).
The braid of a flexible eyeliner is woven from 7 stainless steel threads 0.2 mm thick. The internal hose (tube) is made of special non -toxic rubber. The internal diameter of the hose is 8.5 mm ± 0.5 mm. The external diameter of the hose is 12.5 mm ± 0.5 mm.
When installing a flexible eyeliner, the end reinforcement must be tightened with a force of not more than 4 n ∙ m. The service life is 10 years.
| Characteristics | |
| A country | China |
| Color | Silver |
| Connection diameter | 1/2" |
| External diameter, mm | 12.5 |
| Inner diameter, mm | 8.5 |
| Length, see | 80 |
| Max. The moment of tightening of the end reinforcement, n/m | 0.4 |
| Nominal stream, l/min | 35 |
| Operating temperature, C ° | +75 ° C. |
| Radius of curvature, mm | 60 |
| Type of connection | With external/internal thread |
| Working pressure, bar | 15 |
