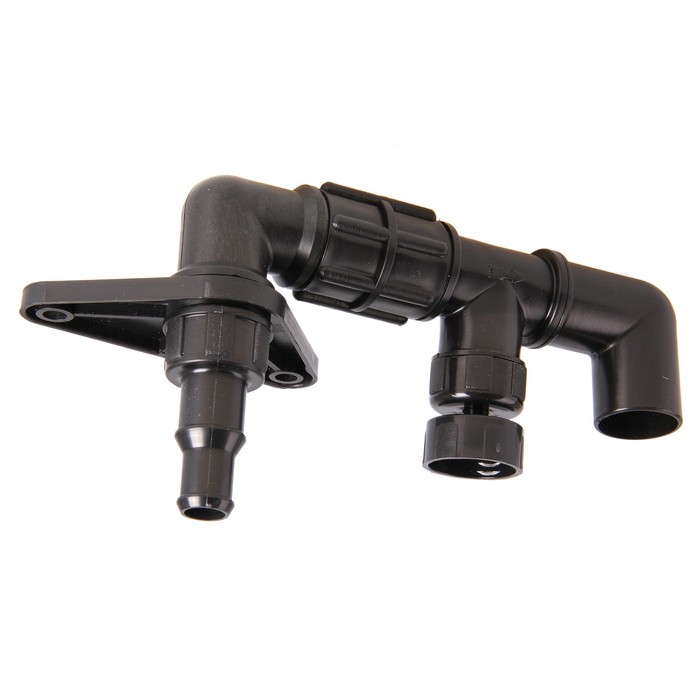

Water level regulator RUV-1

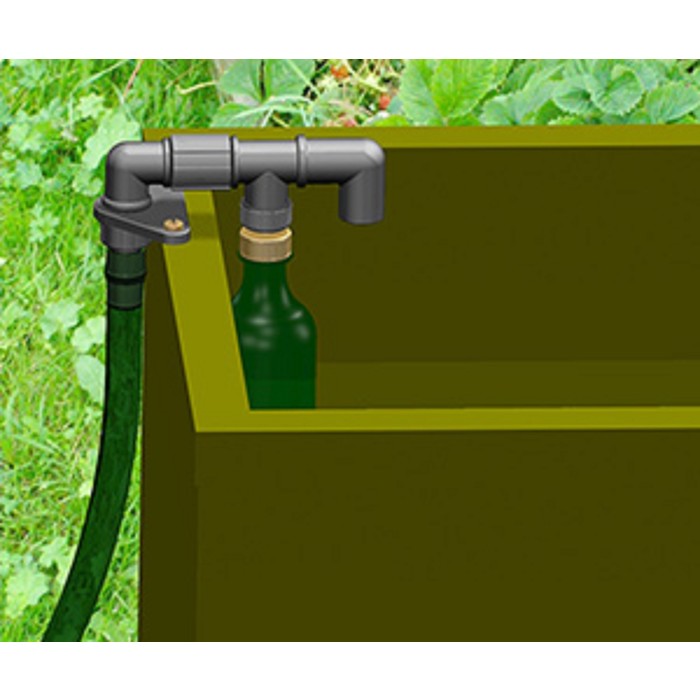

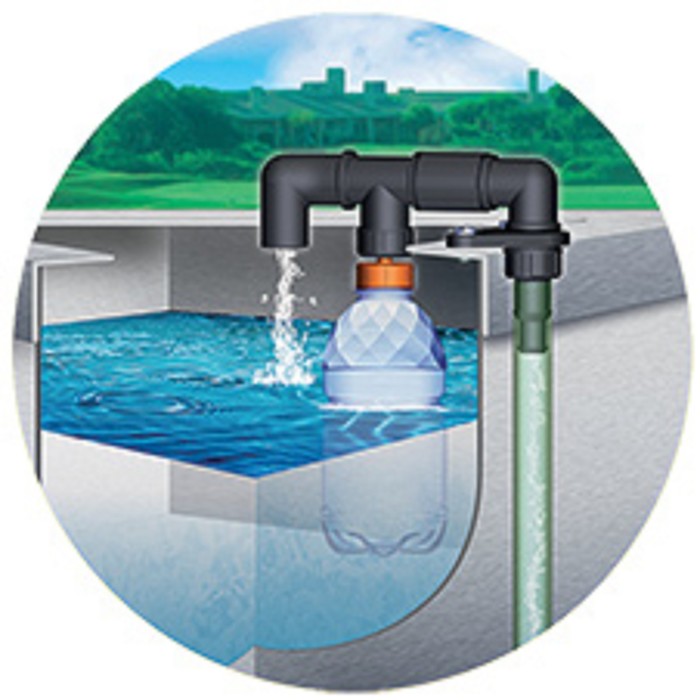

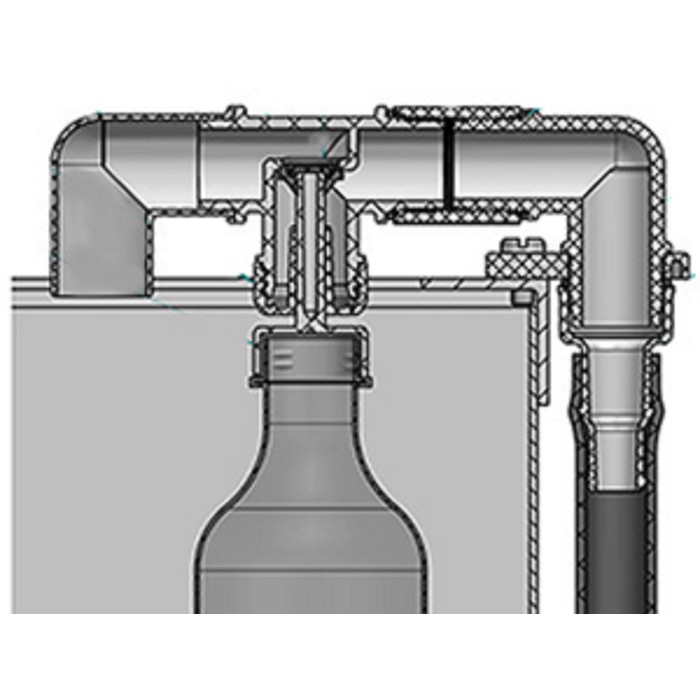

designed to automatically turn on and disconnect the water supply to the tank as it is filled to the required level, and is recommended for installation on the water tanks of garden and summer cottages. In most suburban areas, water for irrigation is supplied centrally and strictly according to the schedule. On such days, many rush to their cottages, often for the only purpose - to fill the tanks with water, spending considerable funds on the road.                                       Instructions for the installation and operation of the RUV-1 regulator on the tank. The figure shows the option of installing the regulator on the tank. With two bolts, the regulator is attached to the metal corner with which the tank is edged. If there is no such edging, then it is necessary to fasten a small corner or weld to the tank. As a float, a conventional plastic bottle is used, with a capacity of 0.3 - 0.5 liters. Before installing, the bottle must be half filled with water. When filling the tank with water, its level is checked, at which the shut -off valve is triggered. By adding water to the float in small portions, achieve the maximum filling of the tank with water. After the end of the summer season, the regulator must be removed, disassembled and cleaned. We recommend that a preventive inspection and cleaning of the regulator do during the summer season.
