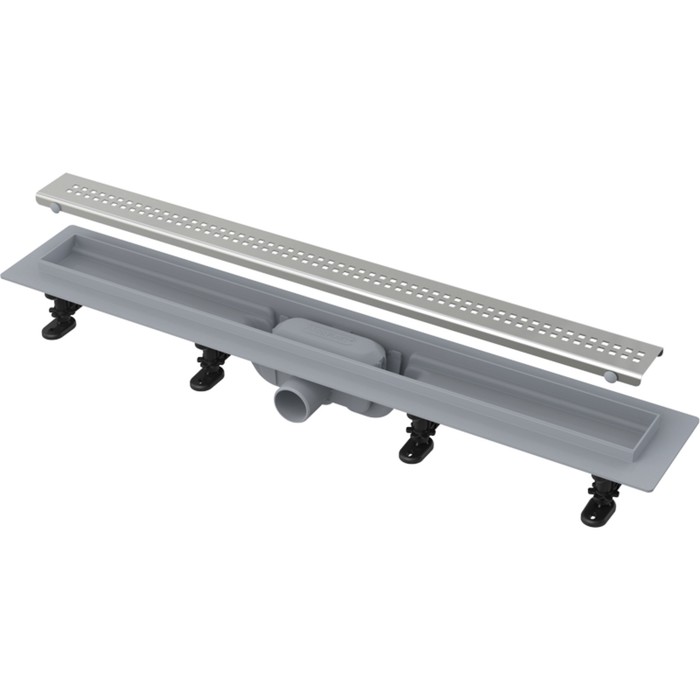

ALCAPAPLAST SIMPLE APZ9-650 drainage groove, with thresholds for a perforated lattice

The gear is designed to drain water into the sewer. The plumbing device is used in bathrooms, showers, on terraces and balconies, in basements, boiler houses, pools and on horizontal roofs. Suitable for draining with a diameter of 40 mm.

• self-adhesive tapes close the cracks and provide complete waterproofing.
• The lattice is disassembled, you can completely clean the gutter up to Waste pipe.
• is used with different types of flooring: concrete, plastic, ceramic tiles.
• is equipped with a removable combined water plant. On the one hand, it does not allow an unpleasant odor to penetrate the sewage system. On the other hand, the water does not accumulate and does not stagnate in the ladder case.
• adjustable mounting legs (0–35 mm), allow you to quickly and conveniently install the gutter and level it in a horizontal plane.

• connection diameter-40 mm;

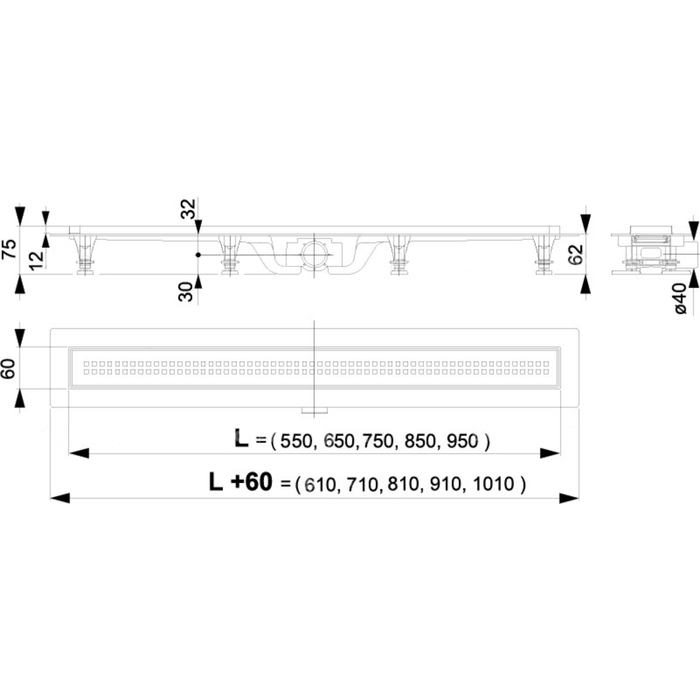

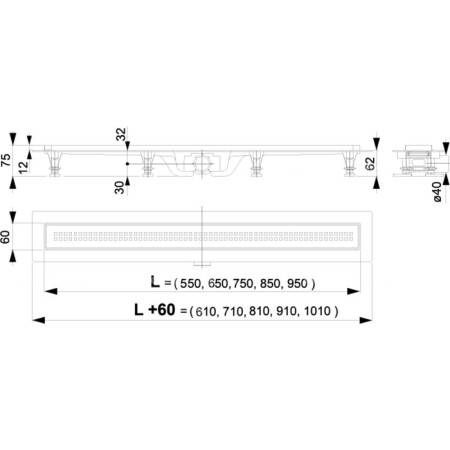

• installation height-6.2 cm;
• water flow rate-30 l/min;
• thermal stability-95 ° C.

• drainage troops.
• perforated stainless steel grille.
• Waterproofing collar.
• Double combined waterproof.
• Installation set: screw, 4.2 × 38 mm (8 pieces ); dowel with a diameter of 8 mm (8 pieces).
• Dismantling hook.
• 4 adjustable legs.
• Protective grate film.
• self -adhesive waterproofing tapes.
