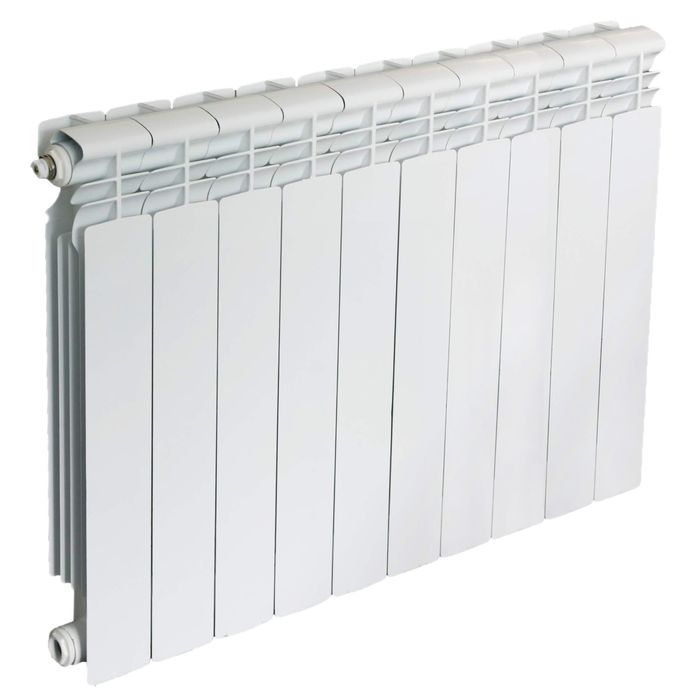

Aluminum radiator OASIS, 500 x 70 mm, 10 sections

OASIS aluminum radiator is used to heating the premises. The internal protective layer of the device is resistant to corrosion, which guarantees a long service life. The design in the form of vertical and horizontal ribs improves air passage and increases heat transfer.

Advantages:

• The most modern way of manufacture is the method of casting under pressure;
• increased resistance to corrosion;
• the ability to use both in autonomous and centralized heating systems;
• High -quality seven -stage coating of the device with the application of special paint "A".

The characteristics

• Work pressure: 16 atm.
• Test pressure: 24 atm.
• heat transfer: 155 watts.
• Section capacity: 0.32 l.
• Section weight (net/gross): 0.79/0.88 kg.
• Interssection distance: 500 mm.
• Height: 580 mm.
• depth: 70 mm.
• Width: 80 mm.
• Guarantee: 15 years.
