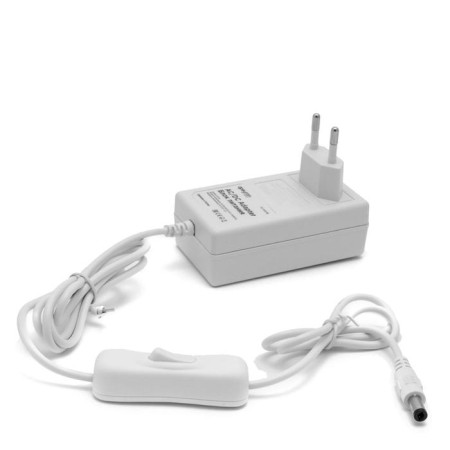

APEYRON ELECTRICS power supply for 12 V LED tape, 18 W, IP44

the power supply is the basis of most electrical products, the service life of the product and the stability of its work directly depends on the quality and reliability of which. A voltage stabilized voltage is converted by an alternating current from a network with a voltage of 220V to a direct current with a voltage of 12V and provides the optimal operating mode of LED lighting devices and other devices, extending their service life. When choosing a power supply, it is recommended to provide 20% of the power reserve, which will maintain performance much longer.

for safe operation, the block is additionally equipped with circuits for protecting the LED tape from emergency situations - voltage leaps, possible short circuits. Apeyron Electrics power sources are completely compatible with the APEYRON ELECTRICS trademark LED ribbon and provide the optimal operating mode and the long service life of the LEDs.

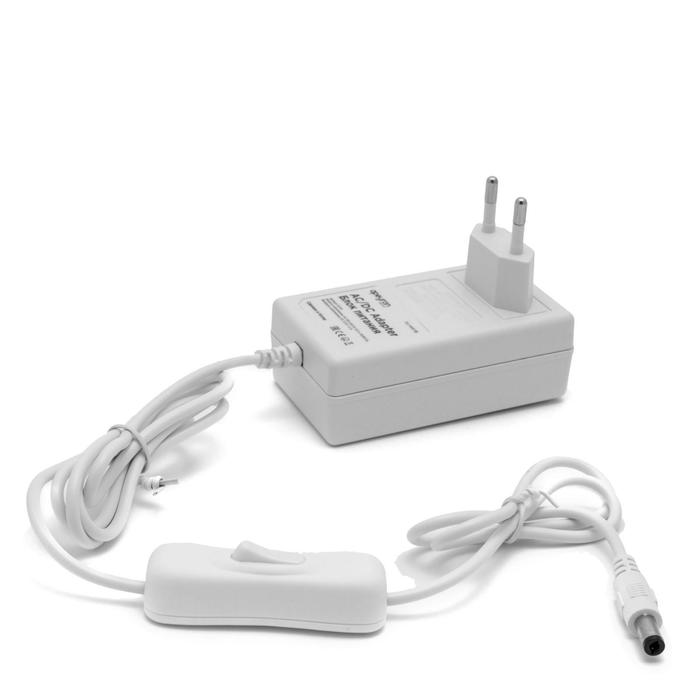

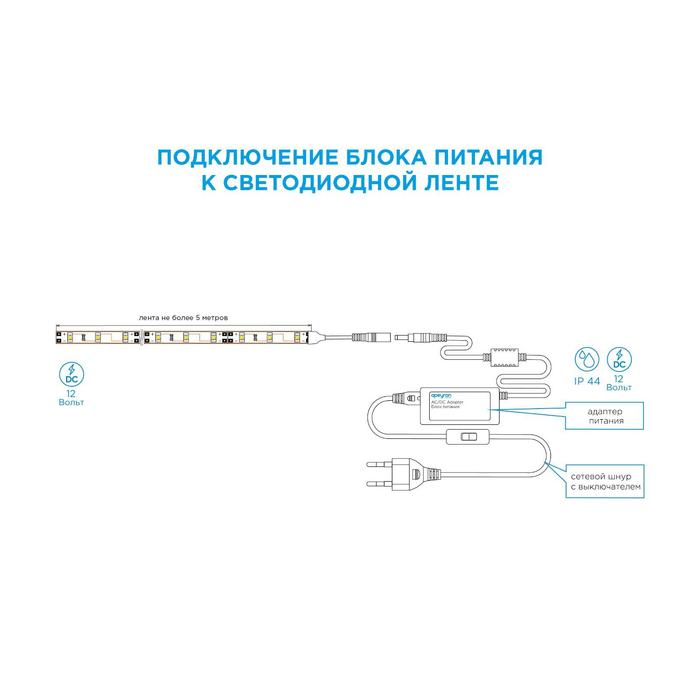

The power line with a ratio of 18W has a nominal power A direct current with a voltage of 12V, and is great for those cases when you need the simplest solution for organizing backlighting. The power supply has a fork and a 2.5x5.5 mm standard connector for connecting a glow source and a switch on the wire. A plastic case with sizes of 84x54x37 mm is an excellent solution when you do not have the opportunity to hide the power supply to a special place and you need to connect it to a conventional outlet. Depending on the modification of the body, the fork can be located on the case itself, and also be on a separate wire. This power supply, thanks to the input filter, will operate with voltage jumps in the range of 100-240V, while the output filter smoothes the pulsation and protects your eyes.

degree of protection

This power supply has a degree of protection against dust and moisture IP44, which means that it can be installed on the street and in wet rooms, but far from the moisture source and in a place where direct water is excluded..

Advantages:

• service life of more than 7 years;
• Compact size, light weight;
• High efficiency and stability;
• built -in protection against overload, overheating and short circuit;
< Li Align = "Justify"> efficiency> 90%;
• tested at 100% load;
• silent work;
< li align = "Justify"> Lack of pulsation;
• high assembly quality and multi -stage quality control at all stages of production;
• the power supply is equipped with a connector 5.5x2.5mm "dad";
• the power supply is equipped with a standard fork;
• the power supply is equipped with a switch on the wire.
