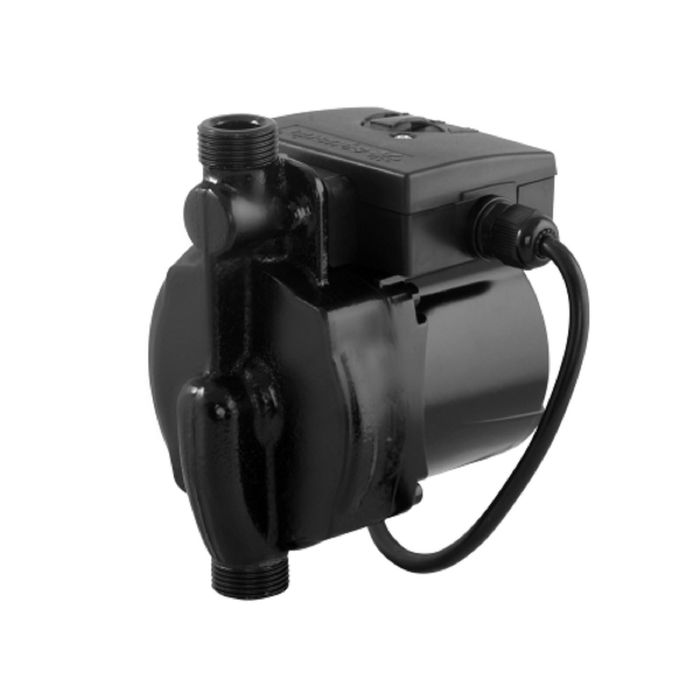

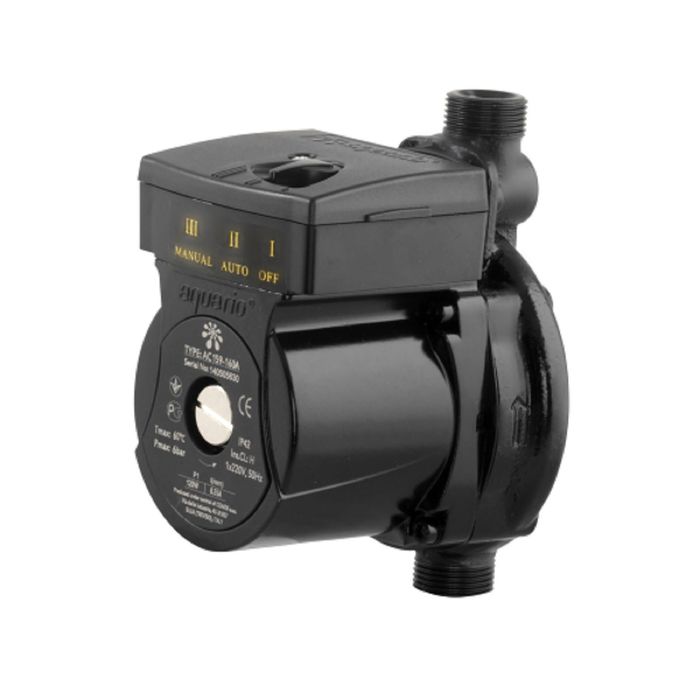

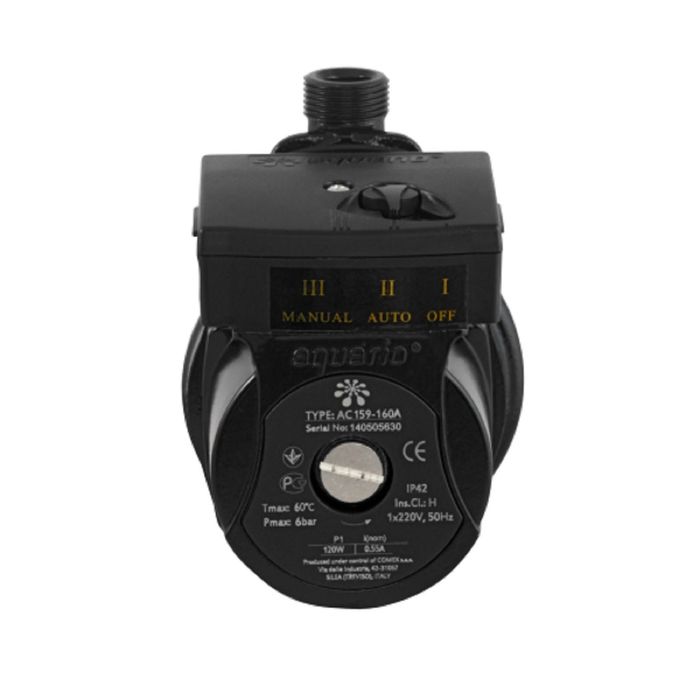

Aquario AC 159-160A, 120 watts, 26 l/min, pressure 9 m.

Aquario pump increases the pressure in central water supply systems in apartments and private houses for comfortable use of cold water. This model works almost silently. The input and output pipes are located on one axis, so the device is installed in the rupture of the water supply pipes.

operational restrictions

• The maximum linear size of solid particles in water: not more than 0.1 mm.
• The temperature of the pumped liquid: from +2 to +60 ° C.
• Environmental temperature: from 0 to +40 ° C.
• The maximum allowable pressure in the pump housing: 6 bar.
• The minimum pressure at the entrance to the pump required for its automatic start: 0.2 atm. (2 mm of water. Art.) And consumption of at least 2 l/min.

The characteristics

• Automatic mode: turning on and off the pump depending on the use of water.
• Pump design: with a “wet” rotor.
• engine cooling: using pumped water.
• Power network parameters: 220 V, 50 Hz.
• The heat resistance class of engine insulation: h.
• engine protection class: IP44.
• Stator winding material: 100 % copper.
• Material of the core of the stator and rotor: electrical cold steel.
• Material of the pump shaft and sliding bearings: ceramics.
• Workplace material: Technopolymer.
