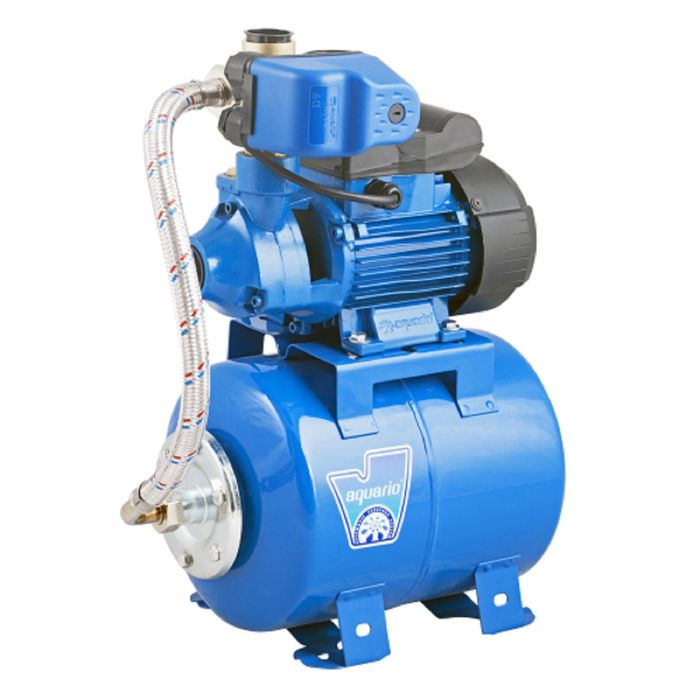

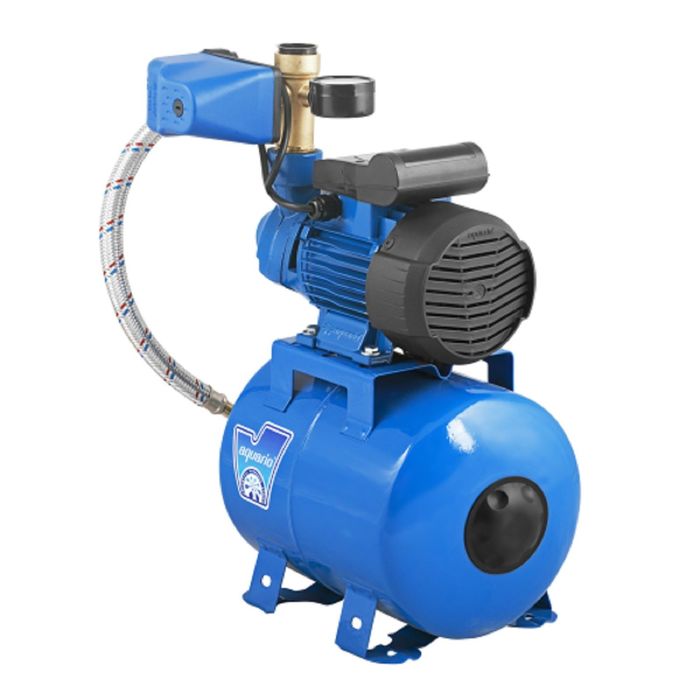

Aquario Auto ADB-35, 430 W, 35 l/min, pressure 35 m, tank 8 liters

Aquario pumping automatic station is used in individual water supply systems. This model serves to pump pure cold water from wells, wells, open ponds, etc.

Operational restrictions

• Installation: in a dry ventilated room/on the street in A place protected from direct sunlight and rainfall.
• The maximum absorption height: up to 7 m.
• The maximum allowable pressure in the pump housing: 8 bar.
• Ambassador temperature: from +1 to +40 ° C.
• The temperature of the pumped water: from +1 to +60 ° C.
• The maximum size of solid particles in pumped water: 0.1 mm.

The characteristics

• nominal (average) productivity range: 10–25 l/min.
• nominal (average) range of working pressure: 10–20 meters of water column (1-2 atm.).
• Pump engine: air cooling, single -phase, asynchronous, with a short -closed rotor, trigger capacitor and built -in protective thermal relay.
• Power network parameters: 220 V, 50 Hz.
• The heat resistance class of engine insulation: V.
• Engine protection class: IP44.
• Type of the working wheel: vortex.
• Stator winding material: 100 % copper.
• Material of the core of the stator and rotor: electrical cold steel.
• Material of the pump shaft: stainless steel AISI 304.
• Material of the body of the pumping part: cast iron with anti -corrosion galvanic coating of the inner surface in contact with water.
• Workwap material: brass.
• Capacity of the accumulator: 8 l.
• Material of the accumulator membrane: ethylene-protopylene rubber (EPDM).
