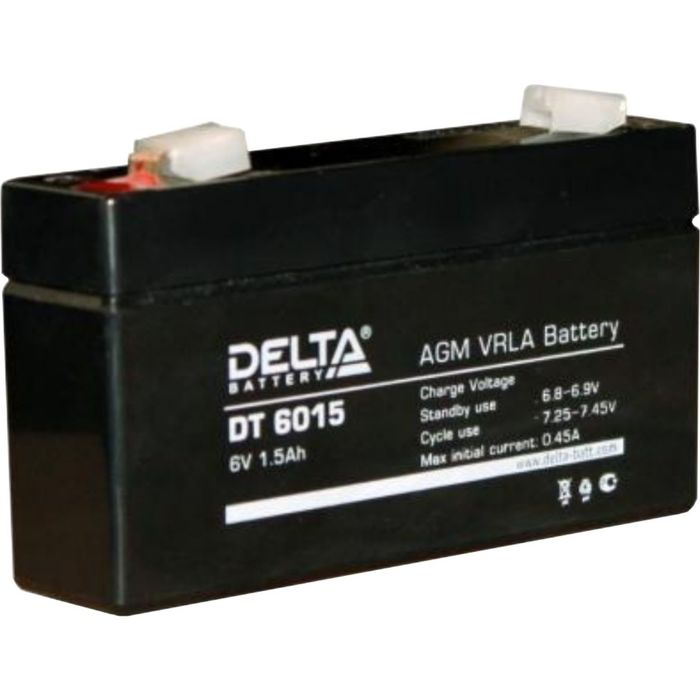

Battery Delta DT6015, 6 V, 1.5 A/h

Use the lead-acid battery Delta DT6015 for the uninterrupted operation of devices connected to it in low-current systems. It guarantees a backup autonomous power supply for disorders in the mains.

Advantages:

• AGM technology production provides high energy density and low self -discharge rate;
• a large degree of gas recombination (99 %) guarantees small discharge;
• excellent characteristics when discharged with high currents;
• Low internal resistance;
• A sealed design excludes the possibility of electrolyte leakage;
• meets the requirements of UL, IEC, GOST P;
• The battery housing is made of ABS plastic, which does not support burning;
• There are no restrictions during transportation.

it is used as a source of uninterrupted nutrition in the organization of security and fire alarms, telecommunication systems, as well as for medical and other equipment.

• Nominal voltage: 6 V.
• The number of elements: 3.
• Service life: 5 years.
• self -discharge (at 25 ℃): 3 % capacity per month.
• The internal resistance of a completely charged battery (25 ℃): 45 MOM.

Nominal capacity (25 ℃)

• 20-hour category (0.075 A, 1.75 V/El): 1.5 Ah.
• 10-hour discharge (0.14 a, 1.75 V/El): 1.4 Ahh.
• 5-hour category (0.235 A, 1.70 V/El): 1.175 Ahh.

The operating range of temperatures

• category: from –15 to +50 ℃.
• charge: from –10 to +50 ℃.
• Storage: from –20 to +50 ℃.
• The maximum discharge current (at 25 ℃): 18 A (5 s).
• Cyclic mode: (2.4–2.5 c/e): maximum charging current: 0.44 A, temperature compensation - 15 mV/℃.
• Buffer mode: (2.27–2.3 V/El): temperature compensation - 9.9 mV/℃.

dimensions (± 1 mm)

• length: 97 mm.
• Width: 24 mm.
• Height: 52 mm.
• Full height: 58 mm.
• weight (± 3 %): 0.3 kg.
