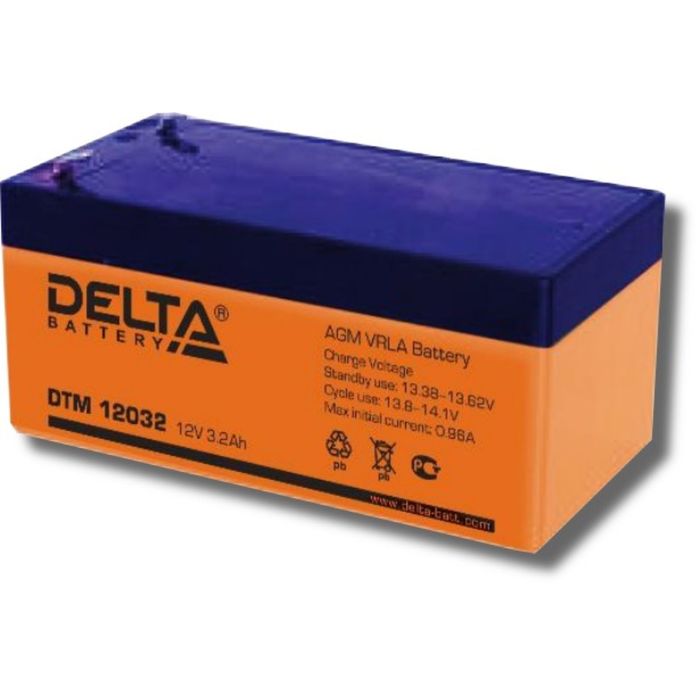

Battery Delta DTM12032, 12 V, 3.2 A/h

Use the lead-acid battery DTM120032 for the uninterrupted operation of devices connected to it in low-current systems. It guarantees a backup autonomous power supply for disorders in the mains.

Advantages:

• AGM technology production provides high energy density and low self -discharge rate;
• a large degree of gas recombination (99 %) guarantees small discharge;
• A sealed design excludes the possibility of electrolyte leakage;
• meets the requirements of UL, IEC, GOST P;
• The battery housing is made of ABS plastic, which does not support burning;
• does not require maintenance and control of the level of electrolyte;
• Pig plates alloyed with calcium provide low self -discharge and high constructive grill strength;
• There are no restrictions during air transportation.

it is used as a source of uninterrupted nutrition in the organization of security and fire alarms, telecommunication systems, as well as for medical and other equipment.

• Nominal voltage: 12 V.
• The number of elements: 6.
• Service life: 6 years.
• self -discharge (at 20 ℃): 3 % capacity per month.
• The internal resistance of a completely charged battery (25 ℃): 68 MOM.

• 20-hour category (0.16 a, 1.75 V/El): 3.2 Ahh.
• 10-hour category (0.298 A, 1.75 V/El): 2.98 Ahh.
• 5-hour discharge (0.56 a, 1.75 V/El): 2.8 Ahh.

The operating range of temperatures

• category: from –20 to +60 ℃.
• charge: from –10 to +60 ℃.
• Storage: from –20 to +60 ℃.
• The maximum discharge current (at 25 ℃) 48 A (5 s).
• Cyclic mode: (2.3–2.35 V/El): maximum charging current - 0.96 A, temperature compensation - 30 mV/℃.
• Buffer mode: (2.23–2.27 V/El): temperature compensation - 19.8 mV/℃.

dimensions (± 1 mm)

• length: 134 mm.
• Width: 67 mm.
• Height: 61 mm.
• Full height: 67 mm.
• weight (± 3 %): 1.35 kg.
