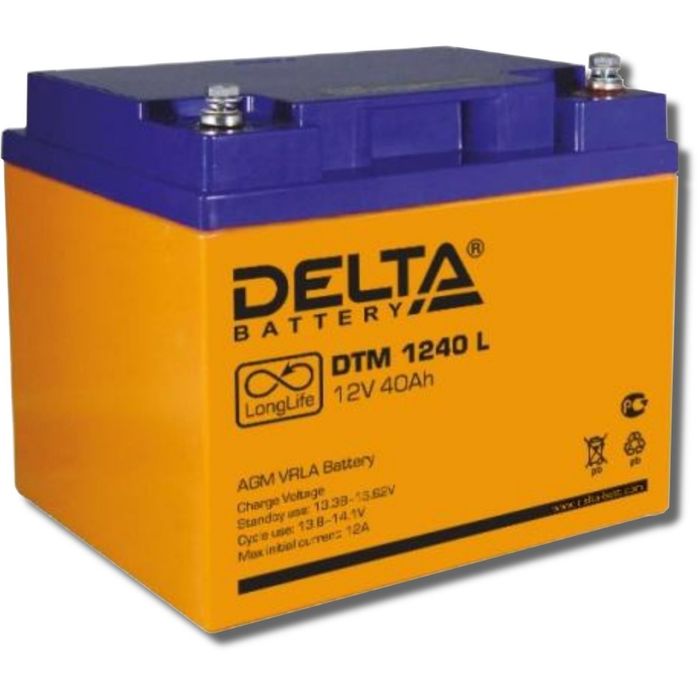

Battery Delta DTM1240 L, 12 V, 40 A/h

Use the lead-acid battery Delta DTM1240 L for the uninterrupted operation of devices connected to it in low-current systems. It guarantees a backup autonomous power supply for disorders in the mains.

Advantages:

• AGM technology production provides high energy density and low self -discharge rate;
• a large degree of gas recombination (99 %) guarantees small discharge;
• A sealed design excludes the possibility of electrolyte leakage;
• safety valves reset excess pressure that occurs inside the battery;
• does not require maintenance and control of the level of electrolyte;
• meets the requirements of UL, IEC, GOST P;
• The battery housing is made of ABS plastic, which does not support burning;
• Pig plates alloyed with calcium provide low self -discharge and high constructive grill strength;
• The service life is 12 years;
• There are no restrictions during air transportation.

it is used as a source of uninterrupted nutrition in the organization of security and fire alarms, telecommunication systems, as well as for medical and other equipment.

• Nominal voltage: 12 V.
• The number of elements: 6.
• Service life: 10-12 years.
• self -discharge (at 20 ℃): 3 % capacity per month.
• Internal resistance of a completely charged battery (25 ℃): 9.7 MOM.

Nominal capacity (25 ℃)

• 10-hour category (4 A, 1.80 V/El): 40 Ah.
• 5-hour category (6.83 a, 1.75 V/El): 34.15 Ahh.
• 1-hour category (24.9 a, 1.60 V/El): 24.9 Ah.

The operating range of temperatures

• category: from –20 to +60 ℃.
• charge: from –10 to +60 ℃.
• Storage: from –20 to +60 ℃.
• The maximum discharge current (at 25 ℃): 400 A (5 s).
• Cyclic mode: (2.3–2.35 V/El): maximum charging current - 12 A, temperature compensation - 30 mV/℃.
• Buffer mode: (2.23–2.27 V/El): temperature compensation - 19 mV/℃.

dimensions (± 1 mm)

• length: 198 mm.
• Width: 166 mm.
• Height: 170 mm.
• weight (± 3 %): 14 kg.
