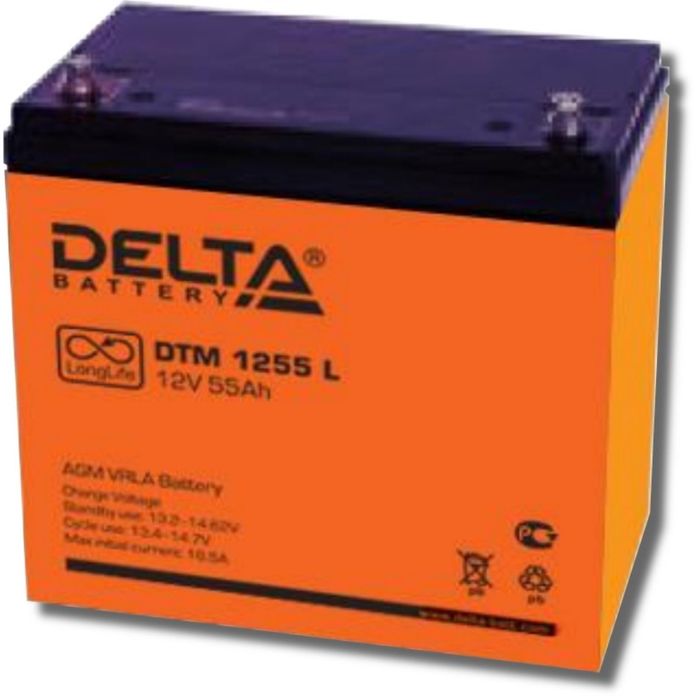

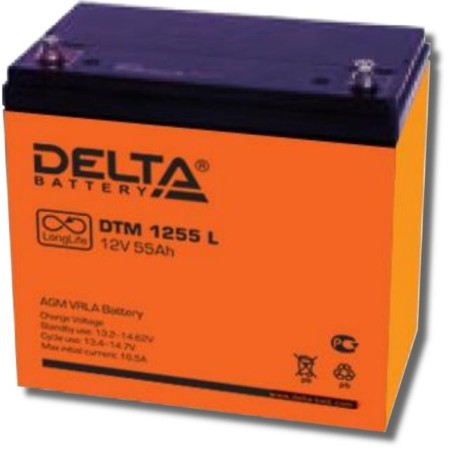

Battery Delta DTM1255 L, 12 V, 55 A/h

Use the lead-acid battery Delta DTM1255 L for the uninterrupted operation of devices connected to it in low-current systems. It guarantees a backup autonomous power supply for disorders in the mains.

Advantages:

• AGM technology production provides high energy density and low self -discharge rate;
• a large degree of gas recombination (99 %) guarantees small discharge;
• A sealed design excludes the possibility of electrolyte leakage;
• safety valves reset excess pressure that occurs inside the battery;
• does not require maintenance and control of the level of electrolyte;
• meets the requirements of UL, IEC, GOST P;
• The battery housing is made of ABS plastic, which does not support burning;
• Pig plates alloyed with calcium provide low self -discharge and high constructive grill strength;
• The service life is 12 years;
• There are no restrictions during air transportation.

it is used as a source of uninterrupted nutrition in the organization of security and fire alarms, telecommunication systems, as well as for medical and other equipment.

• Nominal voltage: 12 V.
• The number of elements: 6.
• Service life: 10-12 years.
• self -discharge (at 20 ℃): 3 % capacity per month.
• The internal resistance of a completely charged battery (25 ℃): 7 MOM.

• 10-hour category (5.5 A, 1.80 V/El): 55 Ah.
• 5-hour category (9.23 A, 1.75 V/El): 46.15 Ahh.
• 1-hour category (35.1 A, 1.60 V/El): 35.1 Ahh.

The operating range of temperatures

• category: from –20 to +60 ℃.
• charge: from –10 to +55 ℃.
• Storage: from –10 to +50 ℃.
• The maximum discharge current (at 25 ℃): 550 A (5 s).
• Cyclic mode: (2.3–2.35 V/El)
The maximum charging current is 16.5 A. The temperature compensation is 30 mV/℃.
• Buffer mode: (2.23–2.27 V/El) Temperature compensation - 19 MV/℃.

dimensions (± 1 mm)

• length: 239 mm.
• Width: 132 mm.
• Height: 205 mm.
• Full height: 210 mm.
• weight (± 3 %): 17.5 kg.
