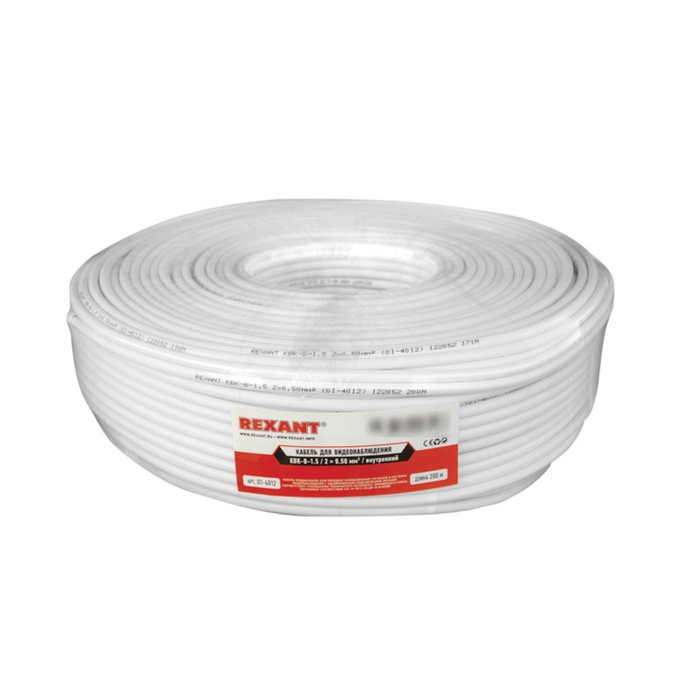

Bay Cable KVK-B-B-1.5+2x0.50 mm² (CU/CU) White, 200 m, rexant

KBK-B-1.5+2x0.50 mm² Cable is a white rexant designed to transmit television signals in video surveillance systems while connecting and/or transmission of control signals.

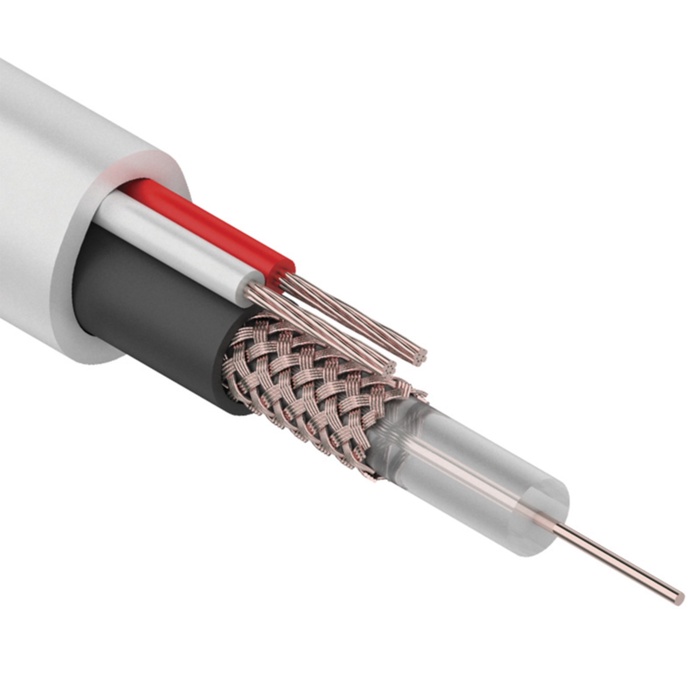

Cable consists of a radio frequency (mini coaxial) cable and core of power united under a single shell.

The coaxial cable consists of a copper monolithic conductor, a dielectric of polyethylene PE, an external conductor of copper veins in the form of a braid and shell of PVC, an analogue of the cable (RK 75 -1.5). Line for power (copper) is multi -core, with a cross section of 0.50 mm² in PVC isolation. The operating voltage of conductive core up to 600 V. The total shell from PVC, the cable diameter 6.3 mm.

The use of the cable KBK-B-1.5+2x0.50 mm² Rexant regulates the certificate of conformity of the Customs Union (Eac).

Cable KVK without loss and interference transfers a video signal and provides the supply of power supply to a distance not exceeding 150 m.
