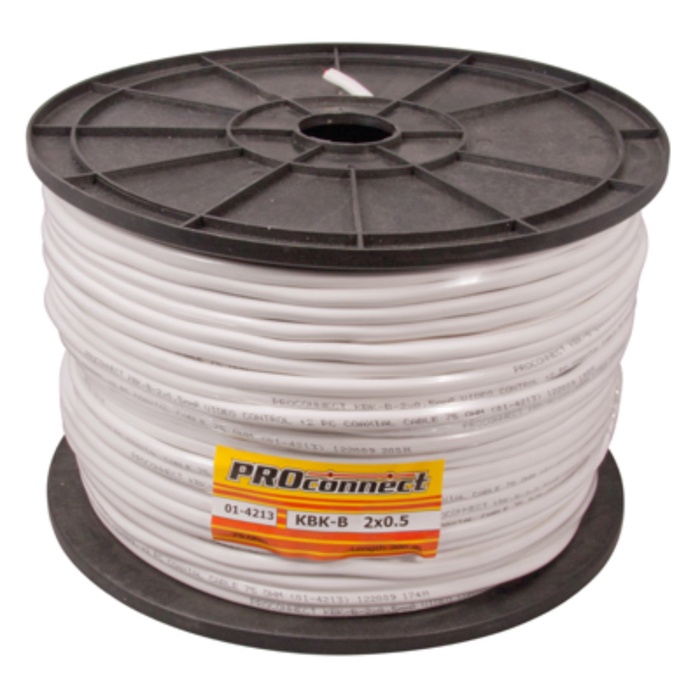

Bay Cable KVK-V-2+2x0.50 mm² (CU/CU) White, 200 m, Proconnect
KVK-B-2+2x0.5 mm² ProConNECT cable is designed to transmit television signals in video surveillance systems while connecting and/or transmission of control signals.

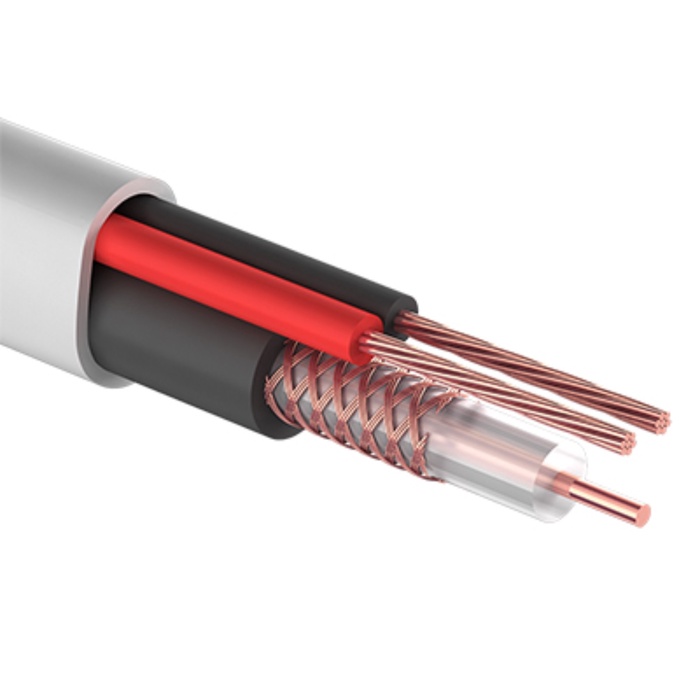

Cable consists of a radio frequency (coaxial) cable and Laying power, united under a single shell.
The coaxial cable consists of a copper monolithic conductor, a dielectric made of polyethylene PE, an external conductor made of copper cores in the form of a braid and shell of light-stabilized polyethylene PE, an analogue of cable (RK 75-2-2 -11). Living diet (copper) multi -core, with a cross section of 0.5 mm² in PVC isolation. The operating voltage of conductive cores up to 600 V. The total shell from PVC and a cable diameter of 7 mm.
The use of the KVK-V-2+2x0.5 mm² ProConnect cable regulates the certificate of compliance with the Customs Union (EAC).
KVK cable without loss and interference transfers a video signal and provides the supply of power supply to a distance not exceeding 150 m.
| Characteristics | |
| A country | China |
| Height, see | 0.7 |
| Length, see | 20000 |
| Operation temperature, ° C. | From -40 to 60 ° C |
| The material of the vein | Copper |
| The number of veins | 2 |
| Width, see | 0.7 |
