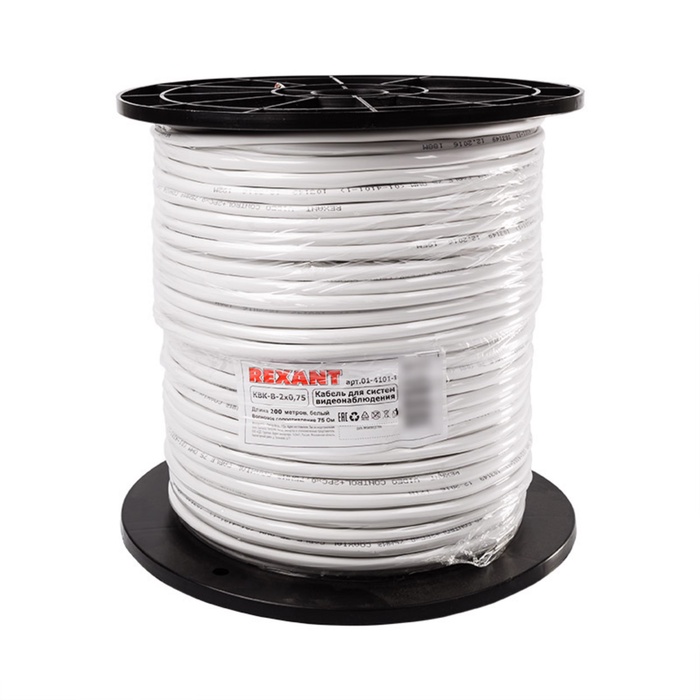

Bay Cable KVK-V-2+2x0.75 mm² (CU/CU) White, 200 m, rexant
KVK-V-2+2x0.75 mm² Rexant cable is designed to transmit television signals in video surveillance systems while connecting the power and/or transmission of control signals.

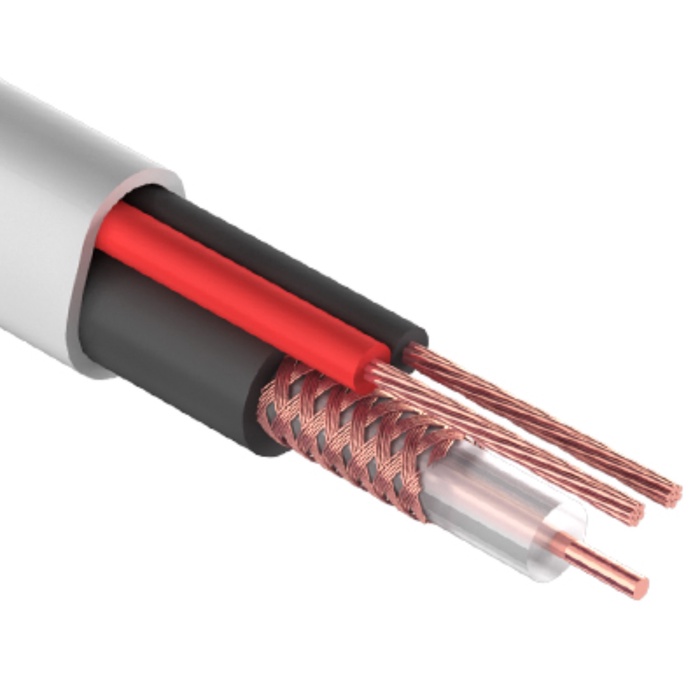

Cable consists of a radio frequency (coaxial) cable and Laying power, united under a single shell.
The coaxial cable consists of a copper monolithic conductor, a dielectric made of polyethylene, an external conductor made of copper cores in the form of a braid and a PVC shell, an analogue of a cable (RK-75-2-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11-11 ). Laying power (copper) multi -core, with a cross section of 0.75 mm² in PVC isolation. The operating voltage of conductive core up to 600 V. The total shell from PVC. The diameter of the cable is 8 mm.
The use of the KVK-B-2+2x0.75 mm² Rexant cable regulates the certificate of conformity of the Customs Union (EAC). provides the supply of power supply to a distance not exceeding 200 m.
| Characteristics | |
| A country | China |
| Height, see | 0.8 |
| Length, see | 20000 |
| Operation temperature, ° C. | From -40 to 60 ° C |
| The material of the vein | Copper |
| The number of veins | 2 |
| Width, see | 0.8 |
