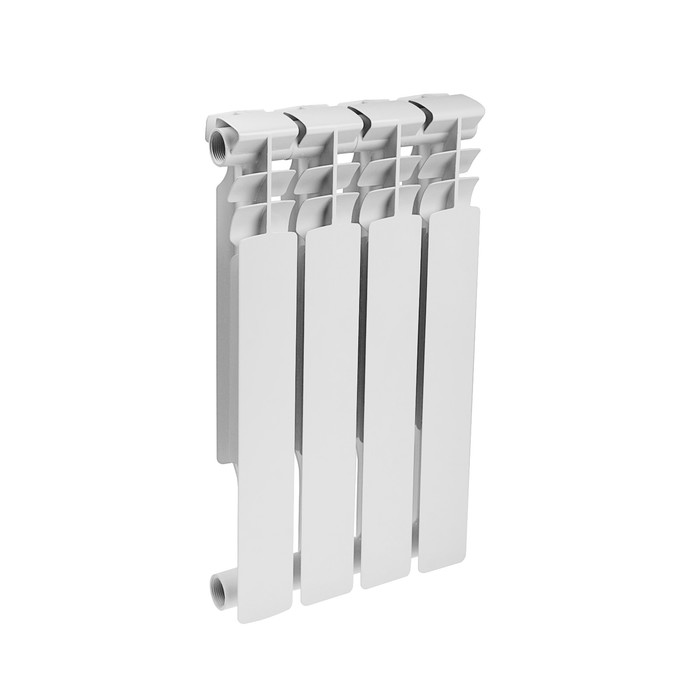

Bimetallic radiator Oasis, 500 x 80 mm, 4 sections

OASIS bimetallic radiator is used to heating multi -storey buildings. The design is made of an aluminum case and a steel core. This combination of materials makes this model strong and durable: the device is as resistant to excessive pressure with hydraulic shocks in heating systems. The design in the form of vertical and horizontal ribs improves air passage and increases heat transfer.

The advantages

• withstands high pressure in the system;
• The corrosion stability of steel, designed for contact with tough tap water;
• A modern quality control system at various stages.

The characteristics

• Work pressure: 25 atm.
• Test pressure: 35 atm.
• heat transfer: 162 watts.
• Section capacity: 0.3 l.
• Section weight (net/gross): 1.43/1.53 kg.
• Interssection distance: 500 mm.
• Height: 570 mm.
• depth: 80 mm.
• Width: 80 mm.
• Guarantee: 15 years.
