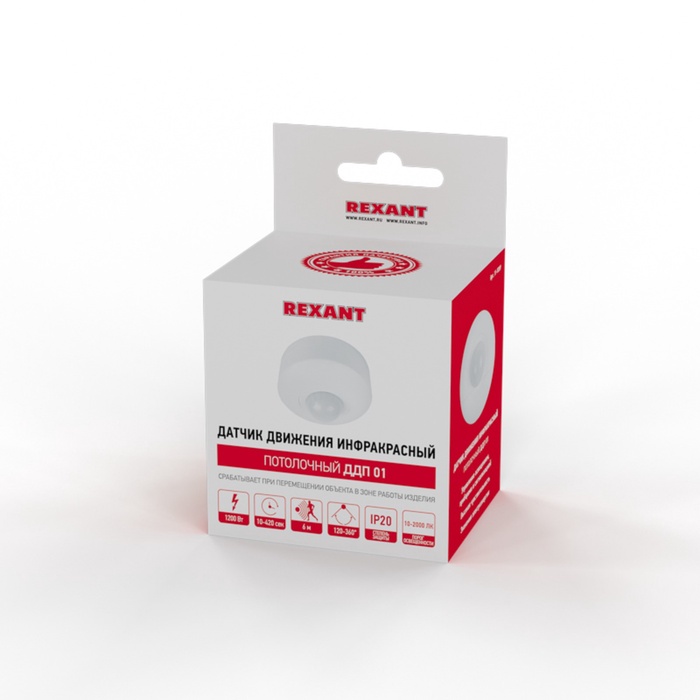

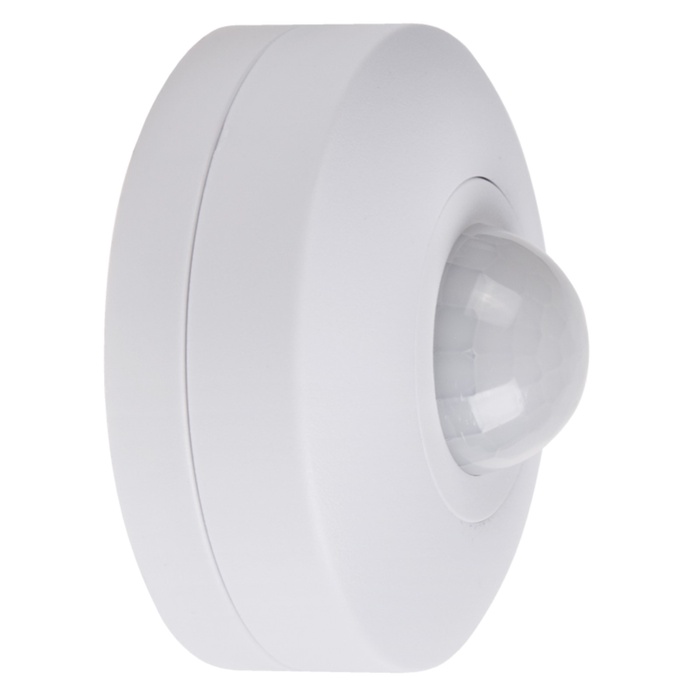

Ceiling sensor ceiling DDP 01, 120 °/360 °, 1200 W, 10-2000 lux, 6 m, 10-420 sec. Rexant 1080758
Sensors are designed to automatically turn on and off the load in a given time interval, depending on the presence of moving objects in the area of detection of the sensor and the level of illumination.
the principle of operation of infrared motion sensors is to detect changes in infrared (thermal) radiation of surrounding objects.
Each object that has a temperature emits infrared radiation, which through the lens system or special concave segmented mirrors enters the sensitive sensor located inside the motion sensor that records this.

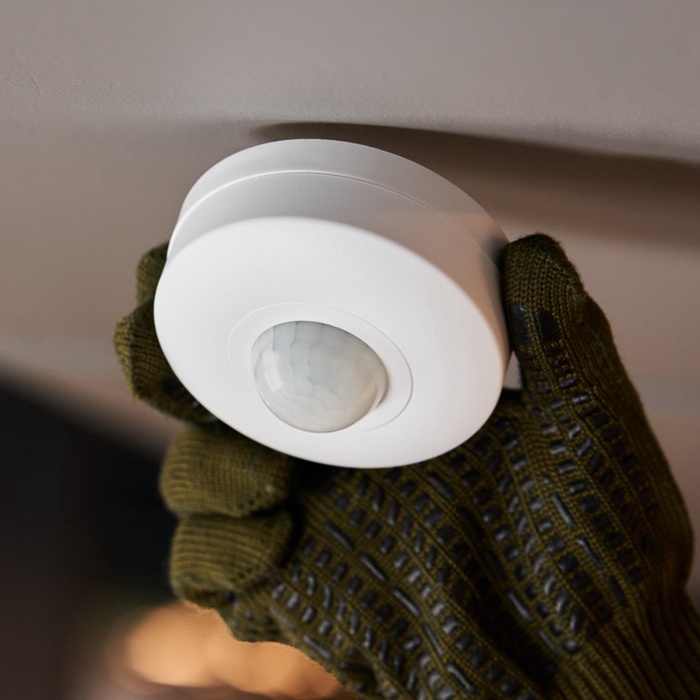

The sensor is intended for installation on the ceiling.
Viewing angle: 120 ° (horizon)/360 ° (vert.)
Voltage: 220-240 V
Power: 1200 W
threshold of illumination: 10-2000 lc
range: up to 6 m
Ending to inclusion: 10-420 sec
Range of operating temperatures: –25...+40 ° C
degree of protection: ip20
| Characteristics | |
| A country | China |
| Color | White |
| Degree of protection | IP20 |
| Detection angle, degrees | 360 |
| Material | Plastic |
| Method of installation | Open |
| Operation temperature, ° C. | From -25 to 40 ° C |
| Power, W | 1200 |
| Range, m | 6 |
| Tension, c | 240 |
| Type of installation | Overhead |
| Type of notification | Light |
| Type of power | From the network 220 V |
| Type of voltage | AC |
| View | Motion sensors |
| Viewing angle, hail | 360 |
