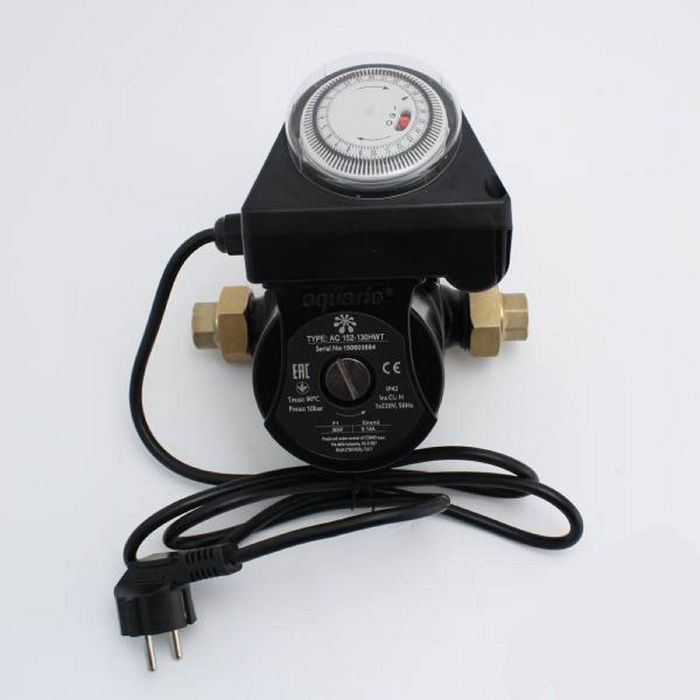

Circulation pump Aquario AC 152-130HWT, for hot water

Aquario circulation pump is designed for use in hot water supply systems. This model has a timer for turning on at a convenient time.

Characteristics

• Submit: up to 1.6 m³/h.
• pressure: up to 2.2 m.
• The attachment diameter: 1/2 ″.
• pump housing: cast iron with internal corrosion -resistant enameled coating.
• Working wheel: Technopolymer.
• engine shaft, bearings: ceramics.
• Stator's sleeve: stainless steel.
• electric motor: single -phase, 220 V, 50 Hz, with a capacitor and built -in thermal protection relay.
• Isolation: class h.
• Class of protection: IP 44.
• Number of speeds: 1.
• The maximum content of solid inclusions in pumped liquid: not more than 0.1 %.
• The maximum linear size of the particles: not more than 0.2 mm.
• The maximum allowable pressure in the pump housing: 10 bar.
• The temperature of the pumped liquid: up to +90 ° C.
• Environmental temperature: from +1 to +40 ° C.
