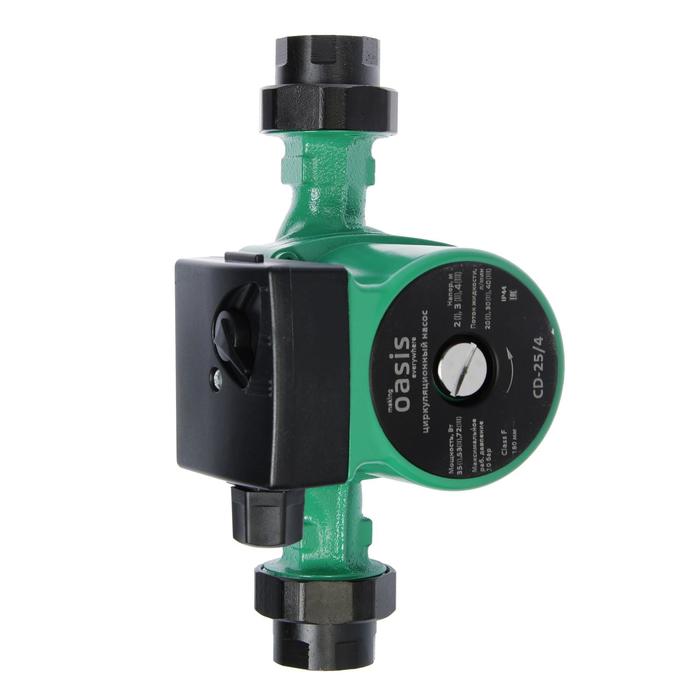

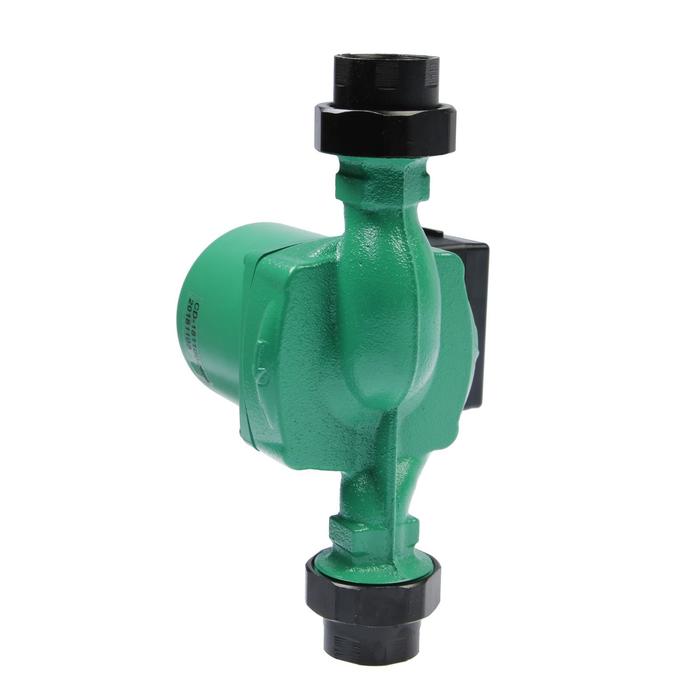

Circulation pump Oasis C 25/4, pressure 4 m, 40 l/min, 35/53/72 WT

OASIS pump is used to ensure the circulation of the coolant in hot water and heating systems, as well as “warm floors”.

is equipped with a special wet rotor, due to which the noise level is significantly reduced during its operation. The case is made of heat -resistant composite material, which guarantees the unit anti -corrosion stability and durability. A simple electrical connection process and small energy consumption make it indispensable for country houses.

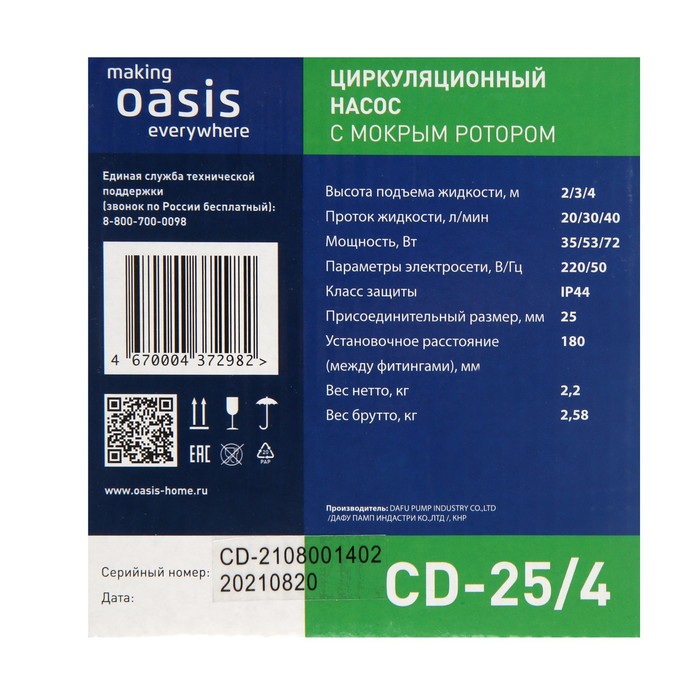

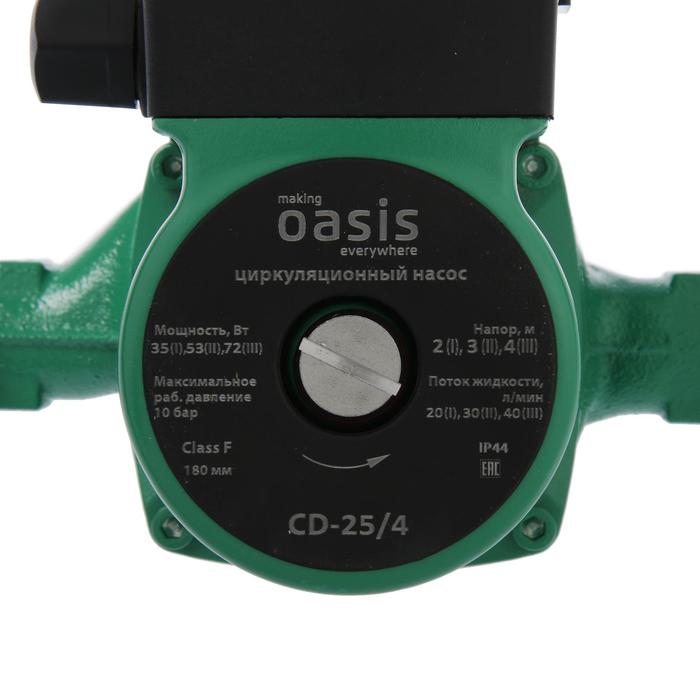

The characteristics

• The height of the lifting of the liquid, m: 2 (i)/3 (II)/4 (III)
• fluid duct, l/l/ min: 20 (i) / 30 (II) / 40 (III)
• power, Tue: 36 (i) / 53 (II) / 72 (III)

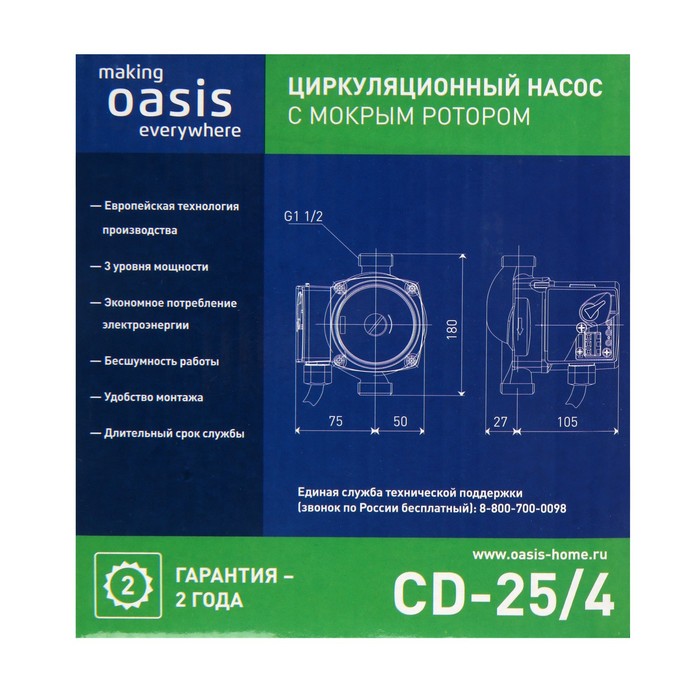

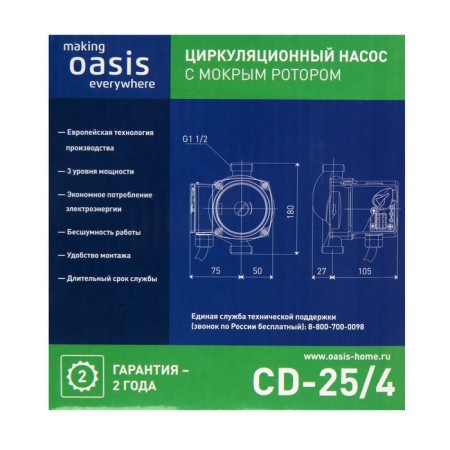

• setting distance (between fittings), mm: 180
• weight, kg: 2.55
• maximum operating pressure, bar: 10
• The temperature of the heating system: from +10 to +100 ° C
• The maximum ambient temperature: +50 ° C
• Number of speeds: 3
• Build material: cast iron.
