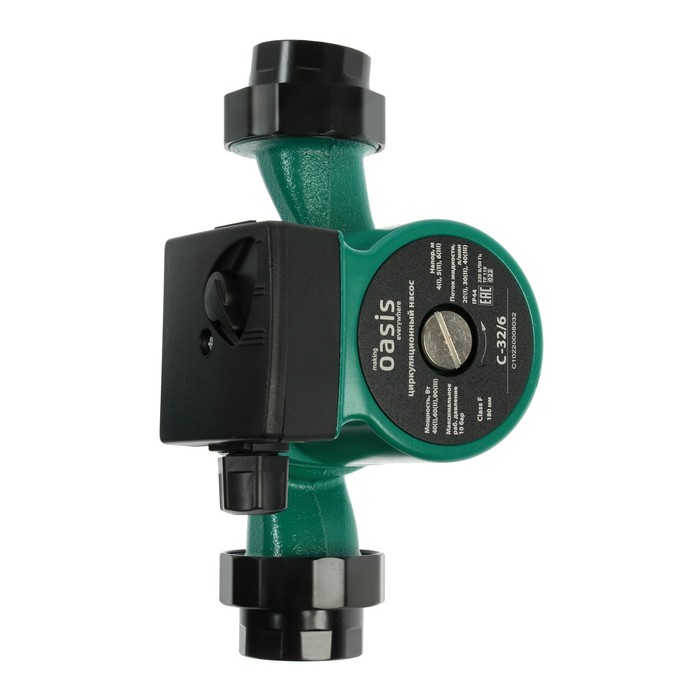

Circulation pump OASIS C 32/6, pressure 6 m, 40 l/min, 40/60/90 watts

OASIS pump is used to ensure the circulation of the coolant in hot water and heating systems, as well as “warm floors”.

is equipped with a special wet rotor, due to which the noise level is significantly reduced during its operation. Working surfaces are made of heat -resistant composite material, which guarantees the aggregate anti -corrosion stability and durability. The simple process of electrical connection and small energy consumption make it indispensable for systems of country houses.

The characteristics

• Model CN-32/6
• Freedom lifting height, M: 3 (I)/5 (II)/6 (III )
• fluid duct, l / min: 20 (i) / 30 (II) / 40 (III)
• power, Tue: 40 (I) / 60 (II) / 90 (III)

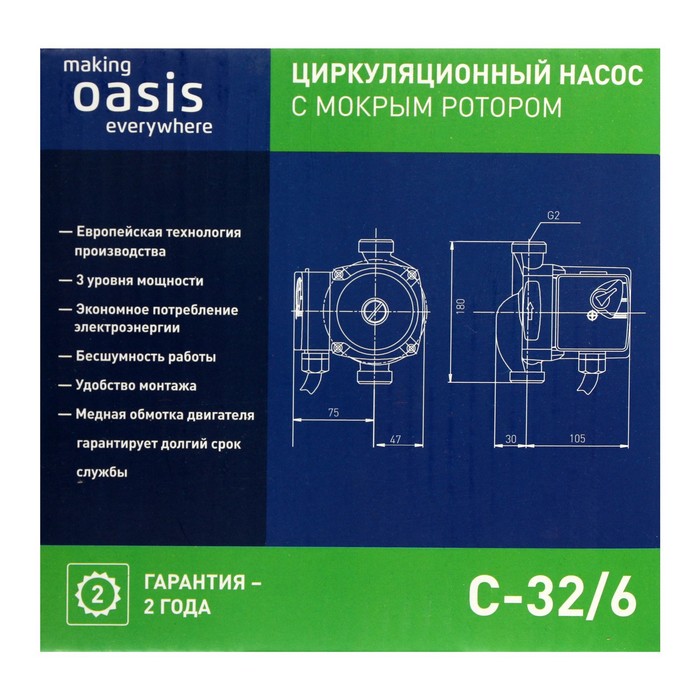

• setting distance (between fittings), mm: 180
• weight, kg: 2.65
• maximum working pressure, bar: 10 < /li>
• heat -heat temperature: from +10 to +100 ° C
• maximum ambient temperature: +50 °
• number of speeds: 3
• Corps material: cast iron.

engine

• single -phase.
• Class of protection: IP54
• class of isolation: F
