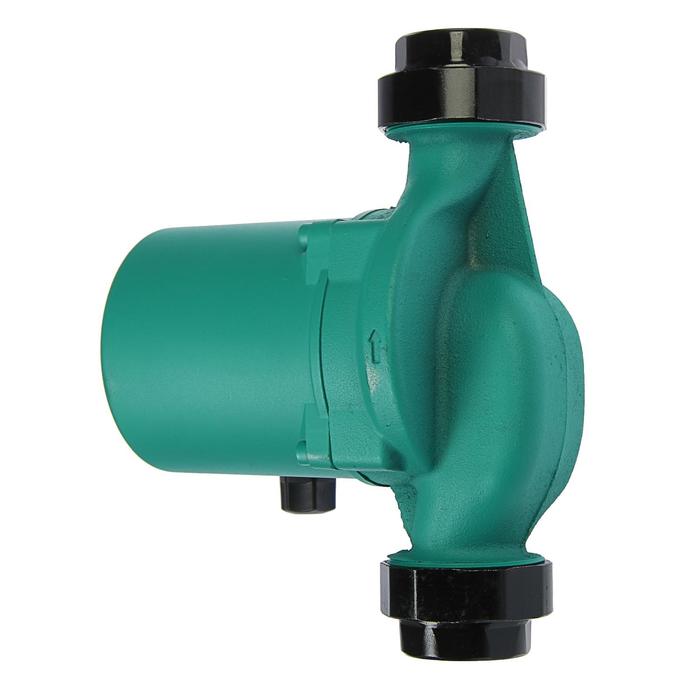

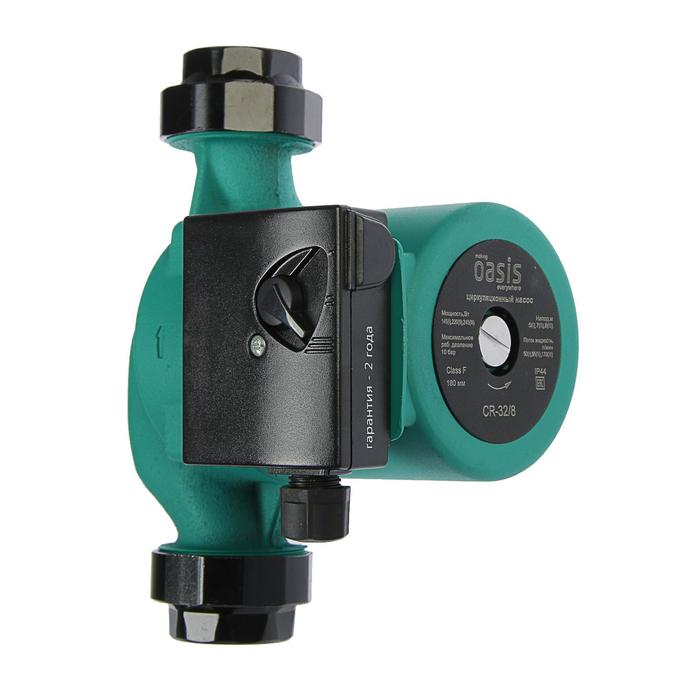

Circulation pump Oasis c 32/8, pressure 8 m, 170 l/min, 145/220/245 WT

OASIS pump is used to ensure the circulation of the coolant in hot water and heating systems, as well as “warm floors.”

is equipped with a special wet rotor, which significantly decreases the noise level during its operation. Working surfaces are made of heat -resistant composite material, which guarantees the aggregate anti -corrosion stability and durability. The simple process of electrical connection and small energy consumption make it indispensable for suburban houses.

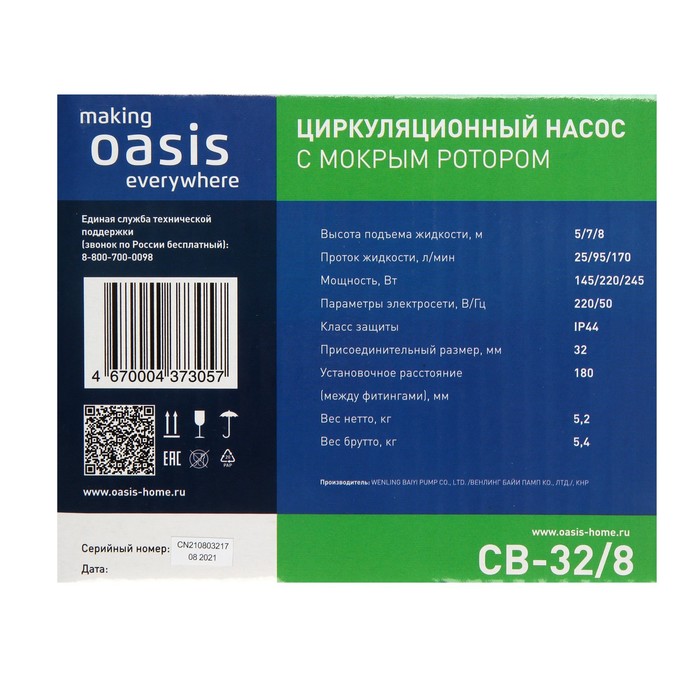

characteristics

• Flure lifting height, M: 5 (I) /7 (II) / 8 (III)
• fluid duct, l / min: 25 (i) / 95 (II) / 170 (III)
• power, vt: 145 (i) / 220 ( II)/245 (III)

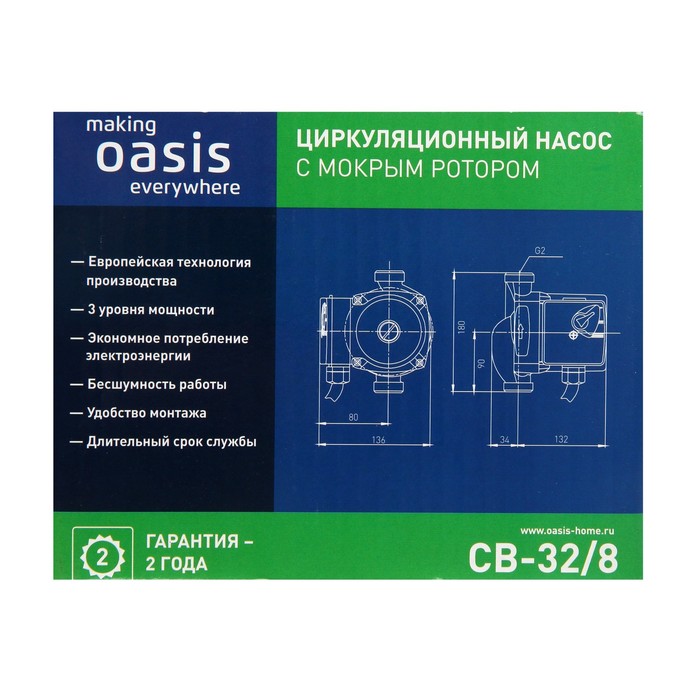

• setting distance (between fittings), mm: 180
• weight, kg: 4.7
• maximum operating pressure, bar, bar : 10
• Heat temperature: from +10 to +100 ° C
• The maximum ambient temperature: +50 °
• number of speeds: 3
• Building material: cast iron.

engine

• single -phase.
• Class of protection: ip54
• Isolation class: F

Guarantee: 2 years.
