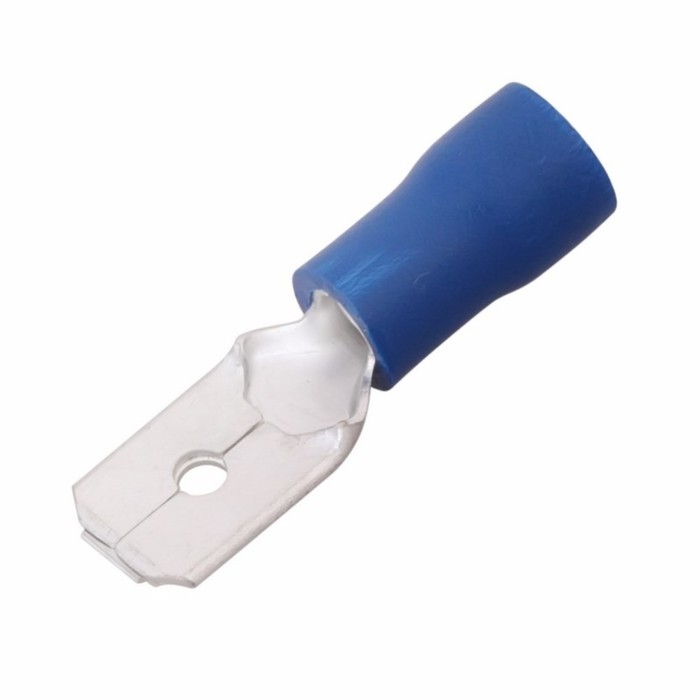

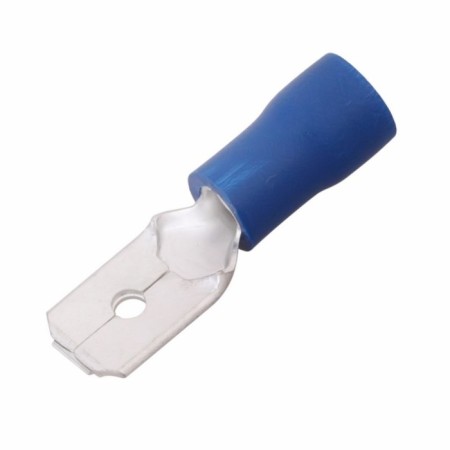

Clement flat Rexant RPI-P 2.5- (6.3)/RPIP 2-6-0.8 plug 6.3 mm 1.5-2.5 mm², blue

The insulated plane terminal (KPI plug - 6.3 mm) 1.5-2.5 mm² Rexant is designed to create a high -quality connection of electrical equipment or connection of wires with each other, which, if necessary, can be disconnected without unnecessary efforts. Such a terminal is used to stop multi-core copper wires when installing mobile electrical contact connections on a rolling stock (car, car, airplane, aircraft and shipbuilding). ) and protective insulator. The metal connector is made of brass, with superficial electrolytic tinning, and the insulator of the terminal of polyvinyl chloride (PVC), which reliably protects the place of squeezing the cable. The squeezing is carried out by special press rolls (ht-301 h art. 12-3014, 12-3014; ht-301 n art.12-3116, 12-3117, 12-3016, 12-3016-4; ht-301 w art.12-3021, 12-3021-4, 12-3121) on top of the protective insulator. Each terminal has a hole that serves as a lock type with a more durable mechanical connection with a nesting connector. The use of isolated flat terminals makes it possible to significantly accelerate electrical work, while it becomes possible to multiply disconnecting and accessing wires.

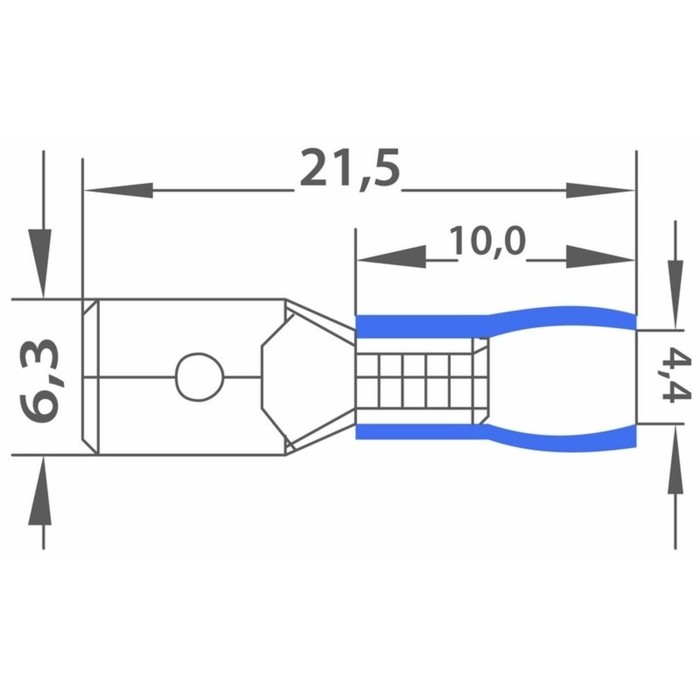

The main characteristics:

• cross-section of applicable wires in the range: 1.5-2.5 mm²;
• working width of the plug: b = 6.3 mm;
• The maximum permissible value of the transmitted current force: 15 a;
• Temperature range: -10... +75 ℃;
• The color of the insulator: blue.
