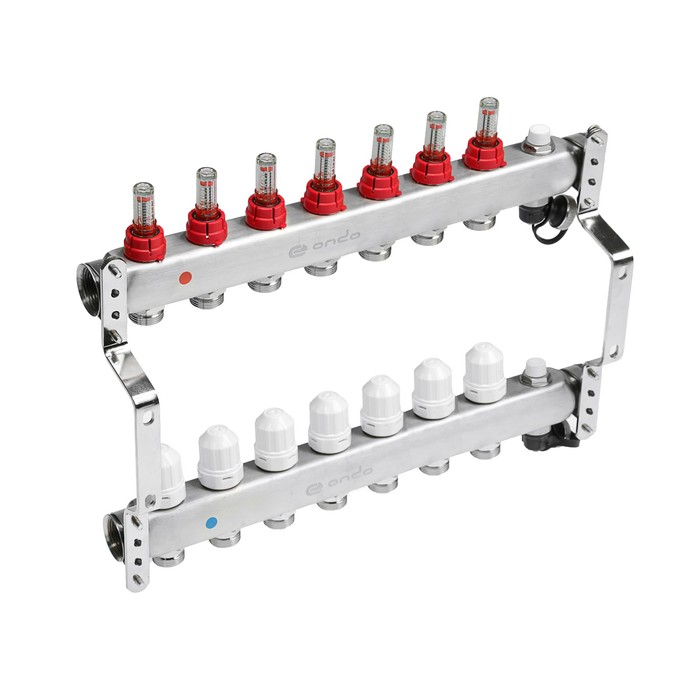

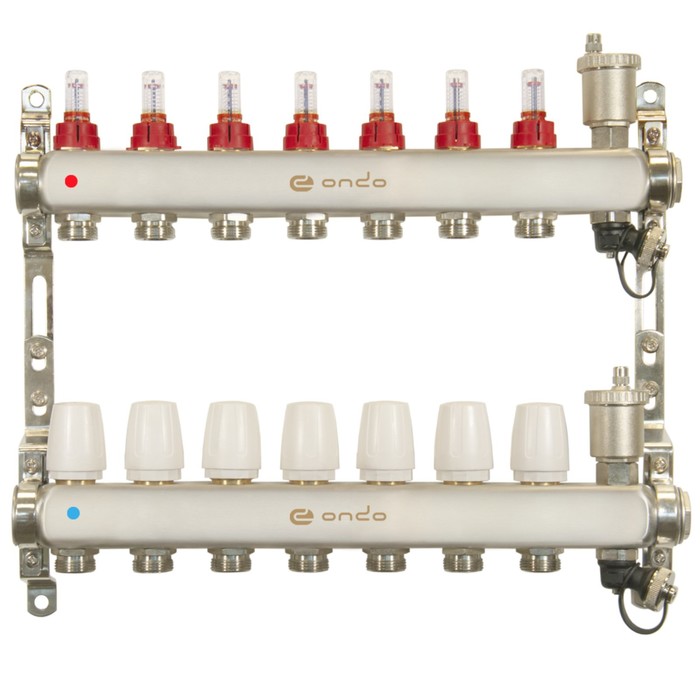

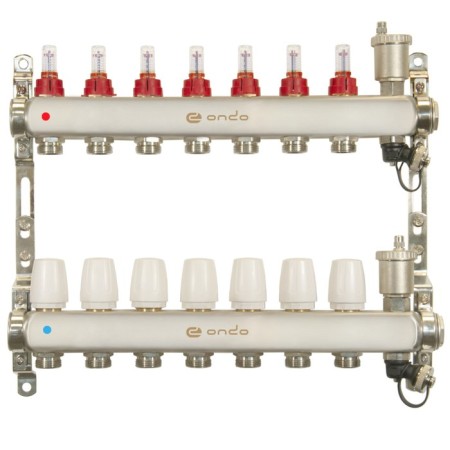

Collector Group ONDO, 1 "X3/4", 7 outputs, with consumables, stainless steel

The collector group made of stainless steel is designed to optimize, control and distribute the coolant in radiator and flooring systems. The device mixes hot and cold liquids. This allows you to adjust the temperature of the warm floor and control its work.

parts of the collector group (flow meters and thermostatic valves) are interconnected using sealing rings and sealed with special anaerobic glue. This allows you to abandon additional sealing and sealing materials during installation.

Features

• Diameter of the conditional passage when connecting to the water supply system: 1 ″.
• diameter diameter Connections of seizures for wiring: 3/4 ″, Euroconus.
• Maximum operating pressure: 10 bar.
• The temperature range of the coolant: +5... +110 onic.
< LI> Average full service life: 25 years.
• Conditional bandwidth of thermostatic valve: 2.6 m³/h.

The model can work on a water or ethylene glycol of the coolant from The maximum content of glycol is not more than 45 %.

the group comes in pre -assembled form. The air vent and drainage crane are built into the case. The body material is stainless steel. Installation brackets are included. The pump-mixing node is acquired separately.
