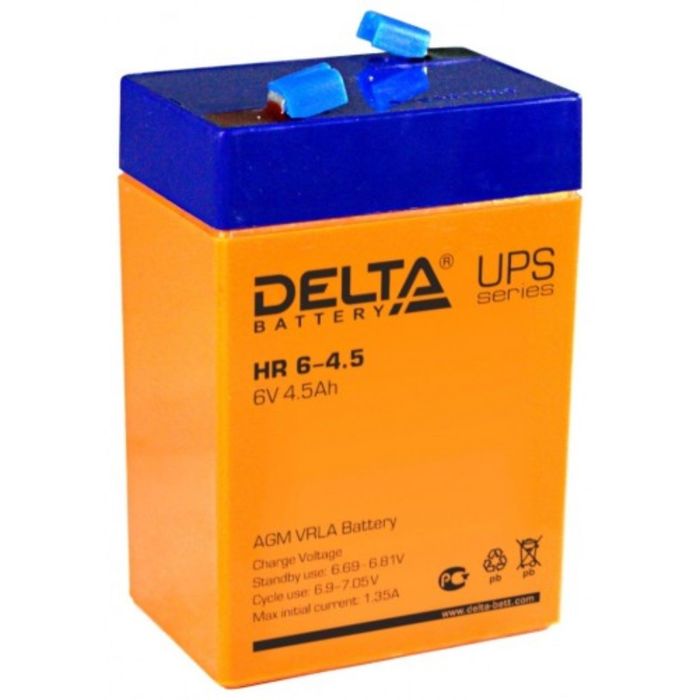

Delta HR6-4.5, 6 V, 4.5 A/h battery

Use the lead-acid battery Delta HR6-4.5 to ensure uninterrupted operation of devices connected to it in low-current systems. It guarantees a backup autonomous power supply for disorders on the network.

Functional advantages

• AGM technology production provides greater energy density and small self -discharge speed.
• High degree of recombination (99 %) guarantees low gas production.
• The hermetic design excludes the possibility of electrolyte leakage.
• meets the requirements of UL, IEC, GOST r. /Li>
• does not require maintenance and control of the level of electrolyte.
• Pig plates alloyed with calcium provide low self -discharge and high constructive strength of the grill.
• there are no restrictions during air transportation.

it is used as a source of uninterrupted nutrition when organizing a data center, security and fire alarms, telecommunication systems, as well as for medical equipment and other equipment.

• Nominal voltage: 6 V.
• The number of elements: 3.
• service life: 8 years.
• self -discharge (at 20 ℃): 3 % capacity per month.
• The internal resistance of a completely charged battery (25 ℃): 20 MOM.

Nominal capacity (25 ℃)

• 20-hour category (0.225 A, 1.75 V/El): 4.5 Ah.
• 10-hour category (0.427 A, 1.75 V/El): 4.27 Ahh.
• 5-hour category (0.79 a, 1.75 V/El): 3.95 Ahh.

The operating range of temperatures

• category: from –20 to +60 ℃.
• charge: from –10 to +60 ℃.
• Storage: from –20 to +60 ℃.
• The maximum discharge current (25 ℃): 67.5 A (5 s).
• Cyclic mode (2.3–2.35 V/El): the maximum charging current is 1.35 A, temperature compensation - 15 mV/℃.
• buffer regime (2.23–2.27 V/El): temperature compensation - 9.9 mV/℃.

dimensions (± 1 mm)

• length: 70 mm.
• Width: 47 mm.
• Height: 101 mm.
• Full height: 107 mm.
• weight (± 3 %): 0.85 kg.
