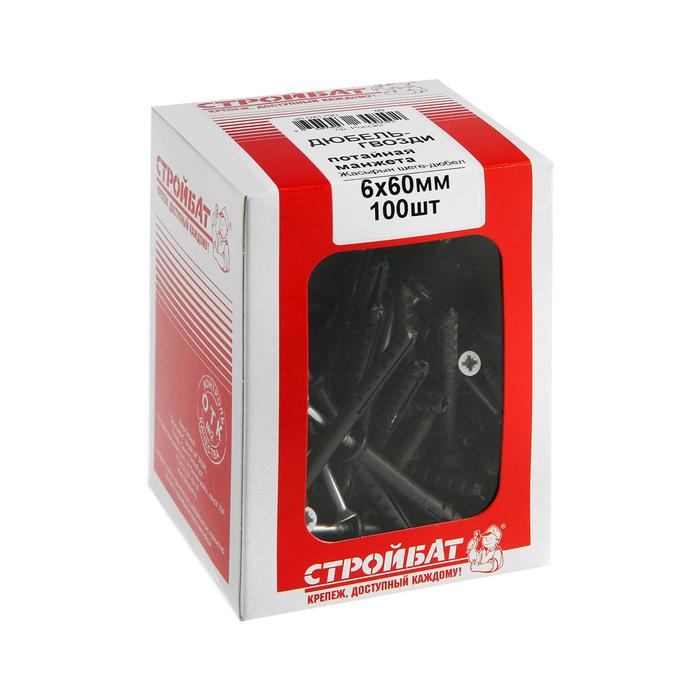

Dowel-gvo "Stroybat", polypropylene, secret cuff, 6x60 mm, 100 pcs
$14.72
In Stock
Size (2)
Characteristics
A country
China
Application
For brick
Application area
Construction
Color
Grey
Dubel diameter, mm
6
Dubel Stroybat is designed to attach various details to concrete, full brick method by through installation.

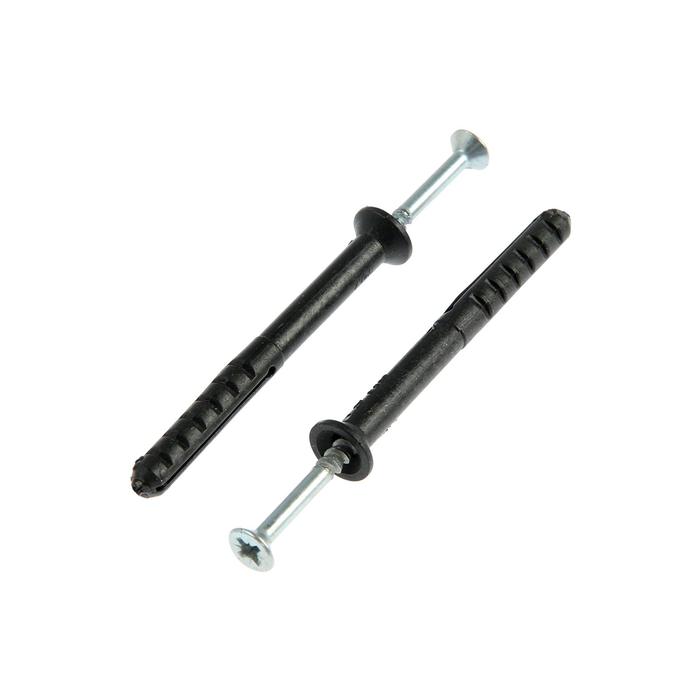

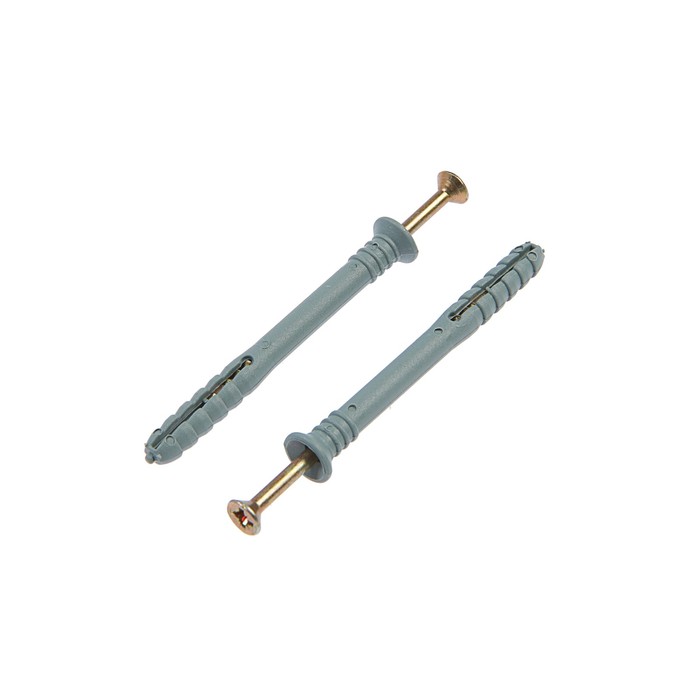

It consists of a dowel with a two -segment spacer with a secret side that prevents dowel to fall into an mounting hole, and a nail with shock carvings.
is used mainly in everyday life and construction.
designed for through installation.
| Characteristics | |
| A country | China |
| Application | For brick |
| Application area | Construction |
| Color | Grey |
| Dubel diameter, mm | 6 |
| Dubel length, mm | 60 |
| Dubel material | Polypropylene |
| In the package, pcs. | 100 |
| Max. The thickness of the fixed part, mm | 30 |
| Min. Cutting force, KN (Concrete B25) | 3.26 |
| Min. drilling depth, mm | 30 |
| Min. pulling force, prince (aerated concrete) | 0.22 - 0.23 |
| Min. pulling force, prince (brick masonry | 0.45 - 0.51 |
| Min. pulling force, prince (concrete B25) | 0.6 - 0.8 |
| Screw/screw diameter, mm | 4 |
| The diameter of the hole for the dowel, mm | 6 |
| The material of the base | Concrete |
| The number of spacer zones | Four -free |
| Type of a slot | PZ |
| Type of cuff | Secret |
| Type of dowel | Expressive |
| Type of methysis | The screw is classic |
| Type side | Secret |
| With a mustache | No |
