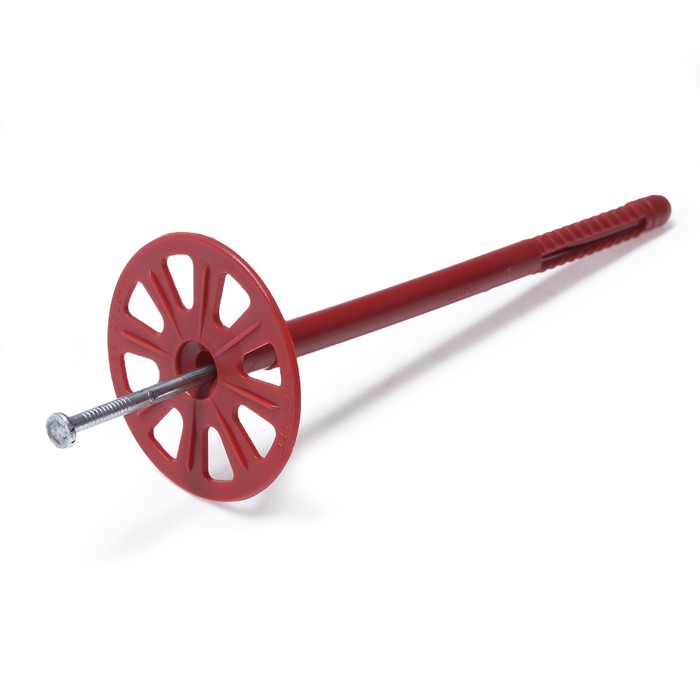

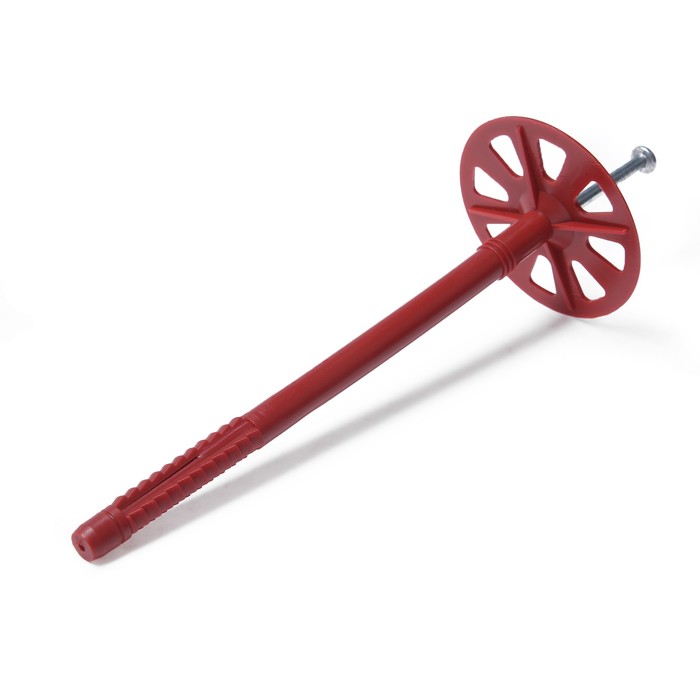

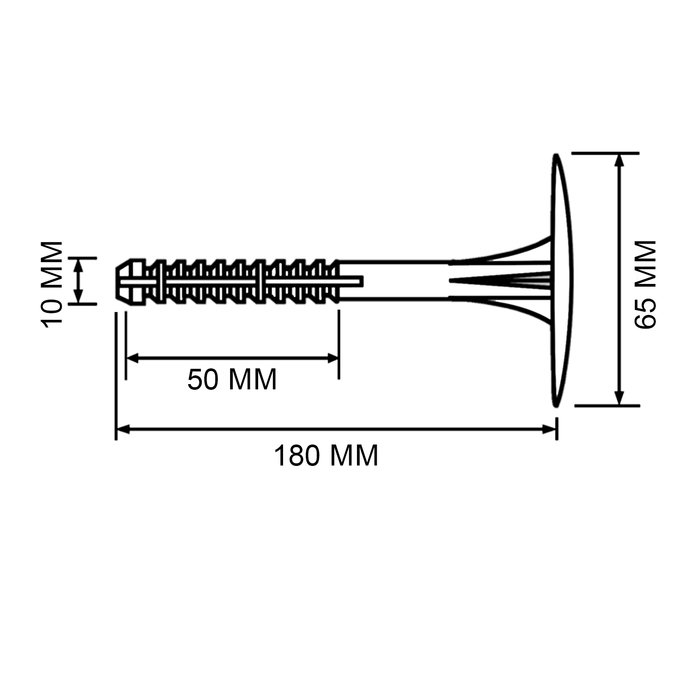

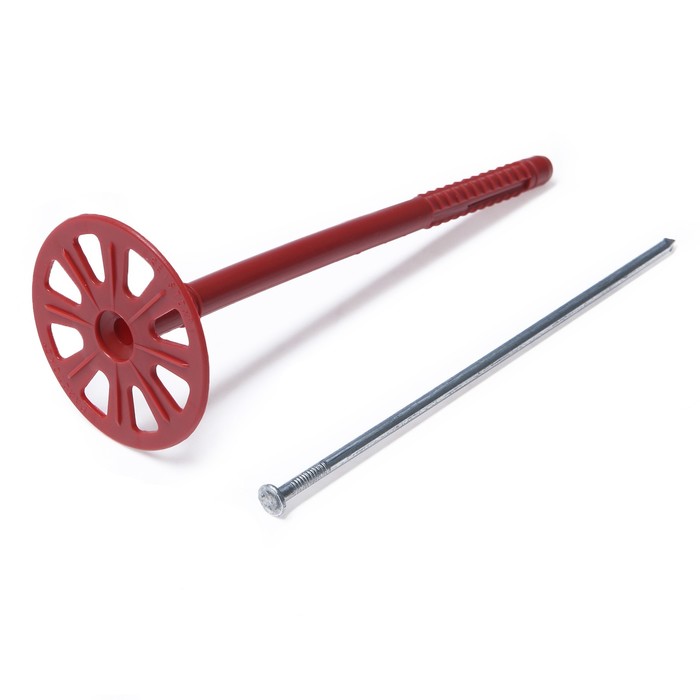

Dubel "Rice tox" DIM, for thermal insulation, with a metal nail, 10x180 mm, 150 pcs

The dowel is designed to attach insulating materials and products up to 200 mm thick to the internal and outer surfaces of the enclosing structures of buildings and in the structure of facade systems. The metal nail is made of galvanized steel. Due to the presence of a three -segment spacer zone, which evenly distributes the pressure inside the hole, the model withstands the load on the jet from 1,300 N or 132.5 kg, depending on the material. Unlike other counterparts, the rifle-tox dowels have an increased diameter-65 mm, which allows you to successfully fix large-eating materials.

Each batch passes a number of laboratory tests and receives a quality passport.

The minimum number of dowels per 1 m² of wall depends on the height of the building and the type of thermal insulation material:

Mineral slab :

• to 16 m: 5-6 pcs.;
• from 16 to 40 m: 6–10 pcs.;
• over 40 m : 8–12 pcs.

a polystyrene foam:

• to 16 m: 4-5 pcs.;
• from 16 up to 40 m: 5-8 pcs.;
• over 40 m: 8–10 pcs.
