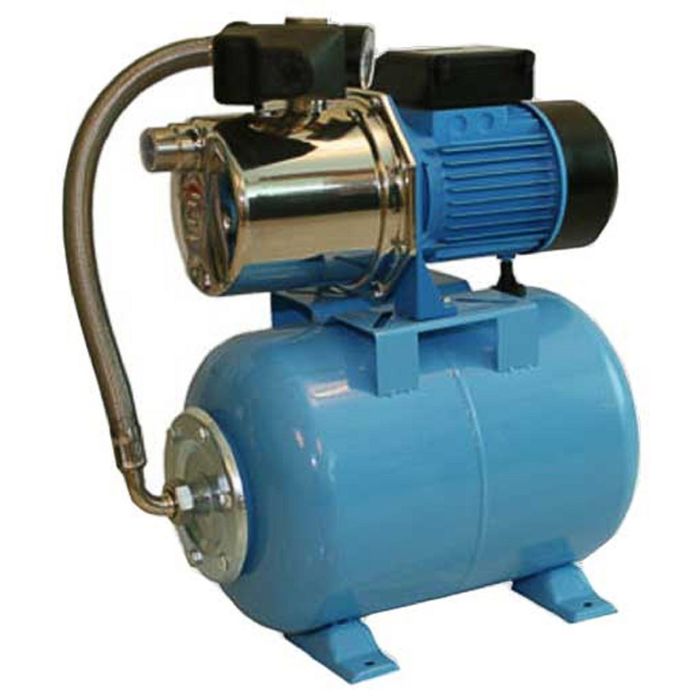

Dzhelex pump-automatic pump Jambo 70/50 N-24 (qmax = 70l/min. Hmax = 50 m)

The surface centrifugal pump-automatic pump is used to maintain the desired pressure in the tap system. Activation or shutdown is performed depending on the flow of fluid.

The built -in ejector guarantees effective absorption. This model does not impose special requirements for the purity of water and the gas dissolved in it. The device operates on the principle of automation of control according to the testimony of the pressure gauge, and also has a hydraulic accumulator and pressure relay.

characteristics

• Consumption: 70 l/min.
• pressure: 50 m.
• Power consumed: 1100 watts.
• Assembly size: 1 ″.
• weight: 16.6 kg.
• The maximum size of the transmitted particles: 0.8 mm.
• The material of the pump body: stainless steel.
• The volume of the accumulator: 24 l.
• Hydro -accumulator material: steel covered with powder paint.
• Maximum suction depth: 9 m.
