Electric boiler EVPM-15.0 Erdo Compact, 15 kW, 220/380 V, with switching

EVPM electric heaters are designed for water heating of buildings that have an open or closed heating system operating at a pressure of not more than 0.2 MPa (20 m of water column) at a voltage of a three -phase network of 380V or a single -phase 220V network.

Elekhokarts can be used as the main or backup source of heat supply. They do not need constant maintenance, environmentally harmful and safe.

the electric heater consists of a case, steel capacity, a control panel fixed inside the case. In the lower part of the container, in the flange, tubular electric heaters are mounted. Electure has a built -in control panel designed to switch the power and regulate the temperature of the heating of the coolant. The heating temperature control regulator is the capillary thermostat, the heat -sensitive element of which is fixed in the middle part of the steel capacity (reservoir). To protect against overheating, the electric heater is equipped with an emergency thermostat with a mechanical return located in the upper part of the boiler flask.

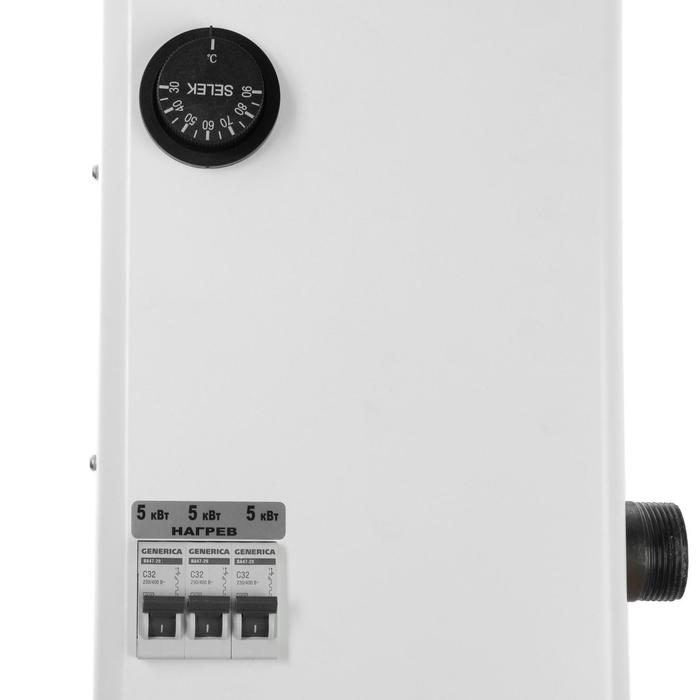

the upper underrous and lower reverse pipes are designed to join the water heating system. On the front side of the water heater is the handle of the temperature controller of the heating of the water and the power of power on the power. On the lower part of the case there is an oil seal for entering a power cable into the water heater. A bolt for fastening the ground wire is located inside the case on the bracket mounting of the boiler flask.
