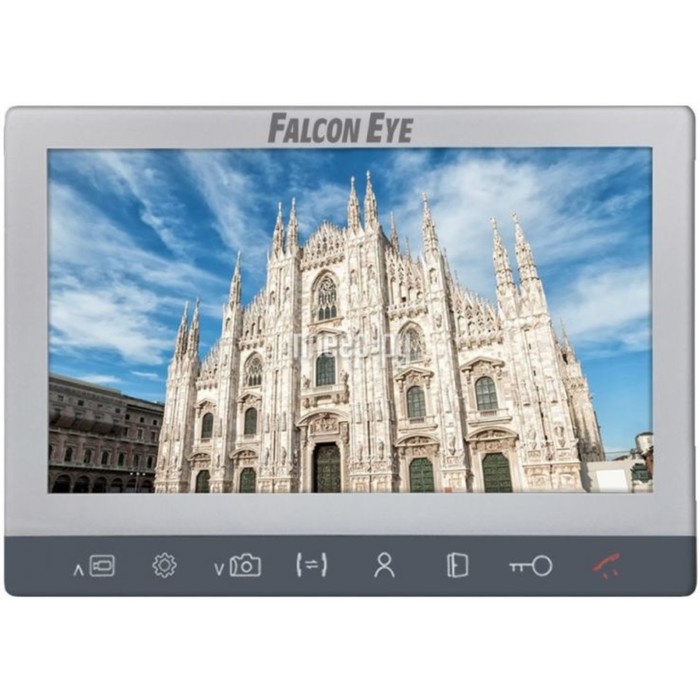

Falcon Eye Milano Plus HD video intercom, white

A multi -format video intercom with high -definition signal support up to 2MP, as well as a regular CVBS video signal. The model is equipped with 10 screens and touch control buttons. Supports the connection of 2 calling panels and 2 additional cameras, as well as up to 5 additional intercom monitors (compatibility of intercom models in intercourse, see the table following the link below). The ability to connect to an entrance coordinate or digital intercom (using a conjugation unit). Its from the network 220V. In addition, the device can be frightened from the external DC12V PSU (for example, for connecting the intercom to a reserve power source).

• screen: 10, 1 TFT IPS
• Resolution: 1024 x 600
• Standard: Pal / NTSC
• Type of signal: CVBS / AHD 720p / AHD 1080P / CVI 720p / CVI 1080P / TVI 720p / TVi 1080p
• Number of calling panels: 2
• Note video cameras: 2
• menu: graphic
• control: sensory buttons
• Scheme Connections: 4x wired
• intercom: there is (targeted)
• Casting: called panel/monitor
• conversation mode: bilateral (semi-duplicate)
• photo frame: there is
• voice message: there is
• call time: 120 seconds
• call melodies: 10 mp3
• support Microsd: 32GB (FAT32)/64GB (Exfat32) - not lower than 10 class
• Record photo/video: there is
• discovery: there is
• standby standing mode : 250ma max
• working mode: 600m Max
• Power: AC 220V (there is a built -in power supply), DC 12V (PSU is purchased separately)
• operating temperature: working temperature: 0... 50 s
• installation: invoice
• dimensions: 249x181, 5x23

• 1. when using several monitors in One system should select monitors with the same type of intercom, otherwise the work of monitors in the intercom will be incorrect
• 2. The calling panel FE-324 does not work with this model of the intercom. As an alternative, you can use the multi-dimensional panels of the AVP-45X series
