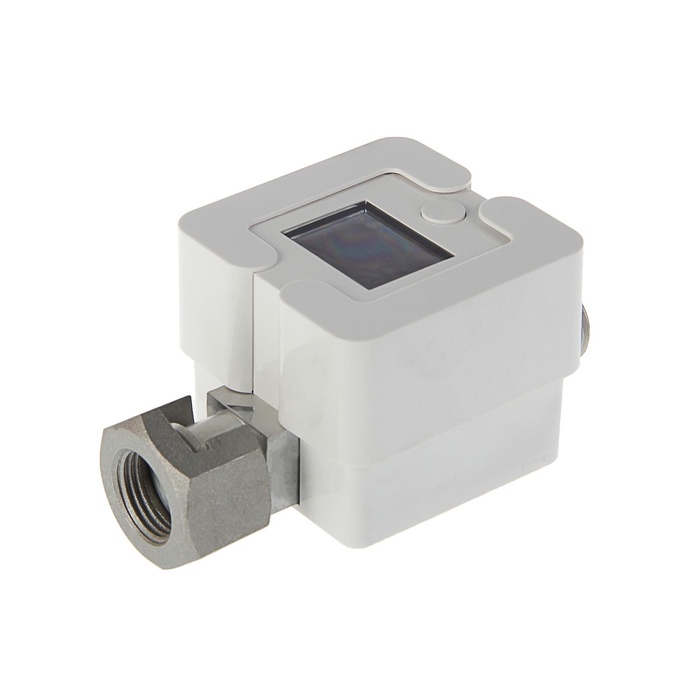

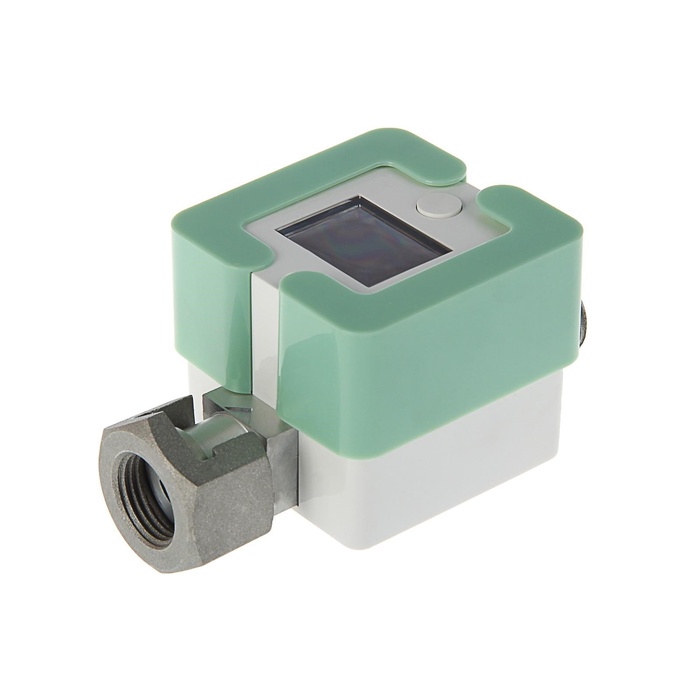

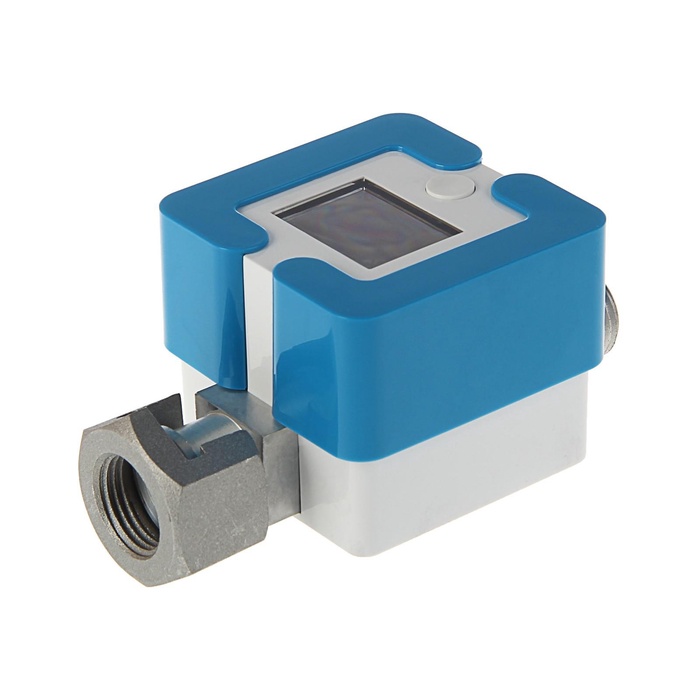

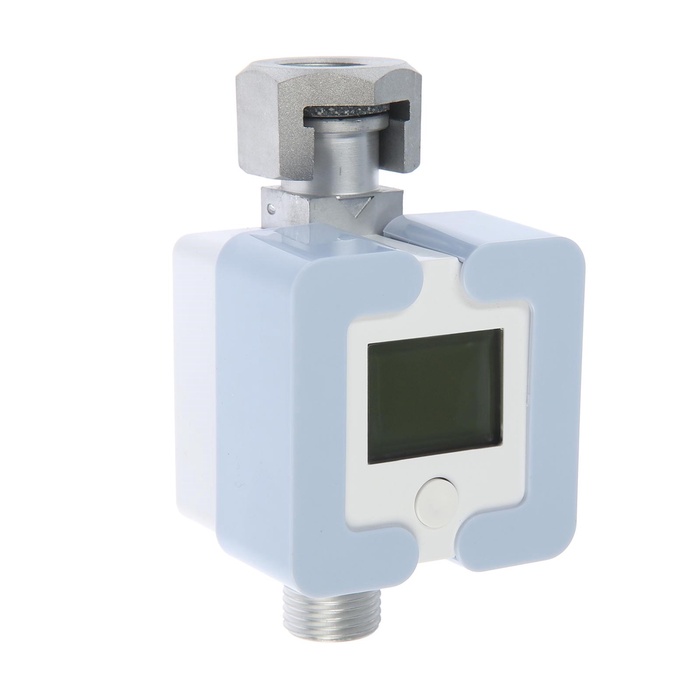

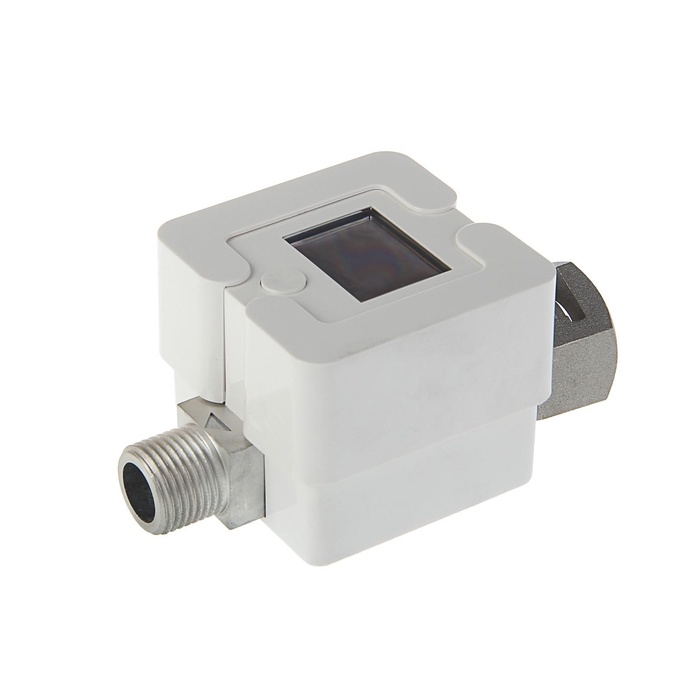

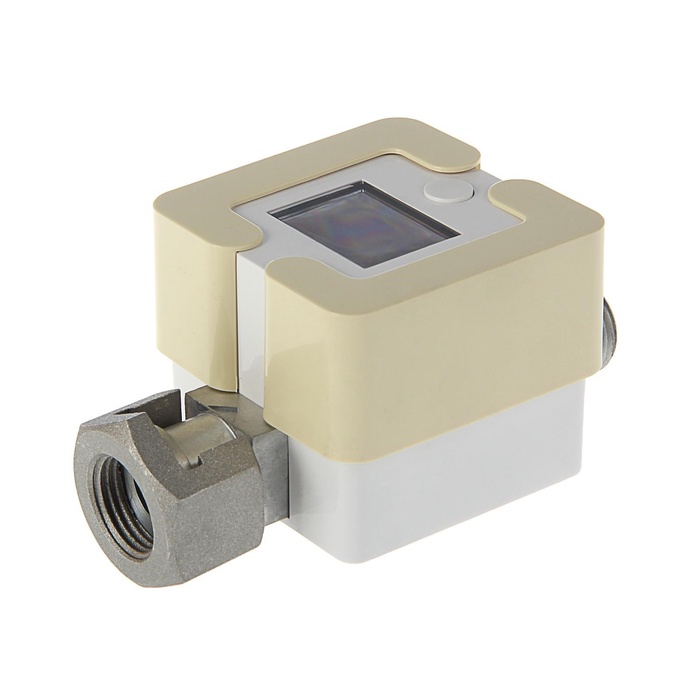

Gas counter "Elekhan" SGB-1.8, 1/2 ", Mix color

The gas meter Elekhan - the principle of action is based on the converting of the gas volume that has passed through the counter into a proportional amount of electrical pulses using an inkjet oscillation generator, followed by the electronic gas measurement block.

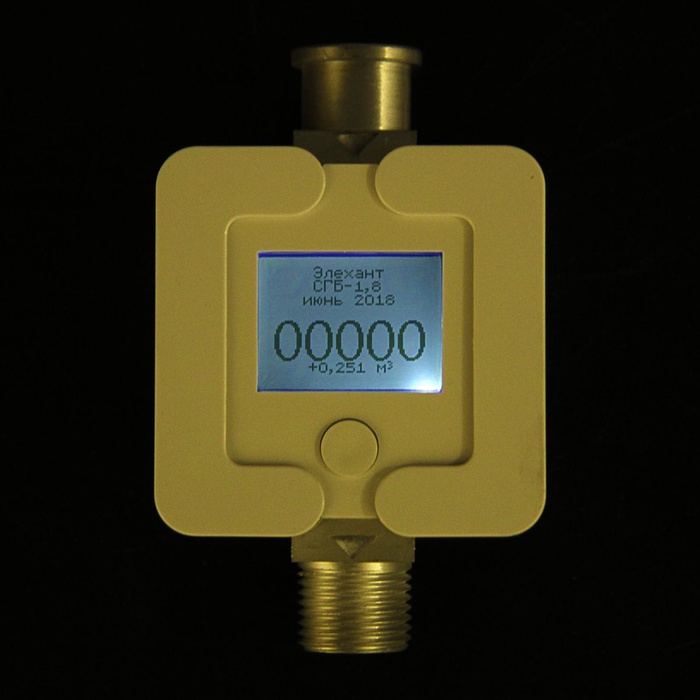

The counter has a reporting device on the liquid crystal indicator.

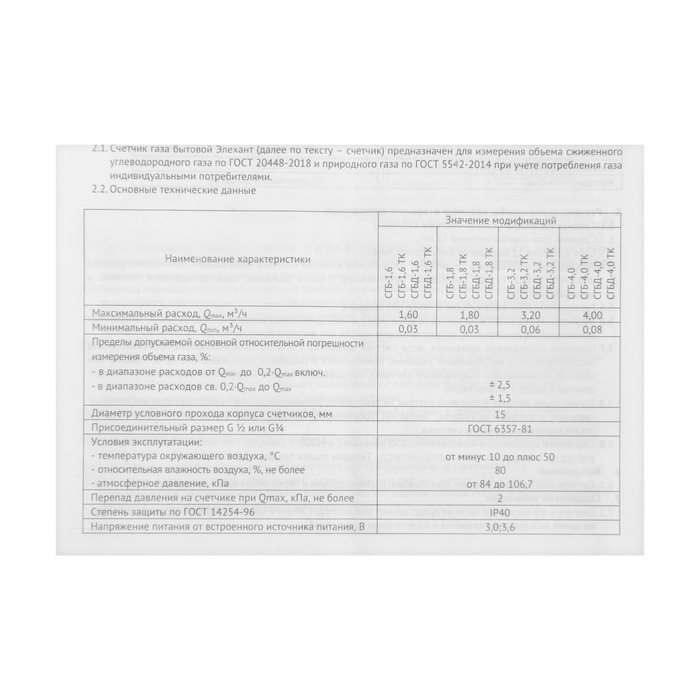

metrological and technical characteristics:

• the diameter of the conditional passage - 15 mm;
• the range of measured expenses from 0.03 to 1, 8 m3/h;
• The smallest division of the reporting device is 0.001 m3;
• power voltage - 3.6 V;
• Gabarit dimensions - not more than 110x66x55 mm ;
• The mass is not more than 0.3 kg.
• The average service life is at least 24 years.
• Average development for refusal - at least 120,000 hours.

Operating conditions:

• Environmental temperature from -10 to +50 ° C;
• relative humidity from 30 to 80 % ;
• atmospheric pressure from 84 to 106.7 kPa.

Complete:

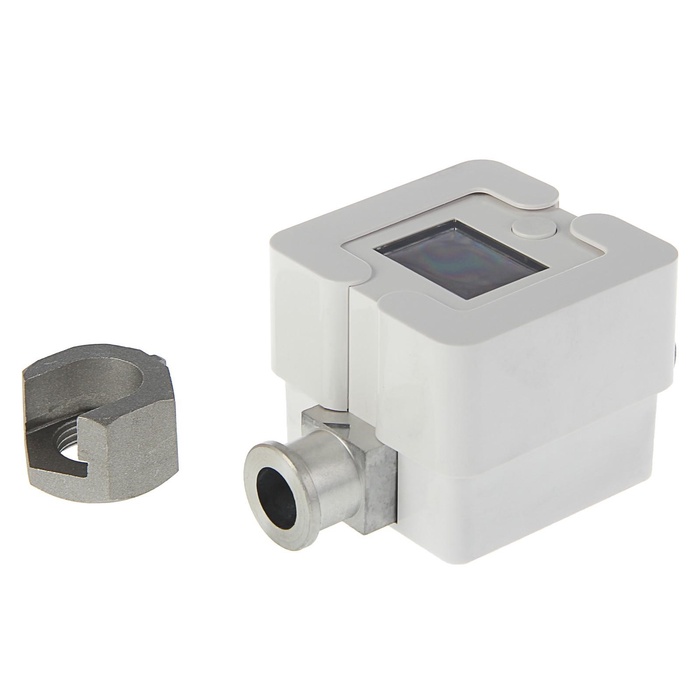

• Corps with a jet generator located in it, piezoeolent and input/output annexing pipes;
• electronic unit;
• power element;
• Two plastic linings.
