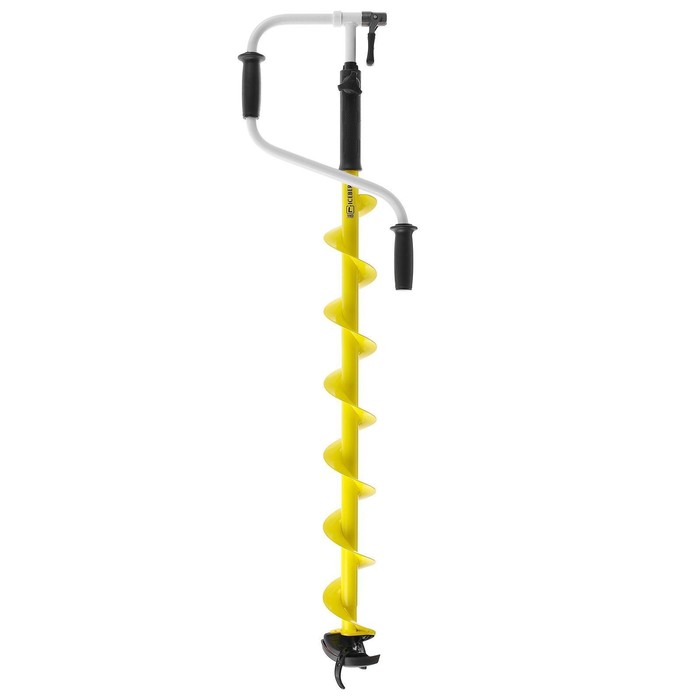

Iceberg-Siberia 110L-1600 V3.0, left rotation

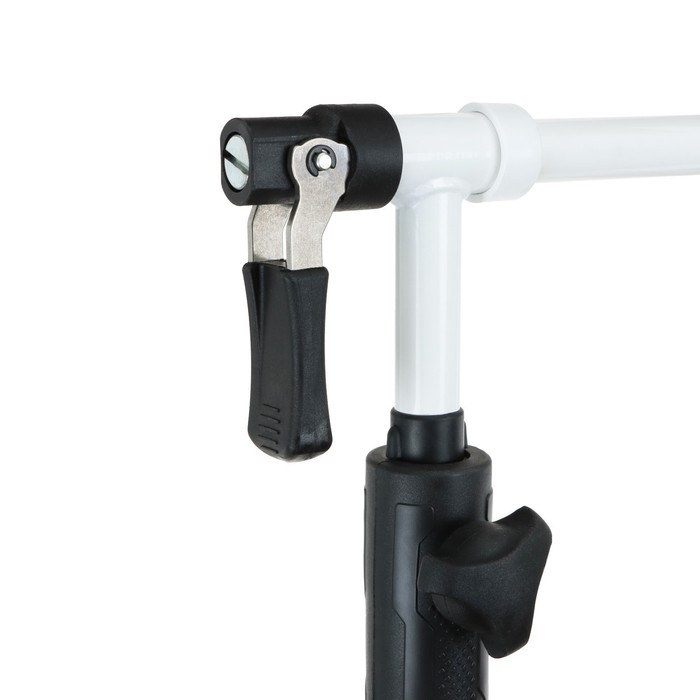

Iceberg-EURO 130 (L) V3.0 with left-wing rotation perfectly copes with drilling dry and wet ice. A new patented mechanism for folding the handle guarantees the absence of backlash, helps with one movement to bring icebour to working condition. This model is made with a reliable whole screw. An increase in the step of the turns to 150 mm provides the rapid release of the hole from the shoga, reduces the effort of the fisherman and prevents the junction of the screw. The telescopic insert-approval allows you to adjust the height of the ice discovery under the thickness of the ice and the growth of the fisherman. The maximum drilling without the use of extension cords reaches 1.3 m. For deeper holes, it is possible to increase the depth of drilling by adding an extension cord of the Usha-400 to the screw. Perhaps drilling with a screwdriver with a torque of 100-120 nm using a reverse. To join the screwdriver, the ASH-05 adapter will be additionally needed to this screw.

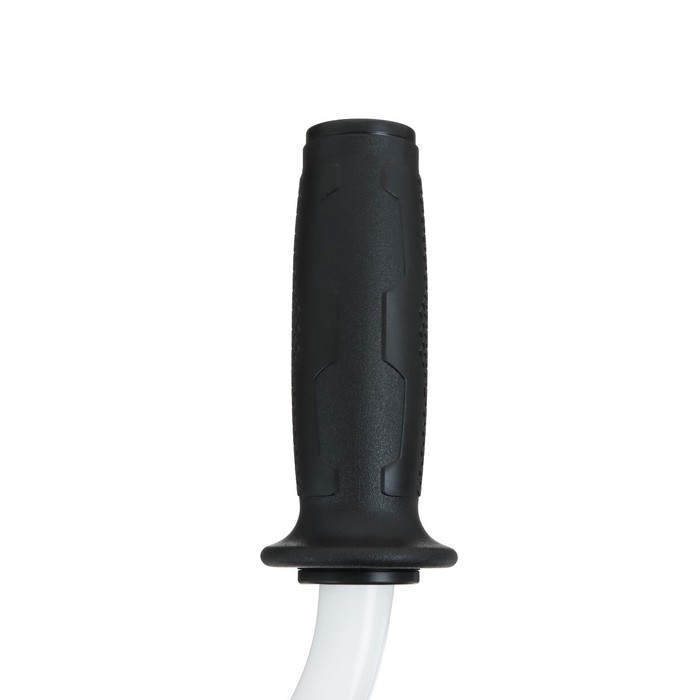

non-slip “warm” handles provide comfort when drilling. The upper and lower handles of the ice discovery are shifted relative to the axis of the screw. This arrangement allows you to rotate the icebow at the same time with two hands. The storm move is smooth, brings without effort. Reliable polymer coating can withstand sharp temperature fluctuations and strong mechanical loads. The cladding of the telescopic part prevents the fruits of the tube in the screw when using a drill in severe frost. A “warm” nozzle for carrying an ice discovery is made on the screw.

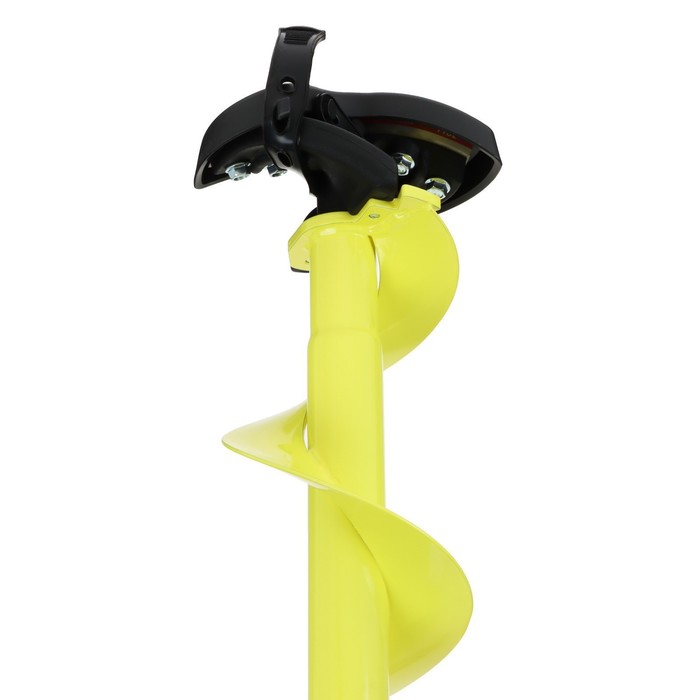

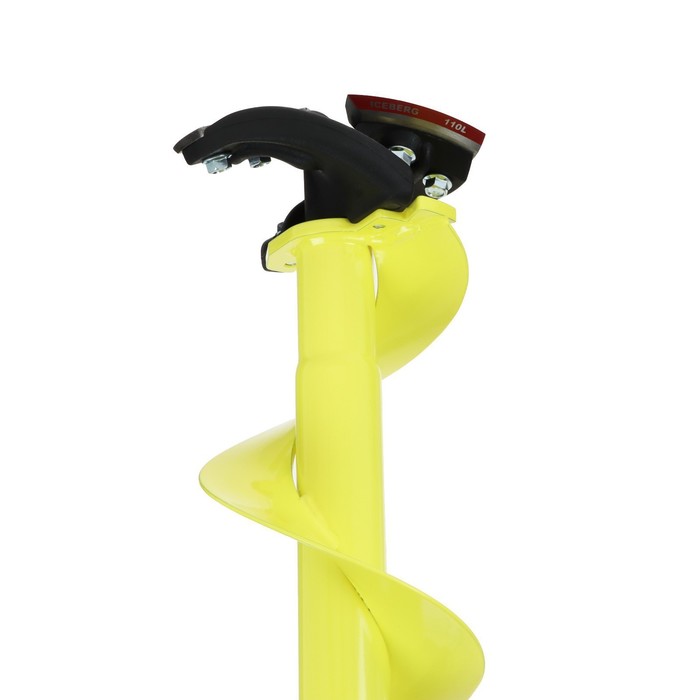

the removable head is made of durable composite material, therefore it withstands heavy loads and guarantees a constant cutting angle to the knives. Radius knives made of high -quality steel are suitable for working with all types of ice, providing light drilling.

when using the electric motor with ice blocks "Iceberg - Siberia 110 (L) -1600" we recommend using knives for wet ice to avoid slipping when drilling.

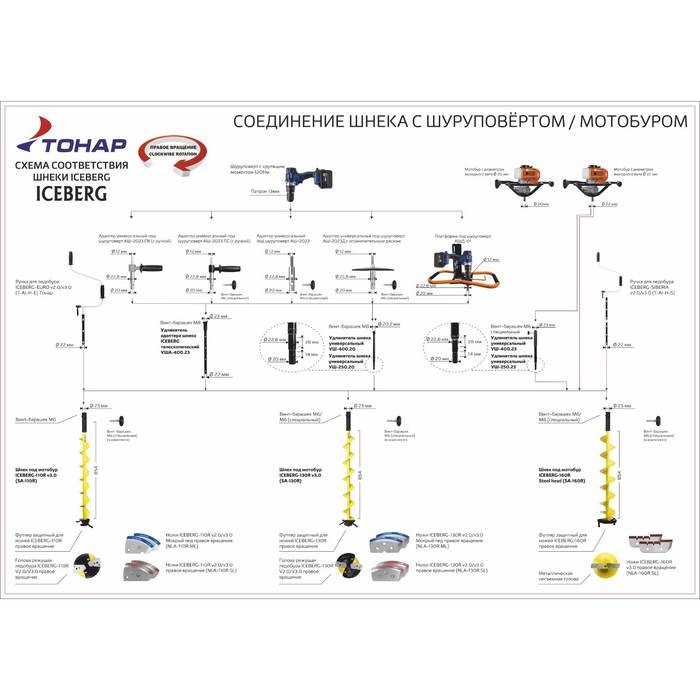

The connection of adapters under Shurovyrt is carried out using a special step-barashka screw M6. Both lambs are complete with the Iceberg v3.0 ice shoes

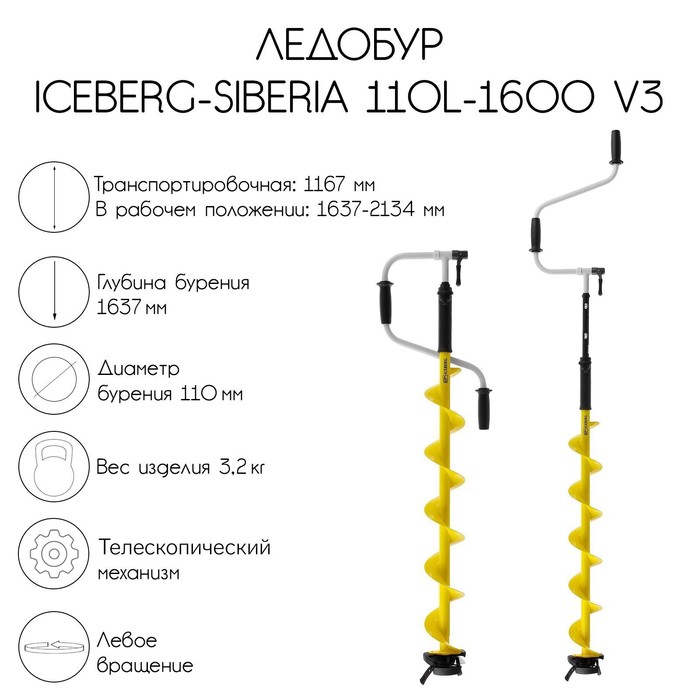

Technical characteristics

• left rotation.
• Diameter of drilling: 110 ± 5 mm. << /li>
• drilling depth: up to 1637 mm.
• The length in the working position: 1634 - 2134 mm.
• Shnek length: 854 mm.
• Length in the transport position: 1167 mm.
• screw-bar (thread parameter): M6.

Supply set

• ice Collection: 1 pc. (installed on the ice drift).

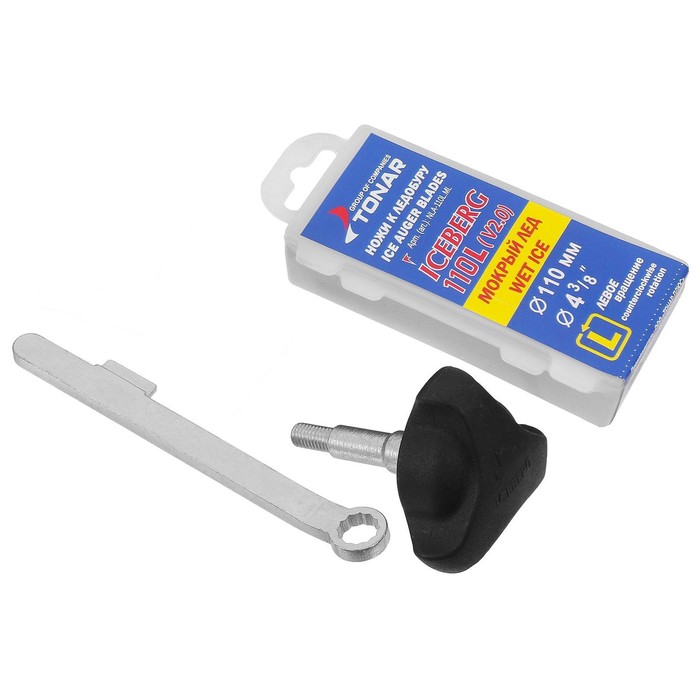

• Iceberg knives 110l v2.0 (wet ice): 1 set.
• Protective case: 1 pc. 2 pcs.
• Bolt M5X10 DIN6921: 6 pcs. (installed on the ice drift).
• M6 vint-barashka (special): 1 pc.
