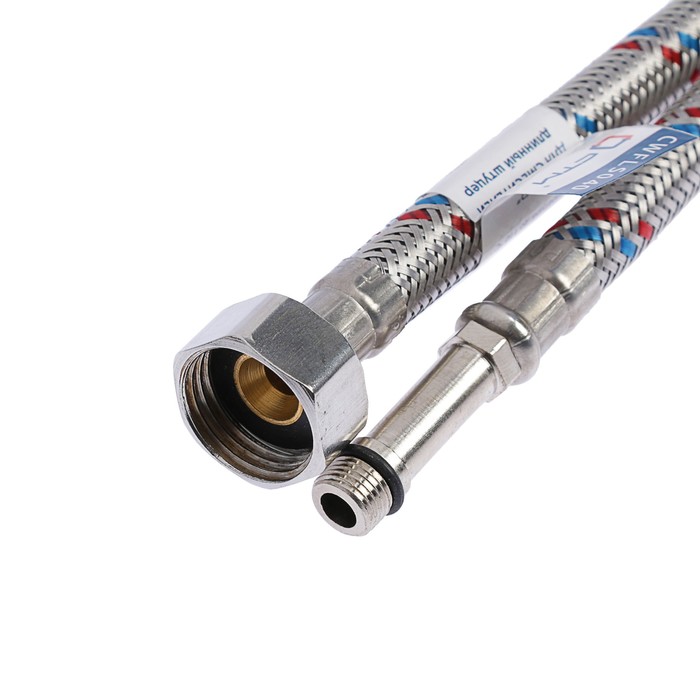

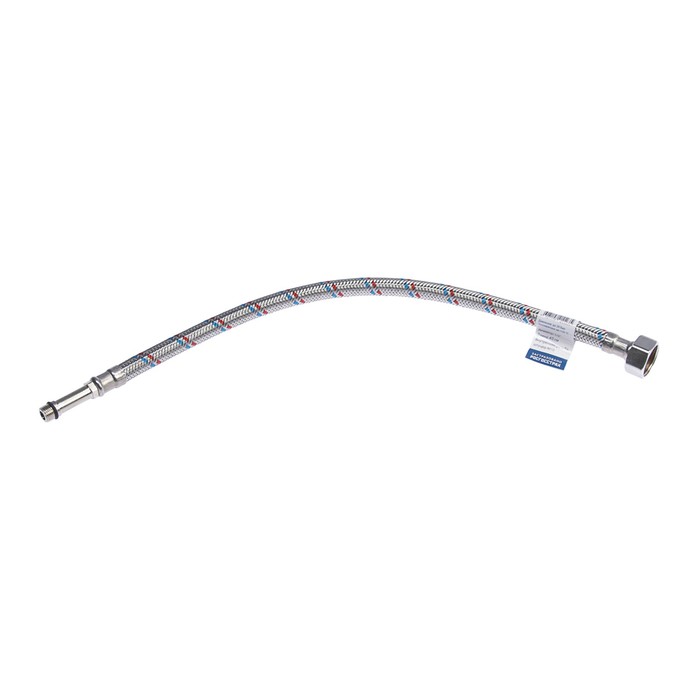

Little eyeliner "STM", M10, 40 cm, stainless steel, long fitting
$8.19
In Stock
Characteristics
A country
China
Color
Silver
Connection diameter
1/2"
External diameter, mm
12.5
Inner diameter, mm
8.5
The eyeliner with a long fitting in a steel braid is designed to connect the mixer to the pipeline.
Flexible eyeliner is woven from 7 stainless steel threads with a thickness of 0.2 mm. The internal hose (tube) is made of special non -toxic rubber. The internal diameter of the hose is 8.5 mm ± 0.5 mm. The external diameter of the hose is 12.5 mm ± 0.5 mm.
When installing a flexible eyeliner, the end reinforcement must be delayed with a force of not more than 4 n ∙ m.
The service life is 10 years.
| Characteristics | |
| A country | China |
| Color | Silver |
| Connection diameter | 1/2" |
| External diameter, mm | 12.5 |
| Inner diameter, mm | 8.5 |
| Length, see | 40 |
| Max. The moment of tightening of the end reinforcement, n/m | 0.4 |
| Nominal stream, l/min | 35 |
| Operating temperature, C ° | +75 ° C. |
| Radius of curvature, mm | 60 |
| Type of connection | For mixers |
| Warranty period, months. | 24 |
| Working pressure, bar | 15 |
Write a review
There are no reviews for this product.
Tags: Flexible eyeliner for the mixer (construction and repair)
