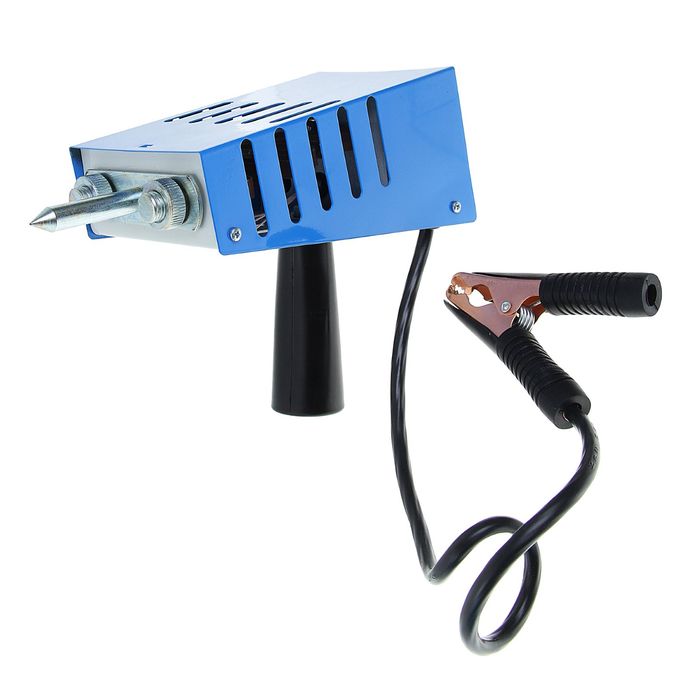

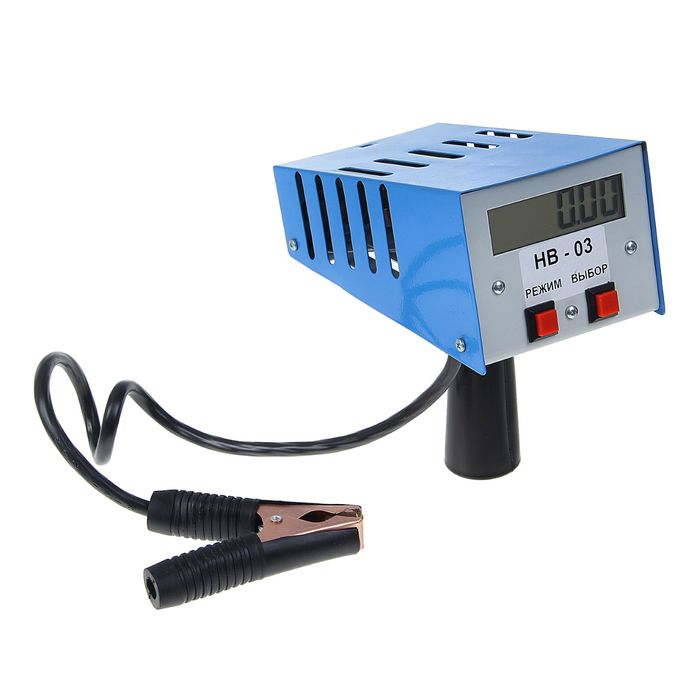

Load fork for the battery NV-03, 12 V

The load fork for the NV-03 battery determines the degree of loading and serviceability of the battery with a voltage of 12 V. You can also check the side network generator: this model has a built-in digital voltmeter. The case has a coating resistant to corrosion, which guarantees a long service life. Spiral's communication makes the work of the device simple and light.

Characteristics:

• Nominal voltage AB: 12 ​​c.
• capacity of tested batteries: 15–240 a ·ч.
• Диапазон вольтметра: 0–15 В.
• Точность: 0,5 %.
• Номинальное сопротивление: 2 спирали по 0,1 Ом.
• load current: 100 a (200 a).
• Working range: from –20 to +60 ° C.
• Connection of one spiral - load current of 100 A.
• Connection of two spirals - a load current of 200 A.
• Measurement time: with connected spirals - no more than 9 s; The spirals are disconnected-not limited.

with the loading fork NV-03 you will always be aware of the battery charge!
